SECTION 4
MAINTENANCE
4. Ensure that the air fingers and blank plates fit tightly
together in the channel with edges interlocked and no
space between edges, as shown in Figure 4-15.

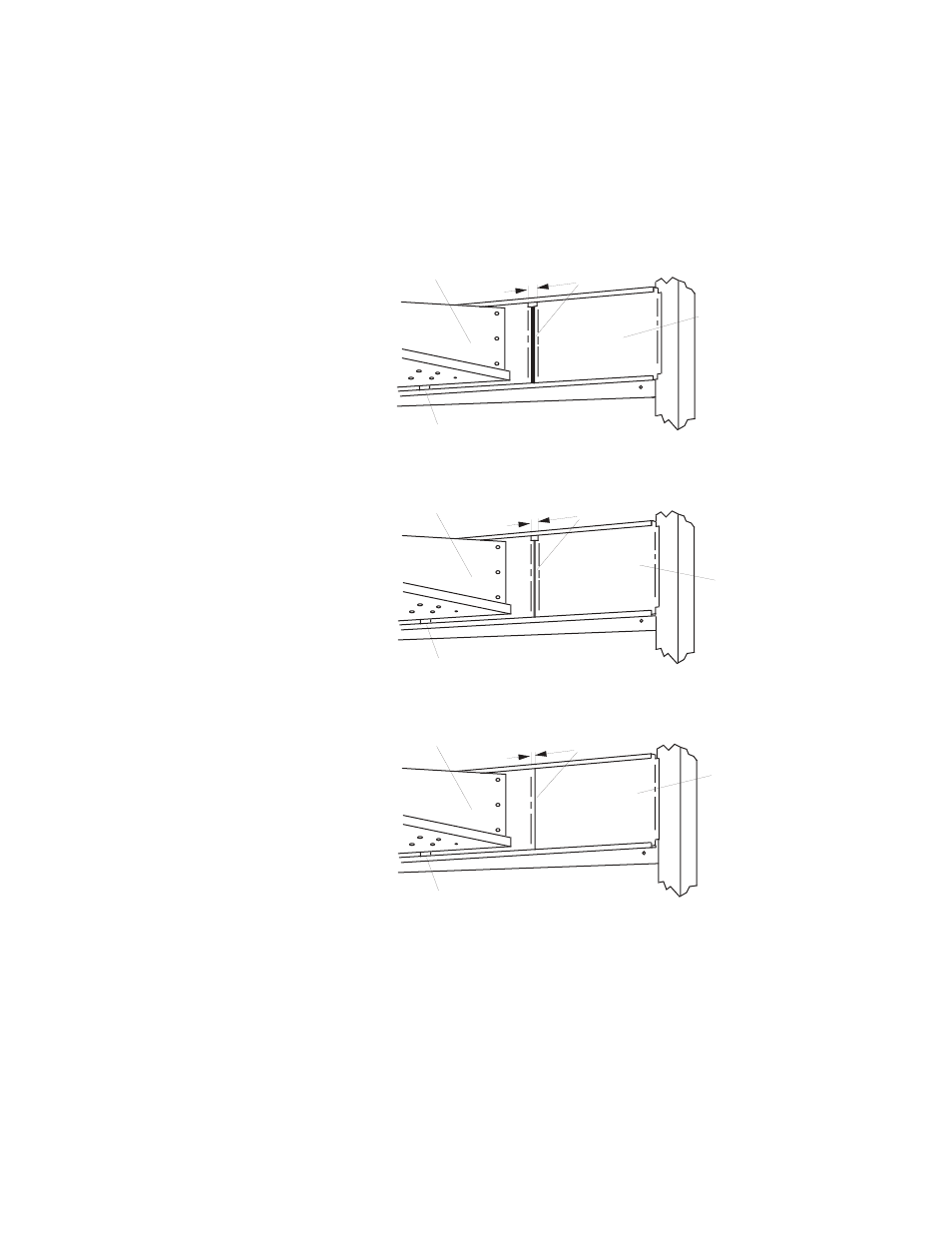

Figure 4-15.
Air Finger Rein-
stallation Details
Top Finger
Tab on Outer Plate of Finger
(Located in Channel)
Incorrect, Too Much Space
Blank
Plate
Incorrect, Too Much Space
Blank
Plate
Top Finger
Top Finger
Blank
Plate
Correct-Edges Overlap Completely
Tab on Outer Plate of Finger
(Located in Channel)
Tab on Outer Plate of Finger
(Located in Channel)
