Spdif connector: jsp1, Chapter 2 2-22 – MSI G52-MA00628 User Manual
Page 37
Chapter 2
2-22

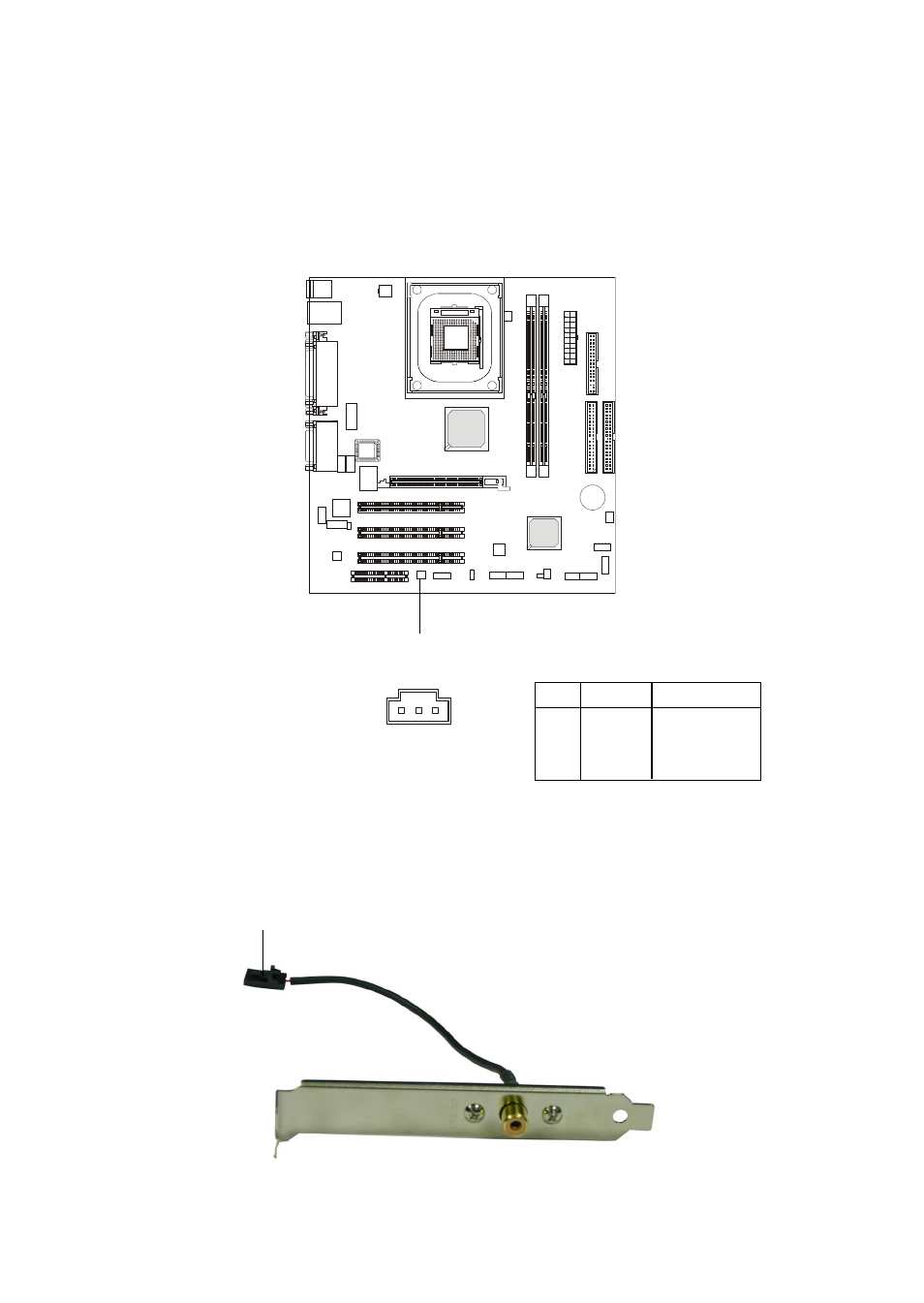

SPDIF Connector: JSP1
The connector is used to connect SPDIF (Sony & Philips Digital Inter-
connect Format) interface for digital audio transmission.
JSP1
1
3
Connected to JSP1
S
P
D
I
F
The JSP1 supports SPDIF output only and can be con-
nected to an external SPDIF Bracket for digital audio
transmission.
JSP1 Pin Definition
PIN
SIGNAL
DESCRIPTION
1
VCC
VCC5V
2
SPDIF
S/PDIF Output
3
GND
Ground
