Hardware Setup
2-3
Installing the CPU Fan
As processor technology pushes to faster speeds and higher
performance, thermal management becomes increasingly important. To dissi-
pate heat, you need to attach the CPU cooling fan and heatsink on top of the
CPU. Follow the instructions below to install the Heatsink/Fan:

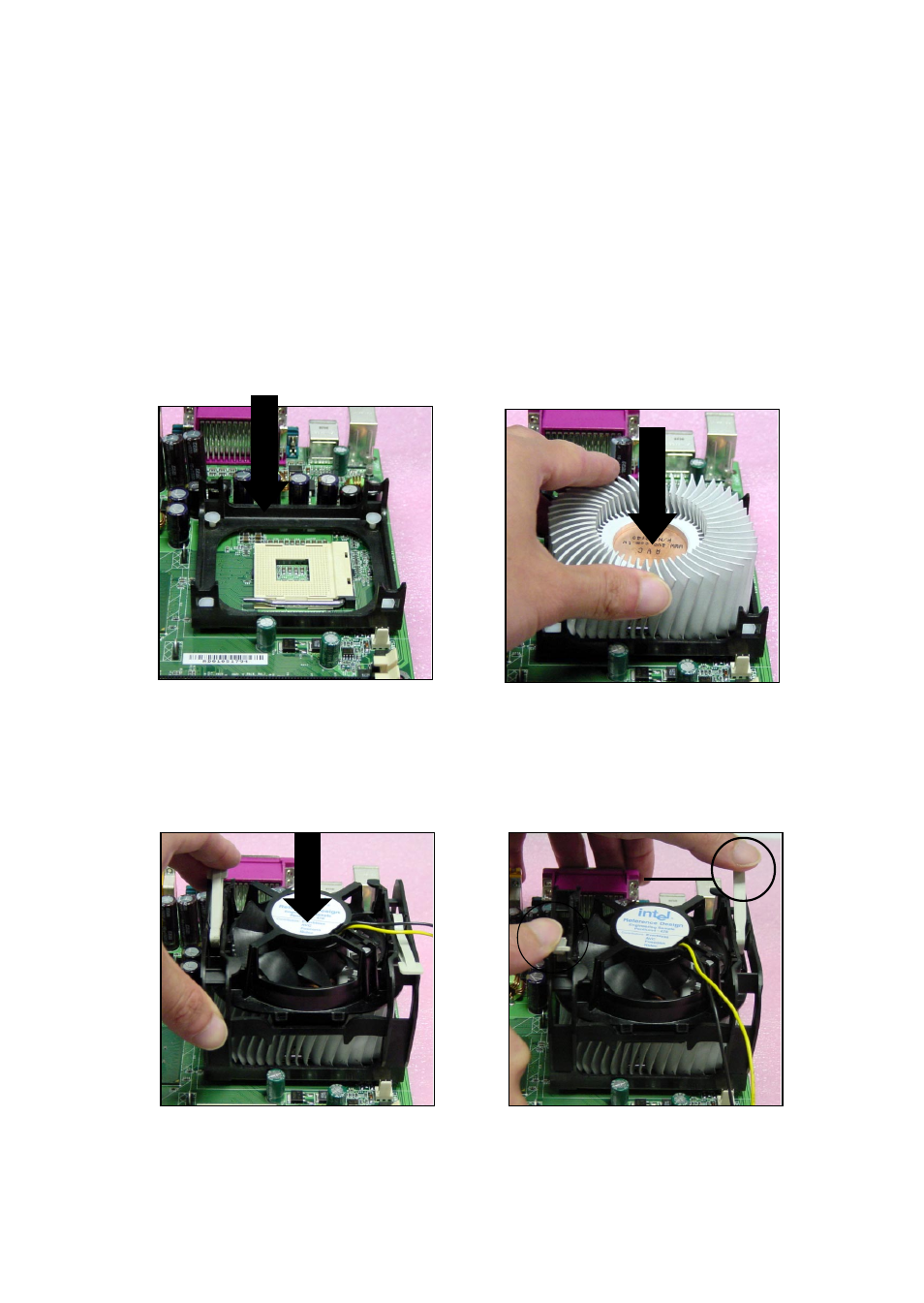

2.
Position the heatsink onto the reten-
tion mechanism.
1.
Locate the CPU and its retention
mechanism on the motherboard.
3.
Mount the fan on top of the heatsink.
Press down the fan until its four clips
get wedged in the holes of the reten-
tion mechanism.
4.
Press the two levers down to fasten
the fan. Each lever can be pressed
down in only ONE direction.
retention mechanism
levers
