McIntosh MVP851 - Manual (Page 9)

9

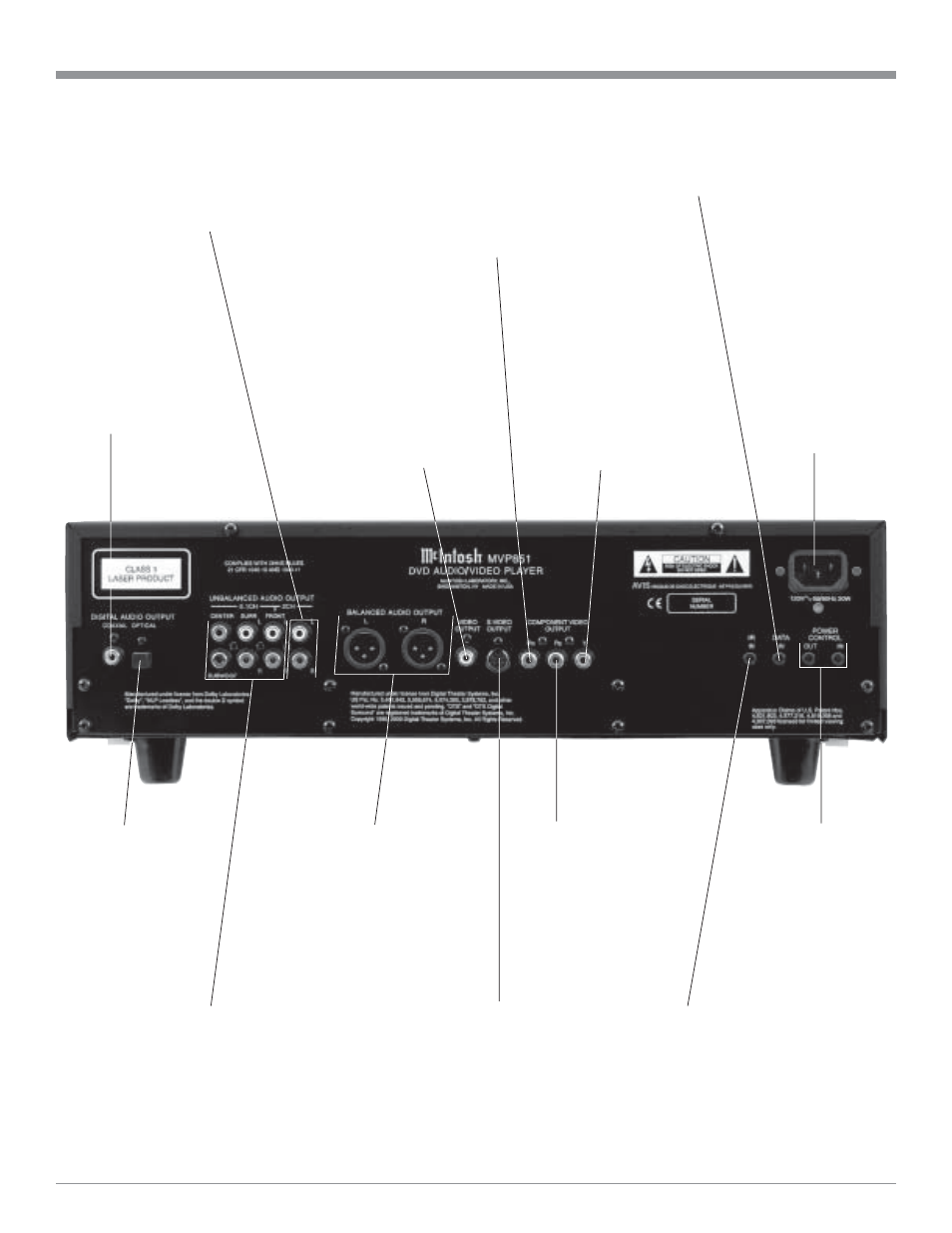

MVP851 Rear Panel Connections
Connect the MVP851
power cord to a live AC
outlet. Refer to infor-
mation on the back
panel of your MVP851
to determine the correct
voltage for your unit
POWER CONTROL IN
receives turn-on signals
from a McIntosh com-
ponent and POWER
CONTROL OUT sends
turn-on signals on to
another McIntosh Com-
ponent DIGITAL OPTI-
CAL OUTPUT
sends signals to a
Control Center
with a D/A Con-
verter
DATA IN receives
operating data from
a McIntosh Control
Center
DIGITAL COAXIAL
OUTPUT sends signals
to a Control Center with
a D/A Converter VIDEO OUTPUT
supplies video sig-
nals to connect to a
Composite Input of
an A/V Control Cen-
ter or other video
component
S-VIDEO OUTPUT sup-
plies video signals to con-
nect to an S Input of an A/V
Control Center or other
video component UNBALANCED AUDIO
OUTPUT supplies Six
Channels of Analog Audio
and connects to the External
Input of an A/V Control
Center
Y OUTPUT supplies
the Luminance Video
Signal and connects to
the Y Component Input
of the TV/Monitor or
other video component
P
B
OUTPUT supplies the
Blue minus Luminance
Video Signal and connects to
the P
B
Component Input of
the TV/Monitor or other
video component
IR INput for
connecting an
IR Receiver
BALANCED AUDIO
OUTPUTs contain analog
stereo signals to connect
to Balanced Inputs of
other components
UNBALANCED AUDIO
OUTPUT supplies Two
Channels of Analog Audio
and connects to the Analog
Input of an A/V Control
Center P
R
OUTPUT supplies the
Red minus Luminance
Video Signal and connects
to the P
R
Component Input
of the TV/Monitor or other
video component
