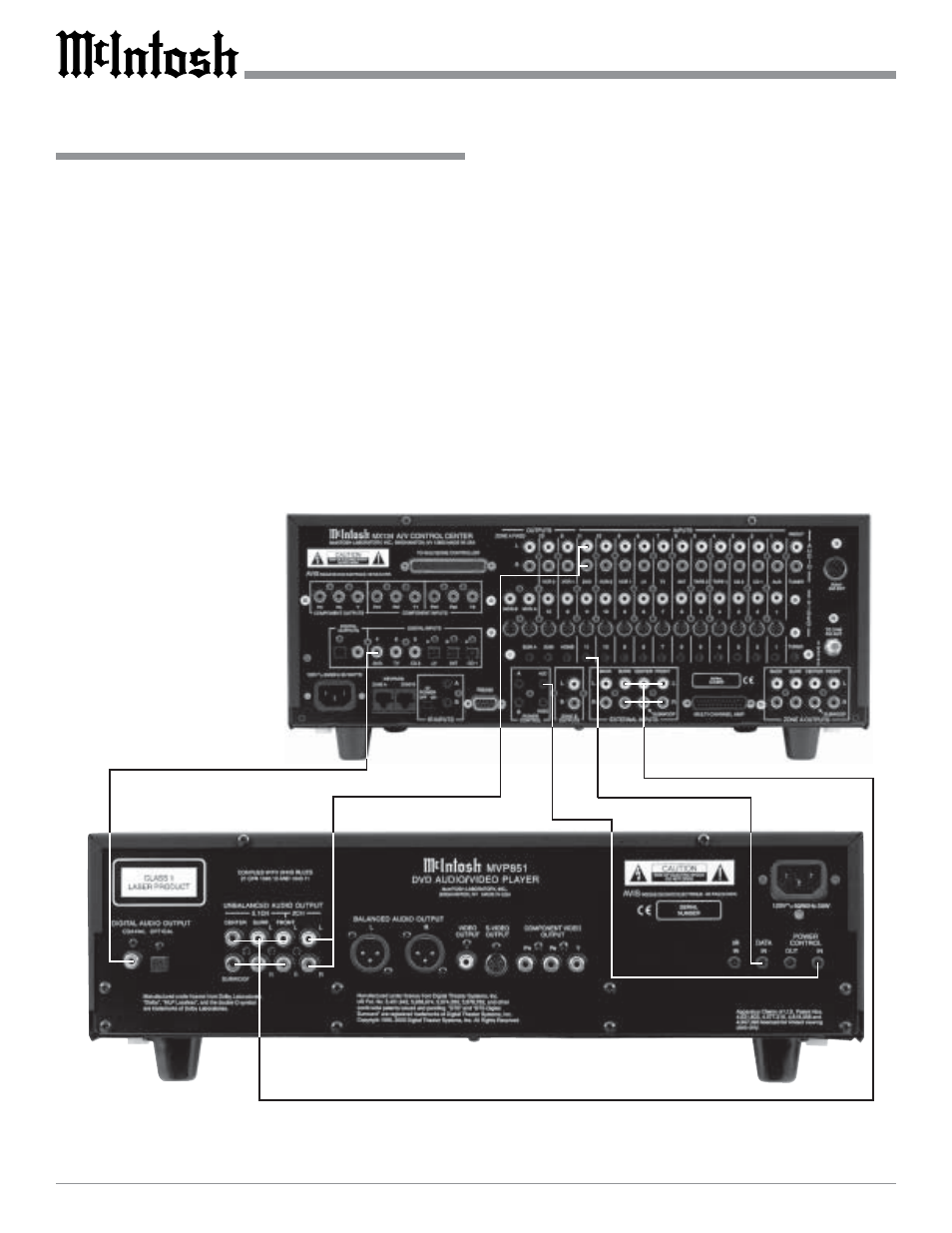

How to Connect Control, Analog and Digital Audio
1. Connect a Power Control Cable from the MVP851
POWER CONTROL IN to the POWER CONTROL
ACC Output jack of a McIntosh A/V Control Center.
2. Connect a Data Cable from the MVP851 DATA IN
jack to the DVD DATA (11) jack on the McIntosh A/V
Control Center.
3. Connect a Coaxial Cable from the MVP851 COAXIAL
DIGITAL OUT to the DVD Coaxial DIGITAL INPUT
(F) of a McIntosh A/V Control Center.
Note: An optional connecting method is to use an optical
cable from the MVP851 OPTICAL DIGITAL
OUTPUT to the Optical Digital Input of a
McIntosh A/V Control Center.
How to Connect Control, Analog and Digital
Audio
McIntosh A/V Control Center
4. Connect Audio Cables from the MVP851 L and R AU-
DIO OUTPUTS 2CH to the DVD AUDIO INPUTS on
a McIntosh A/V Control Center.
5. Connect Audio Cables from the MVP851 AUDIO
OUTPUTS 5.1CH (all six channels) to the External
AUDIO INPUTS on a McIntosh A/V Control Center.
