30 59D1015
PLACING THE DECORATIVE ROCK
DO NOT sprinkle volcanic rock on the logs, around the pilot, or on or near burners. This
may cause sooting. Place volcanic rock only on the floor of the fireplace.
During initial operation of the new heater, burning logs will give off a paper burning
smell and orange flames will be present. Simply open the windows for a few hours to
vent the odor.
CAUTION
FLAME APPEARANCE
Flames from the pilot, front and rear burner should be visually checked as soon as the heater is installed.
In addition, periodically check the flames visually during operation.

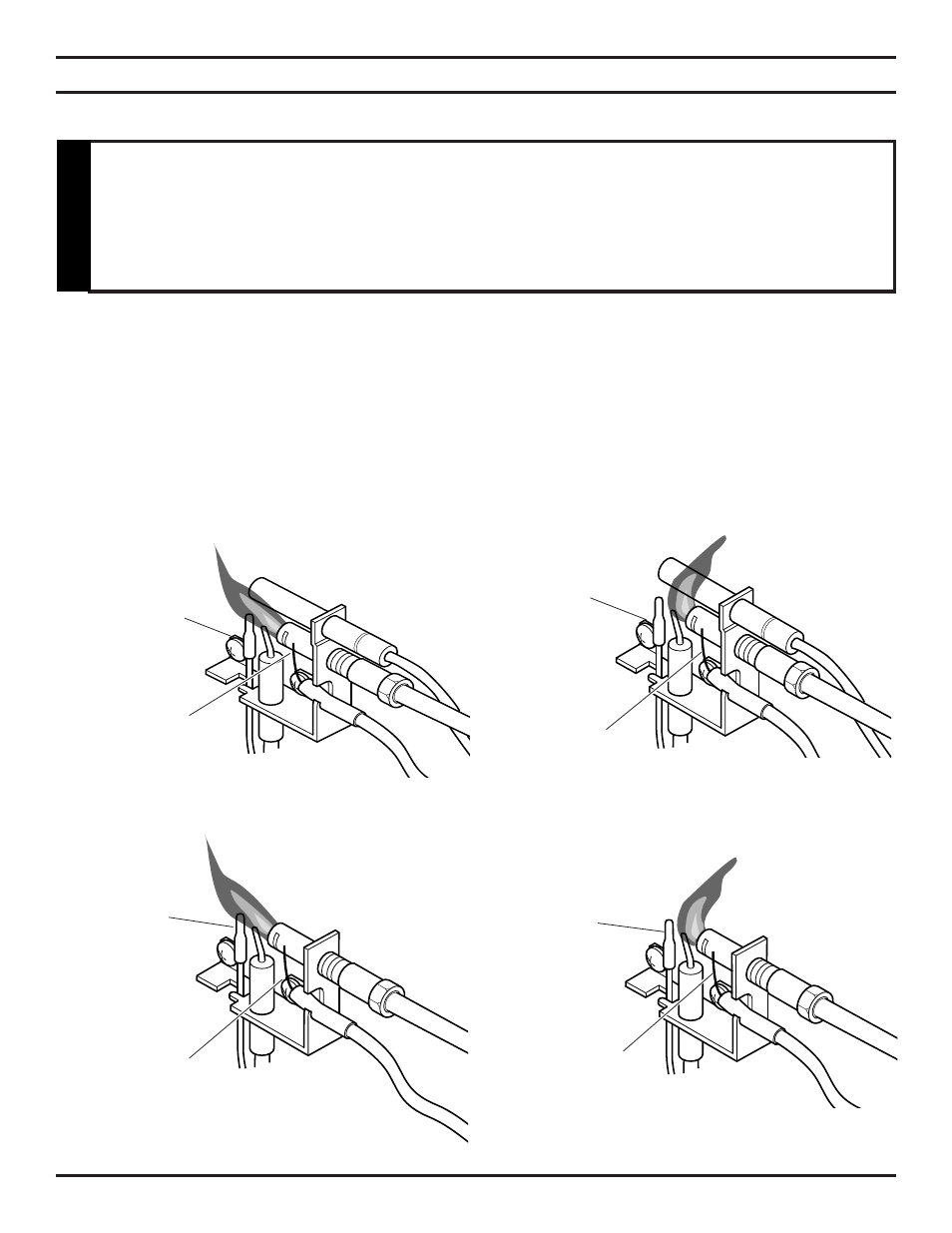

CHECKING THE PILOT FLAME
The pilot flame must always be present when the heater is in operation.
It should just touch the top of the ther-
mocouple tip for natural. See Figures 38 and 40 for correct pilot flame.
If the pilot flame does not touch the thermocouple, then the main burner cannot function reliably. See Figures 39 and 41 for
incorrect shape of pilot flame.
MILLI-VOLT CONTROL AND THERMOSTAT CONTROL
Figure 38 - Correct Appearance of Pilot Flame Figure 39 - Incorrect Appearance of Pilot Flame
MANUAL CONTROL
Figure 40 - Correct Appearance of Pilot Flame Figure 41 - Incorrect Appearance of Pilot Flame
Thermocouple
for Natural
Thermocouple
for LP
Thermocouple
for LP
Thermocouple
for Natural
Thermocouple
for Natural Thermocouple
for Natural
Thermocouple
for LP
Thermocouple
for LP
