Log placement – Monessen Hearth HVFL18 User Manual
Page 27
59D1015
27

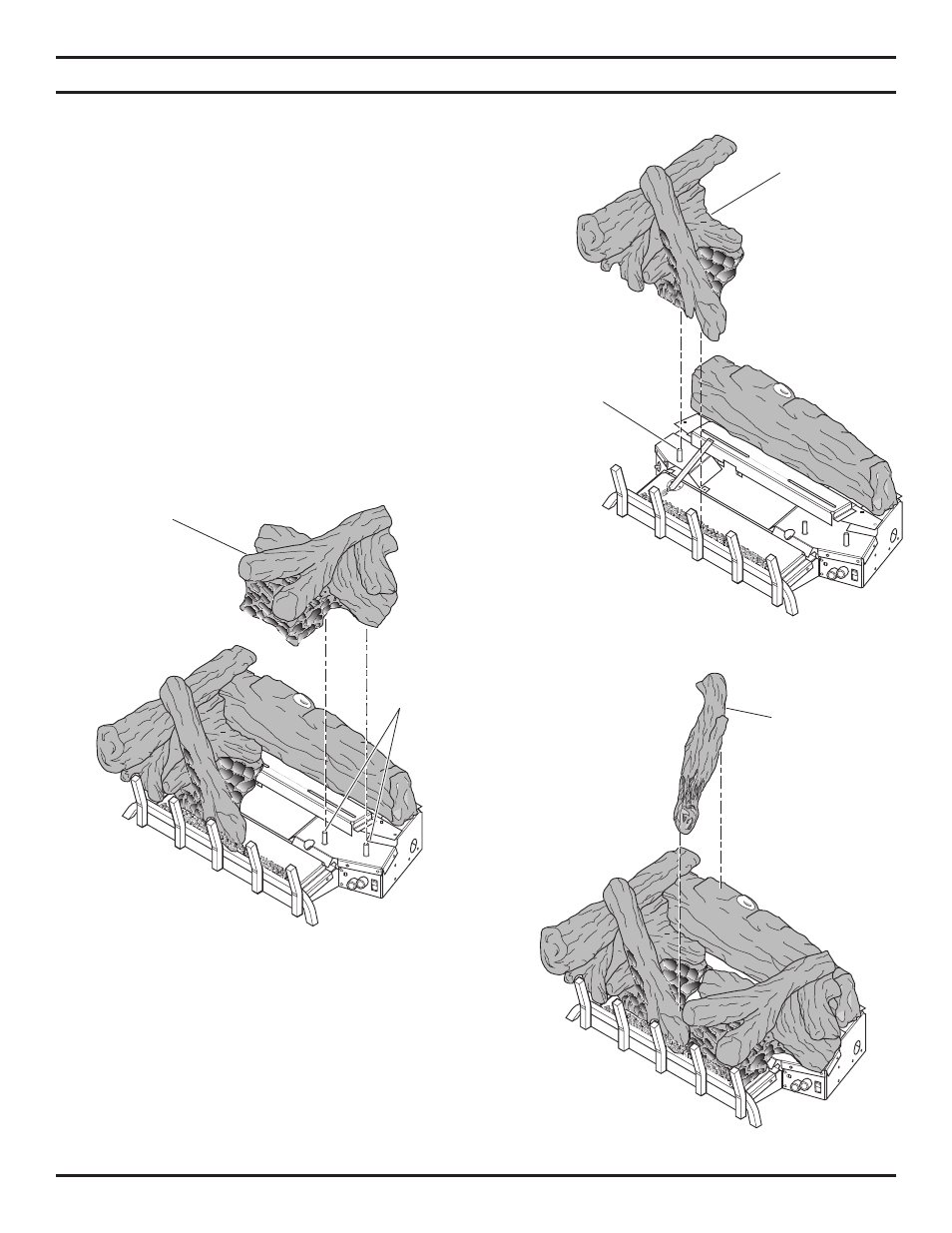

Figure 27 - Installing Left Log Cluster (#2)
Left Log
Cluster #2
Pin
2. Install left log cluster (#2) on pin located near left edge of base.
See Figure 27.
3. Install right log cluster (#3) on two pins located on right side
of base. See Figure 28.
4. Rest end of top center log (#4) on rear log. Place front end of
top center log where right and left cluster logs meet. See Figure
29.
Figure 28 - Installing Right Log Cluster (#3)
Right Log
Cluster (#3)
Pins
Figure 29 - Installing Top Center Log (#4)
Top Center
Log #4
LOG PLACEMENT
