28 59D1015
LOG PLACEMENT
INSTALLING SPLIT MAPLE LOGS ON GRATE
1. Install back log (#1) on two pins (2) located near the back of base. Check log position and stability. See Figure 30.
2. Install right bottom log (#2) on two (2) pins located on right side of base. See Figure 31.
3. Install left bottom log (#3) on pin located on right side of base. See Figure 32.
4. Lay back end of center top log (#4) on the center of back log. Position front end of center top log (#6) on protrusion of
bottom left log. See Figure 33.

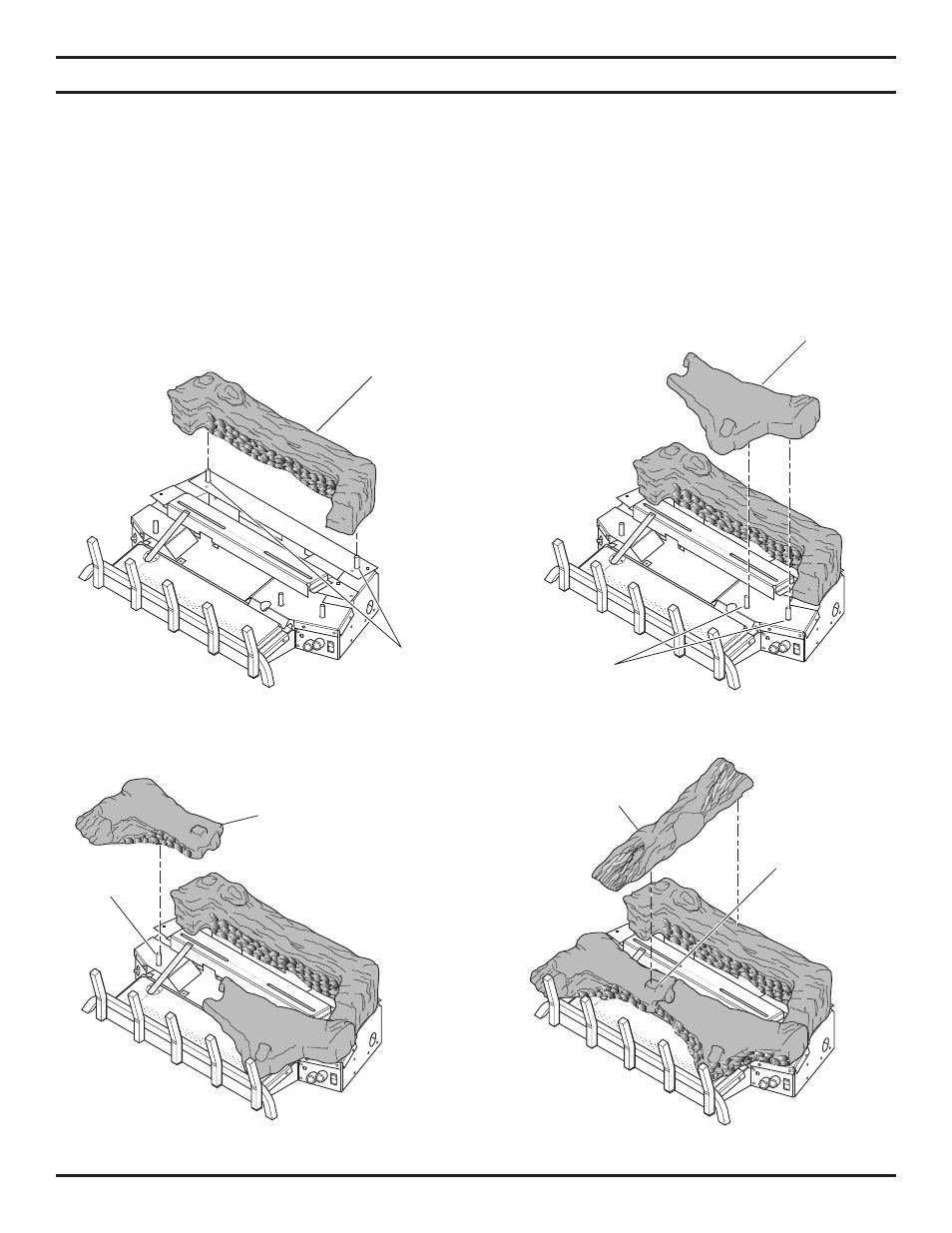

Figure 30 - Installing Back Log (#1) Figure 31 - Installing Right Bottom Log (#2)
Figure 32 - Installing Left Bottom Log (#3) Figure 33 - Installing Center Top Log (#4)
Rear Log
(#1)
Pins
Right Bottom
Log (#2)
Pins
Left Bottom
Log (#3)
Pin
Top Center
Log (#4)
Protrusion
