59D1015 29
LOG PLACEMENT
5. Place front right middle log (#5) on protrusion of bottom right log. See Figure 34.
6. Position back end right rear-to-middle log (#6) on back log. Rest front end of right rear-to-middle log (#6) on front right
middle log. See Figure 35.
7. Install left-to-middle log (#7) on left end of back log and left bottom log. See Figure 36.
8. Lay back end of left front log (#8) in recessed area of middle of center top log. See Figure 37.

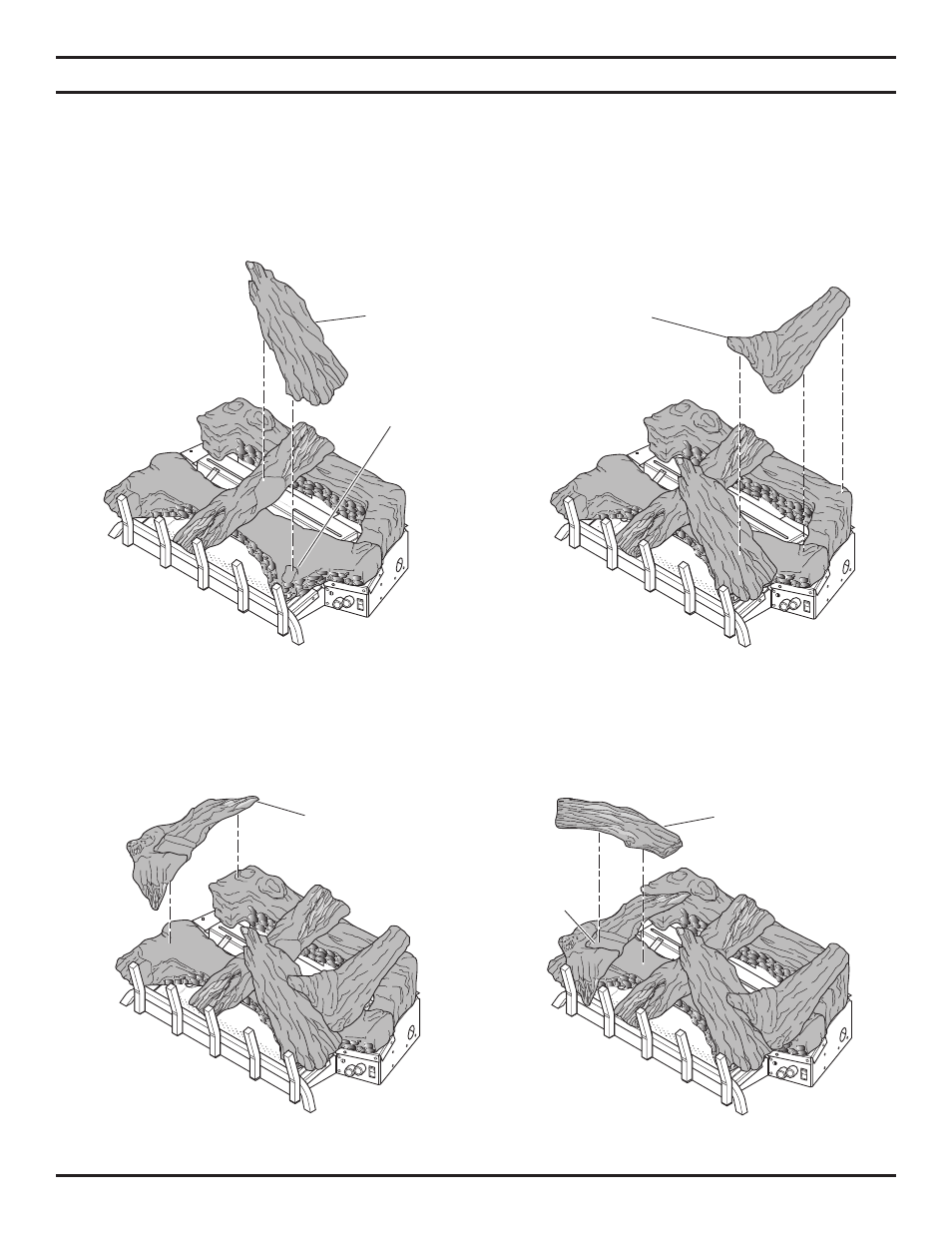

Figure 36 - Installing Right Left-To-Middle Log (#7) Figure 37 - Installing Left Front Log (#8)
Figure 34 - Installing Top Right Log (#5) Figure 35 - Installing Right Rear-To-Middle Log (#6)
Left-To-Middle
Log (#7)
Left Front
Log (#8)
Recessed
Area of
Log
Front Right
Middle Log
(#5)
Protrusion
Right
Rear-To-Middle Log
(#6)
