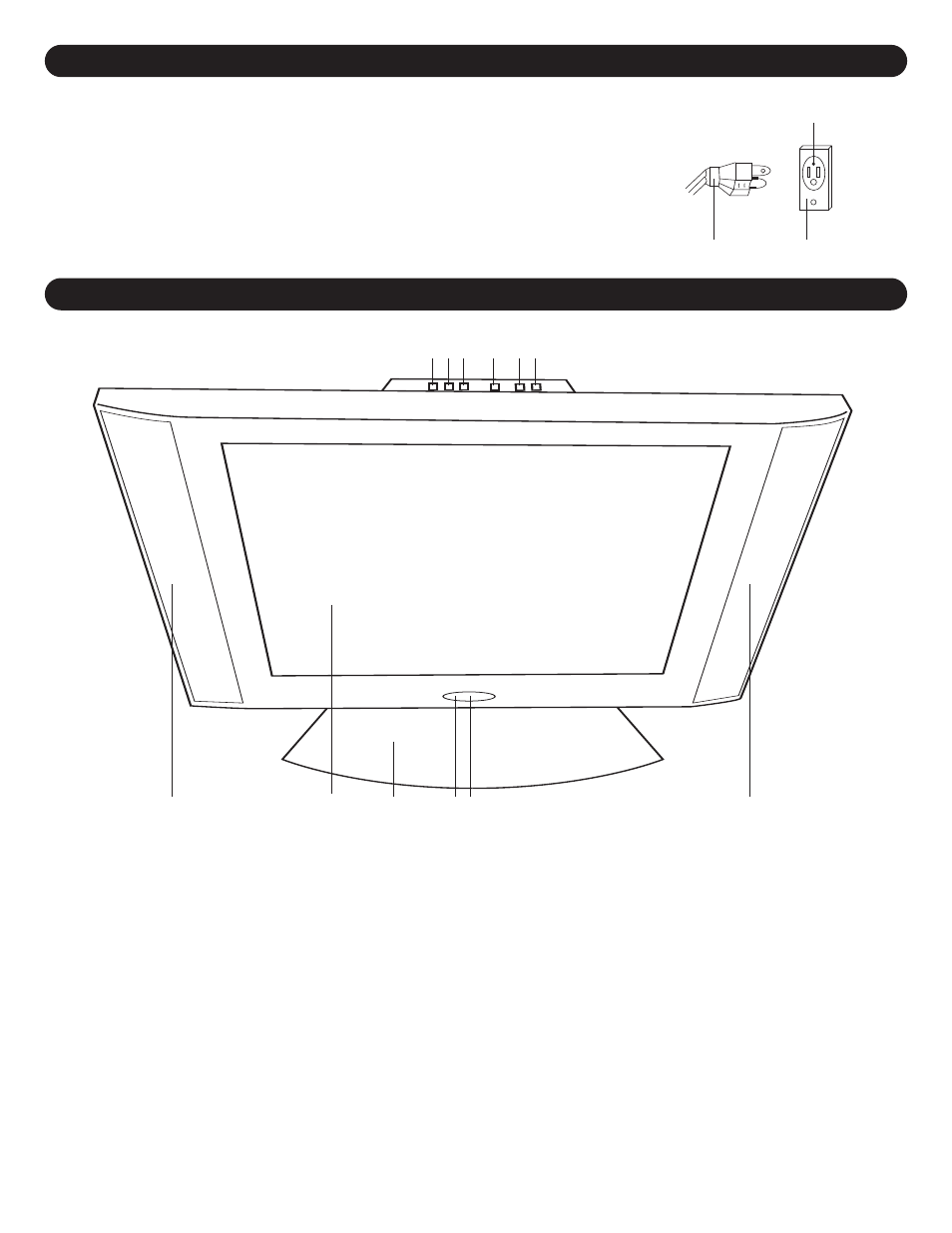

1. VOLUME Down/Navigation Left Button–Press
to lower the volume or navigate left in the setting
menu.
2. MENU/ENTER Button–Press to access the on-
screen menu or press to enter the setting.
3. VOLUME UP/Navigation Right Button–Press to
raise the volume or navigate right in the setting
menu.
4. POWER Button–Press to turn the TV on; the
POWER indicator will light orange. Press again to
turn the TV off; the POWER indicator will light red.
5. CHANNEL/NAVIGATION Down Button–Press to
select a lower-numbered channel or navigate
down in the setting menu.
6. CHANNEL/NAVIGATION Up Button–Press to
select a higher-numbered channel or navigate up
in the setting menu.
7. Left Speaker
8. Screen
9. Base Stand (AC jack at rear of base)
10. REMOTE SENSOR
11. POWER Indicator–Lights orange when the unit is
on, and lights red when the unit is off.
12. Right Speaker
5
LOCATION OF CONTROLS
POWER SOURCE
FRONT
To operate the unit using AC power, connect the AC adapter (included) to the 12V IN
jack DC 12V IN jack (z) on the rear of the unit. Connect the AC cord to the
adapter and connect the other end to a wall outlet having 120V AC, 60Hz only.
NOTE: The AC adapter is located at the rear of the base stand.
3-pronged
Receptacle
Receptacle
Box Cover
3-pronged
plug
When using a 3-pronged plug
