12

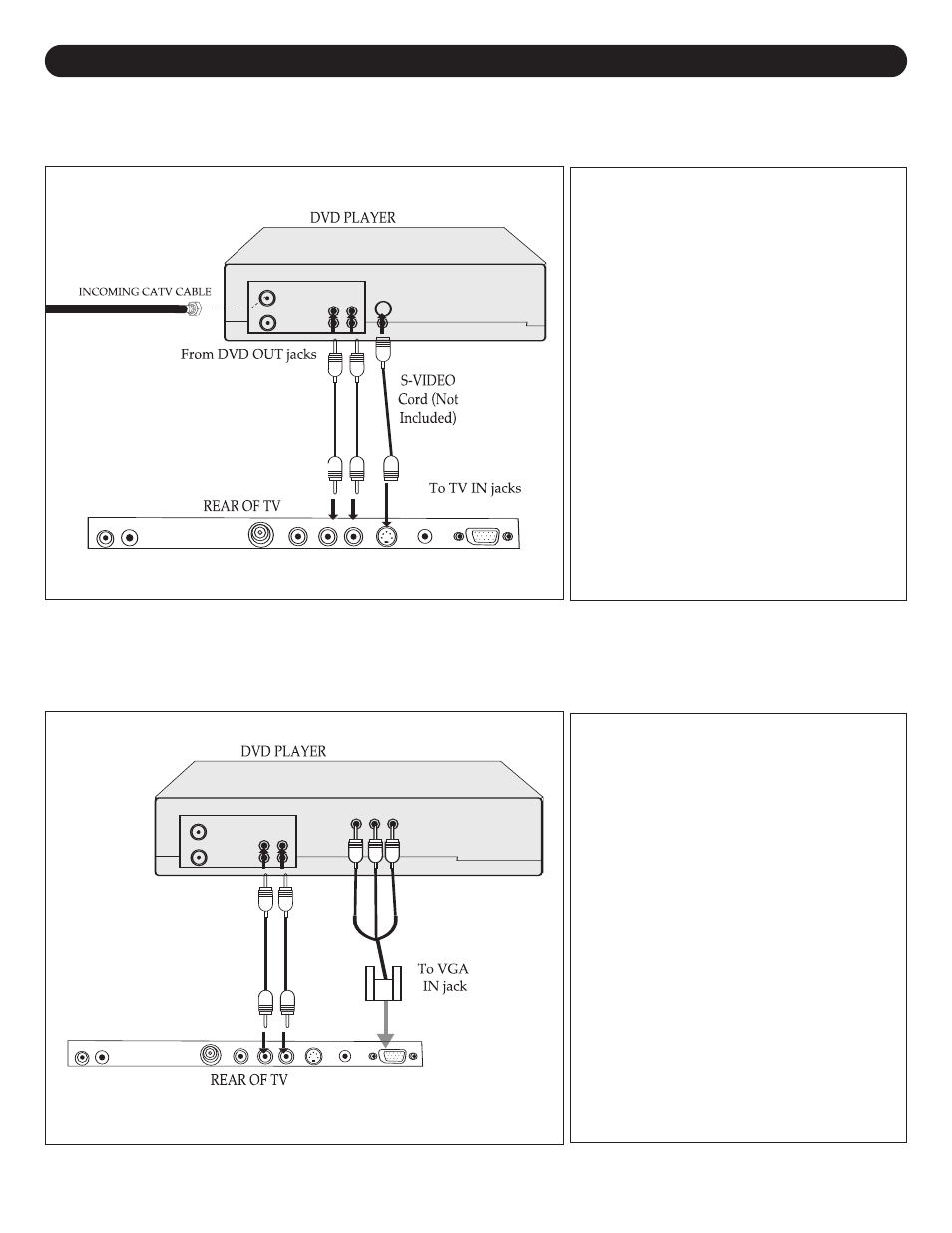

CONNECTION USING S-VIDEO CABLE:
Follow the instructions below to connect a DVD player to your television using the S-Video cable. (CABLES NOT INCLUDED.)
1. Connect the left and right audio cable from
the DVD’s Audio OUT jacks to the TV’s
audio left and right AUDIO IN jacks.
2. Connect the DVD’s S-VIDEO OUT jack to
the TV’s S-VIDEO IN jack.
3. Press the TV/VIDEO button until S-Video
appears on the TV screen and press PLAY
on the DVD to watch the DVD.
Audio cords
DVD CONNECTIONS (CONTINUED)
CONNECTION USING “VGA TO COMPONENT” CABLE:
Follow the instructions below to connect a DVD player to your television using "VGA to COMPONENT” Cable (CABLES NOT
INCLUDED.)
1. Connect the left and right audio cable from
the DVD's Audio OUT jacks to the TV's
audio left and right AUDIO IN jacks.
2. Connect the "VGA to Component” cable
(not included) from the DVD's Y,Cr,Cb OUT
jacks to the TV's VGA IN jack as shown.
3. Press the TV/VIDEO button until CVI
appears on the TV screen and press PLAY
on the DVD player to watch a DVD.
NOTE: Connecting the DVD player to the TV
using the “VGA to Component” cable will
provide the highest quality picture. Connecting
using an S-Video cable will provide the next
highest quality picture, followed by standard
Audio/Video cable connection.
Audio cords
VGA to
Component Cable
From AUDIO OUT jacks
To AUDIO IN jacks To VGA IN Jack
From Component
VIDEO OUT jacks
