SMART IP LINK
30. Remote Console Settings
From the IP Link Home page click . The Remote Console Settings
window appears. See Figure 14.

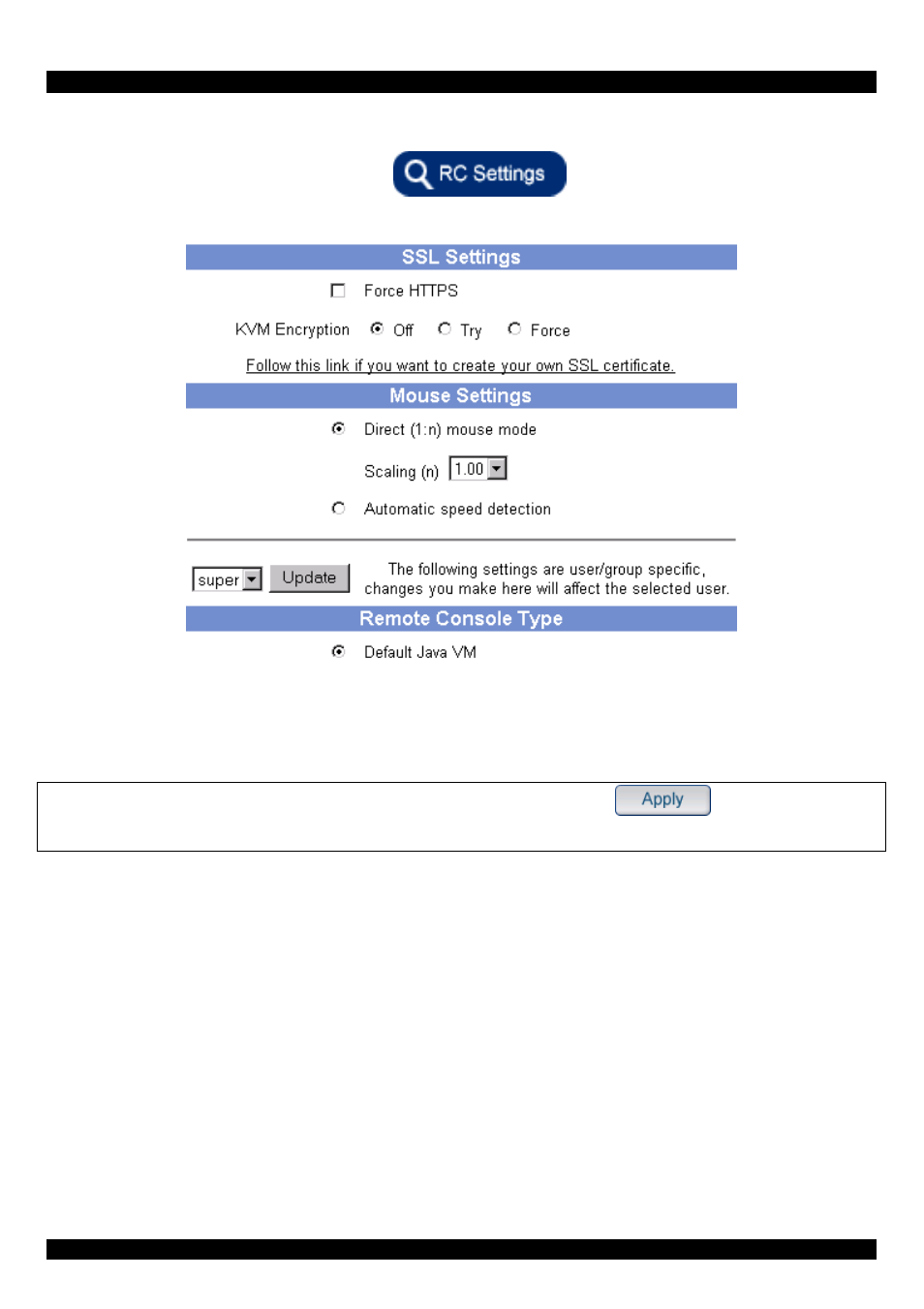

Figure 14 The Remote Console Settings
The settings and their functions are now explained. All settings are user specific.
NOTE! For any of the changes below to take effect, click at the bottom of
the page.
31. SSL settings
Force HTTPS - Access the Web front-end only using an HTTPS connection. IP
Link won't listen on the HTTP port for incoming connections.
KVM encryption - Controls the encrypting of the RFB protocol, used by the
Remote Console to transmit the screen data to the administrator machine and
keyboard and mouse data back to the host.
Off - No encrypting used.
Try - Tries to make an encrypted connection. If unsuccessful, an unencrypted
connection is used.
Force - Tries to make an encrypted connection.
19
