62 6. NetCommand IR Control (736 and 835 Series TVs)
Setting Up NetCommand Control of an A/V Receiver, continued
1
3
3
4
2

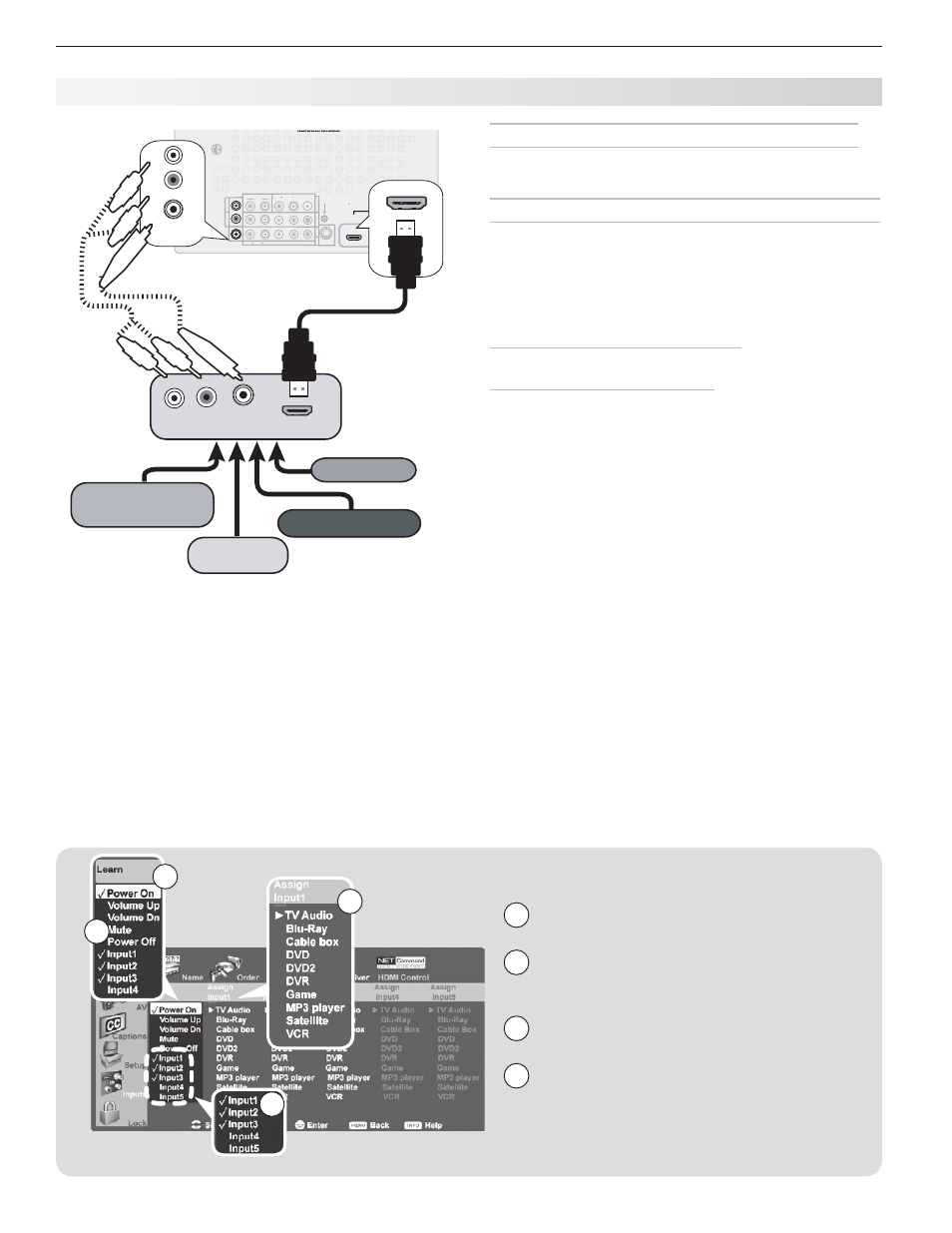

AV Receiver menu for audio and video switching
with HDMI output
1 The Learn column lists “learnable” keys from the
A/V receiver’s remote control.
2 Input1 through Input5 are arbitrary names used
by the TV to uniquely identify “learnable” A/V
receiver inputs.
3 A check mark next to a key name indicates it has
been “learned” by NetCommand.
4 The Assign Input column provides a list of
possible device types. Use this list to select the
device type connected to the associated A/V
receiver input. The assigned device name will
appear in the
Input Selection menu.
Power on the A/V receiver.
4.
Set the 5. TV’s remote control slide switch to the TV
position and power on the TV if needed.
When the
6. Auto Input Sensing screen displays,
select device name AVR.
Multiple video inputs on a single HDMI cable. You can
connect multiple video devices to an A/V receiver that
has an HDMI output. The optional audio connection
allows you to hear, through the A/V receiver, devices
connected to the TV only.
Setup to Control A/V Receiver Power and Volume
Perform the steps under “A/V Receiver Control: Power
and Volume,” page 58.
Setup to Control Switching to the TV’s Audio Output
If you have used one of the optional audio connec-
tions to the TV’s
AVR AUDIO OUTPUT or DIGITAL AUDIO
OUTPUT jacks, set up NetCommand to control switching
to the TV audio input. Perform the steps under “Audio
Switching Setup 1: Automatic A/V Receiver Switching
to the TV Audio Input,” page 60.
Setup to Control Automatic Audio
and Video Switching via HDMI
Follow these steps if you wish NetCommand to control
switching of A/V receiver video as well as audio inputs
over an HDMI cable. When this setup is complete, you
can use the TV’s
Input Selection menu to select a
video device connected to the A/V receiver. You can
also perform additional NetCommand setup to control
devices connected to the A/V receiver.
Display the
1. Inputs > AV Receiver menu.
Note: The labels Input1 through Input5 in the Learn
column are names used by the TV to uniquely
identify A/V receiver inputs.
With the highlight in the 2. Learn column, highlight
one of the Input labels Input2 through Input5; it
is recommended you leave Input1 reserved for TV
Audio.
HDMI
3D GLASSES
EMITTER
AVR AUDIO OUTPUT
DIGITAL AUDIO OUTPUT
L
R
L R
(480i / 480p / 720p / 1080i) L R
DVI/PC INPUT VIDEO
Y Pb Pr
AUDIO
Pb Y/ VIDEO Pr
VIDEO: 480i/480p/720p/1080i/1080p AUDIO: PCM STEREO
PC: VGA, W-VGA, SVGA, W-SVGA, XGA, W-XGA, SXGA, 720p/ 1080p
1 2 3
HDMI
IR- NetCommand Output / External Controller Input
R
INPUT
3
INPUT
2
INP UT 1 S-VIDEO INPUT 3
AUDIO R L
AUDIO
ANT 2 / AUX
ANT 1 / MAIN
HDMI
1 2 3
DIGITAL AUDIO OUTPUT
L
R
HDMI OUT
DIGITAL
AUDIO
OUTPUT
L
R
DIGITAL
AUDIO
L R
High-definition
DVD player
DVD player
Cable box
VCR
TV back panel
A/V receiver
with HDMI
output
Optional
analog or
digital audio
connection
