Designer Series Gas Fireplaces
FRaMING FIREPLaCE
FRaMING SEE ThRouGh FIREPLaCE
* NoTE: For ease of installation, frame around the firebox after it has been set. Refer to chart
below for specifications.
When installing into existing framed (A1) openings, loosen the junction box. Remove the rear-mounted
flue pipe adaptor. Refer to Page 16, Figures 10 and 11. Reattach both assemblies.
C
A 2
B
A 1
A1
A2
C
FP2038
designer see thru framing
10/08
See-through Framing
Top view
2 x 4
(Minimum)
Gas
Connection
2 x 4
(Minimum)
FP2038
See-through
Framing Specifications
1/2" Drywall 5/8" Drywall
A1
44Z\v"
44Z\v"
A2
40B\,"
40B\,"
B
41Z\,"
41Z\,"
C
22C\v"
22Z\x"
w
a
RNING
The fireplace must be installed giving full
consideration to the clearance and height
requirements identified in this manual.

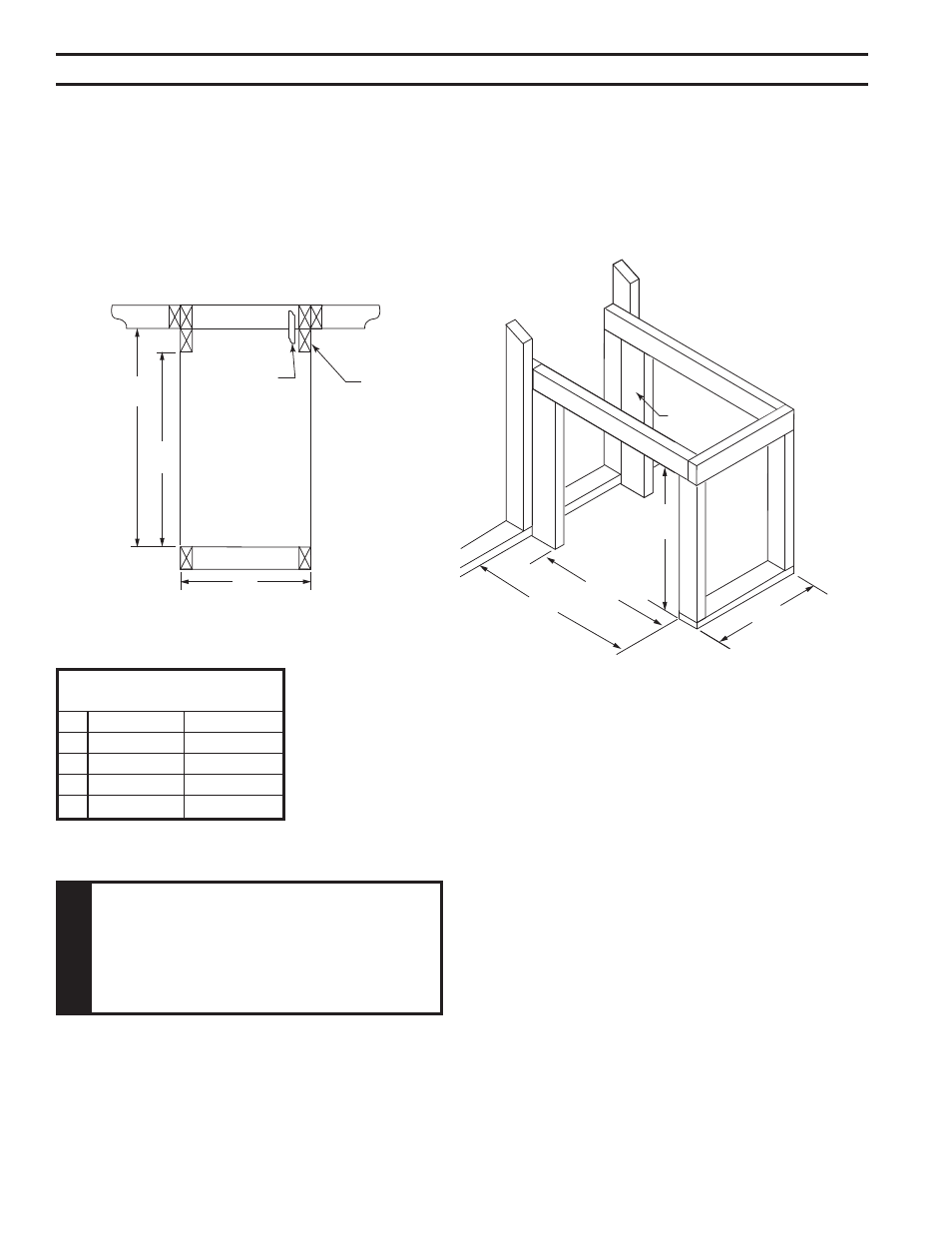

Figure 5 -
See-Through Framing
