Designer Series Gas Fireplaces
vENT CoMPoNENTS
REPLaCEMENT PaRTS
HOT
1
2
3
4
5
6
9
7
8
11
10
420200

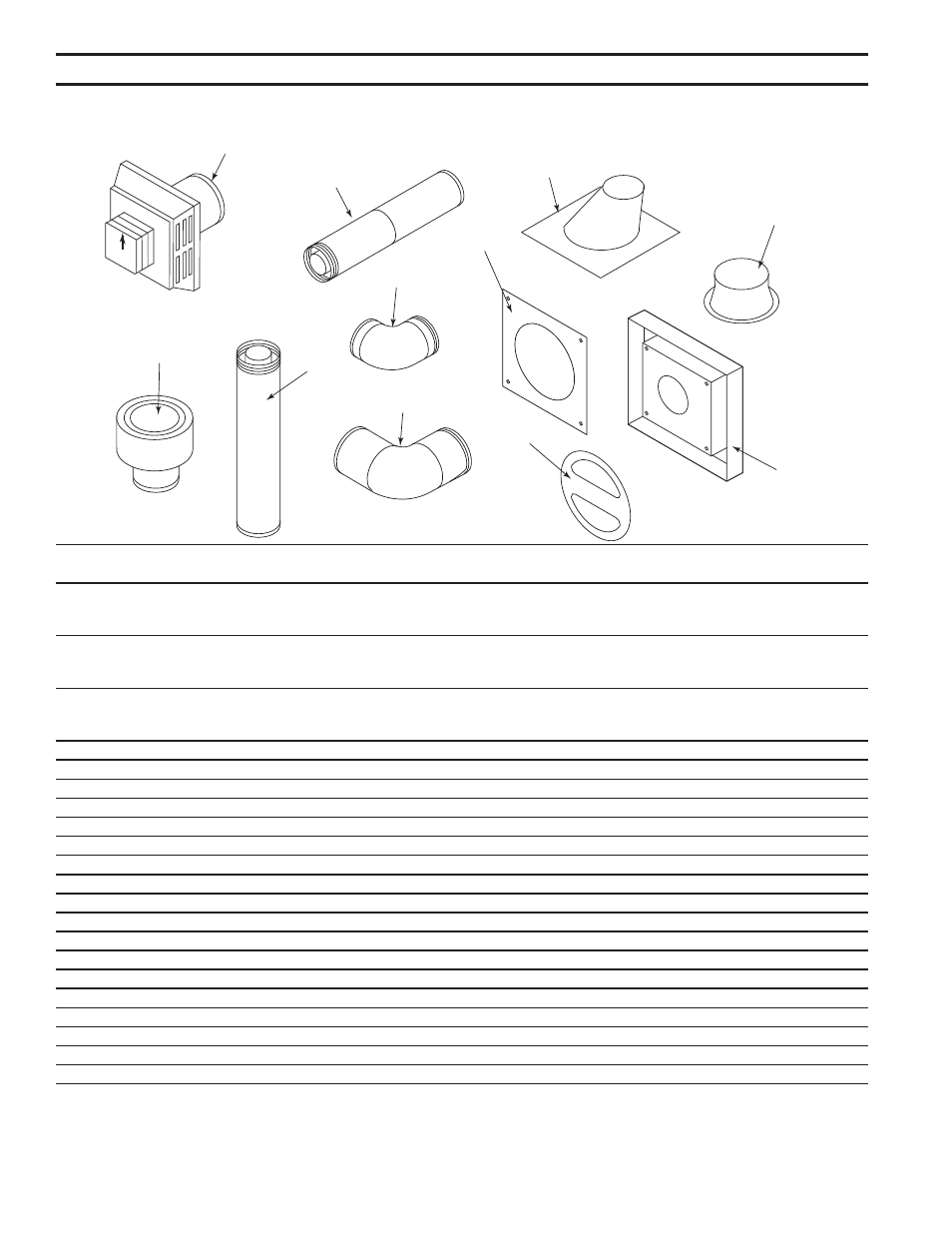

DV6000 vent components
Simpson Durvent
Ref. Qty/Box Description
or MHSC Pt. No.
1.
1
Simpson Horizontal High Wind Termination
985
Horizontal Square Termination Cap w/ Built-in Vinyl Siding Standoff, Heat
Deflector and Firestop
1.
1
Horizontal Rigid Pipe Termination Kit w/ Horizontal Termination Cap w/
BHRTK
Built-in Vinyl Siding Standoff, Heat Deflector, Firestop, 90° Elbow and
BHSTK
11" x 14B\," Adjustable Pipe
1.
1
Horizontal Flexible Pipe Termination Kit w/ Horizontal Termination Cap w/
BHSFTK
Built-in Vinyl Siding Standoff, Heat Deflector, Firestop, 20" to 40" Flexible Pipe
Adapter
2.
1
Vertical Termination
980
3.
6
6" Pipe Length
908
3.
6
9" Pipe Length
907
3.
6
12" Pipe Length
906
3.
6
24" Pipe Length
904
3.
6
36" Pipe Length
903
3.
6
48" Pipe Length
902
4.
6
11" to 14B\," Pipe, Adjustable
911
4.
6
17" to 24" Ppe, Adjustable
917
5.
6
45° Elbow
945
5.
6
45° Swivel Elbow
945G
6.
6
90° Elbow
990
6.
6
90° Swivel Elbow
990G
7.
6
Flashing, 0.12 to 6/12 Roof Pitch
943
8.
6
Storm Collar
953
9.
6
Firestop
963
10.
1
Vinyl Siding Standoff
950
11.
1
Restrictor Disc
45D0551
