REMoTE waLL MouNTEd SwITCh
A remote wall switch and up to fifteen (15) feet of 18 Ga. wire may be used with this appliance. Attach
the wall switch in a junction box at the desired location on the wall. Figure 38. Do not extend beyond
the wall switch wire length provided.
NoTE: Extended lengths of wire may cause the fireplace not to function properly. Longer length of wire
is permitted if the wire is made out of larger gauge (diameter) wire. Always check with local code.

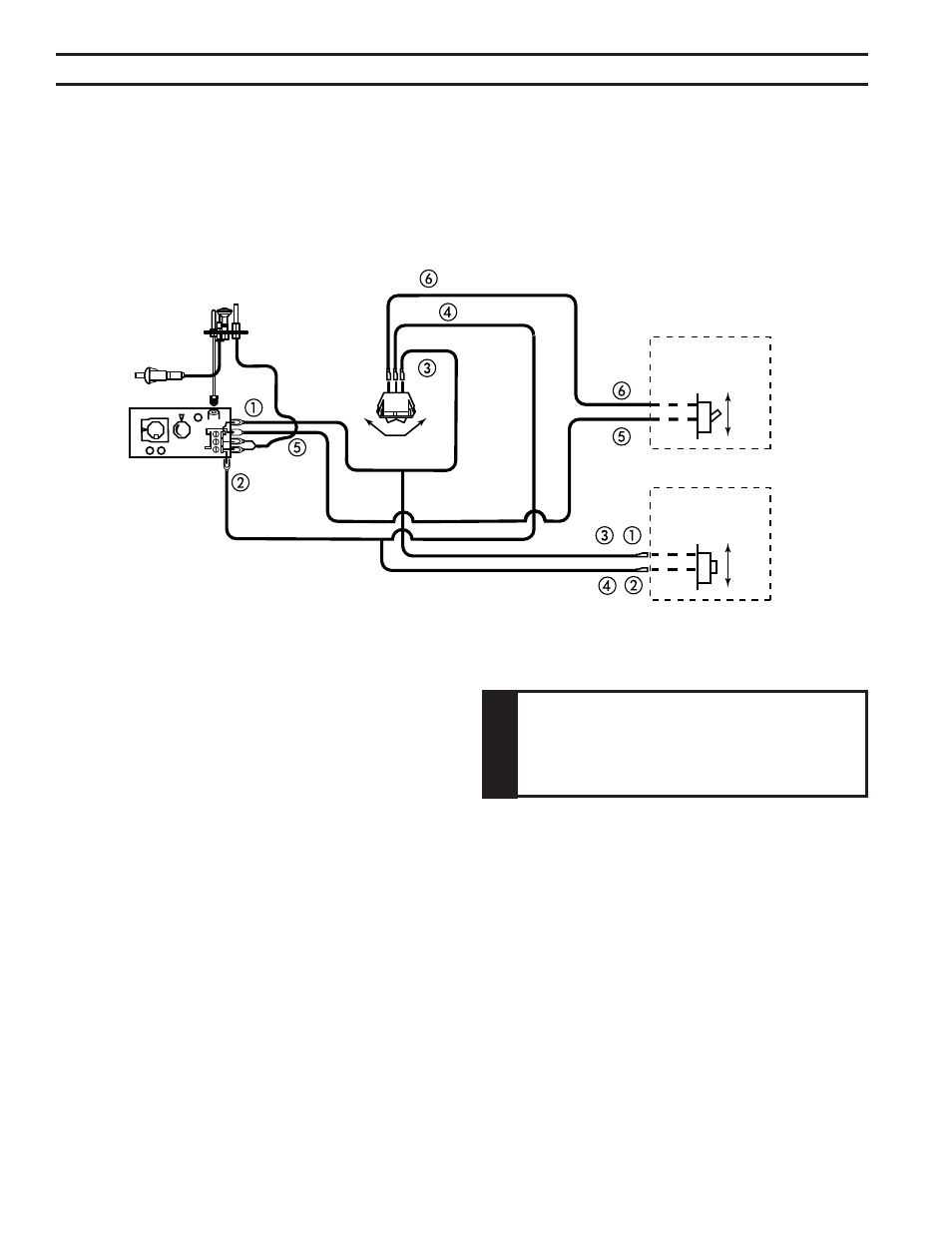

Figure 38 -
Wiring Diagram for Wall Switch
ELECTRICaL INSTaLLaTIoN
w
a
RNING
do not connect wall switch to (110 v)
circuit.
ON
OFF
OPTIONAL REMOTE
WALL SWITCH
ON
OFF
OPTIONAL REMOTE
WALL SWITCH
PILOT HI
LO
ON
OFF TH
TP
TH/TP
ON
OFF
RS
FP1980
Dv wiring diagram
