44 42D0200
Designer Series Gas Fireplaces
STaNdING PILoT – MILLIvoLT CoNTRoL
REPLaCEMENT PaRTS
1
2C
2I
2T
2
4
5
6
3
7 8
9,10,11,12

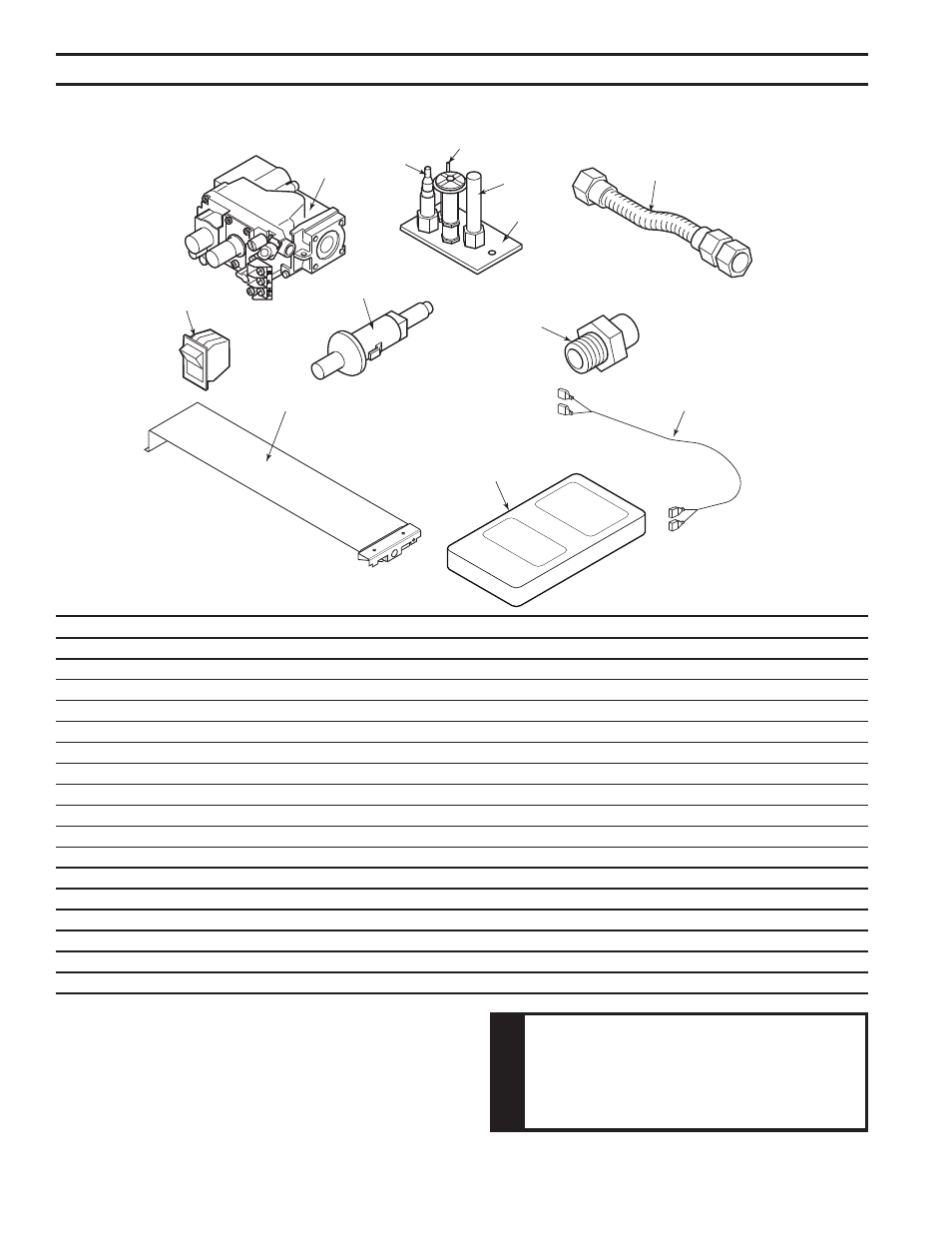

420200
DV6000 millivolt parts
Ref. description qty Natural Propane
1. Gas Valve Assy 1 37D0117 37D0118
2. Pilot Assy 1 20H2048 20H2049
2C. Replacement Thermocouple 1 37D1067 37D1067
2I. Replacement Igniter and Wire 1 37D1069 37D1069
2T. Replacement Thermopile 1 37D1068 37D1068
3. Flexhose w/ Shut-off Valve 1 26D6046 23D6046
4. Rocker Switch 1 41D0048 41D0048
5. Piezo Igniter 1 14D0503 14D0503
6. Injector 1 42D0502 42D0503
7. Burner Assy 1 42D0501 42D0501
8. Wire Assy (Female) 1 44D0500 44D0500
8. Wire Assy (Male) 1 44D0501 44D0501
Accessories
9. Thermostatic Remote Control 1 RCT/TRC RCT/TRC
10. Remote Control On/Off 1 RCM/MRC RCM/MRC
11. Wall Switch Kit 1 MVWS MVWS
12. Wall Thermostat Kit 1 MVWTS MVWTS
Fuel Conversion Kits - Millivolt
Natural Gas to LP
300 Conversion Kit #6000CKP
LP to Natural Gas
300 Conversion Kit #6000CKN
w
a
RNING
Failure to position the parts in accordance
with these diagrams or failure to use only
parts specifically approved with this
appliance may result in property damage
or personal injury.
