Monessen Hearth 624DV(ST - Manual (Page 37)

42D0200
Designer Series Gas Fireplaces
37

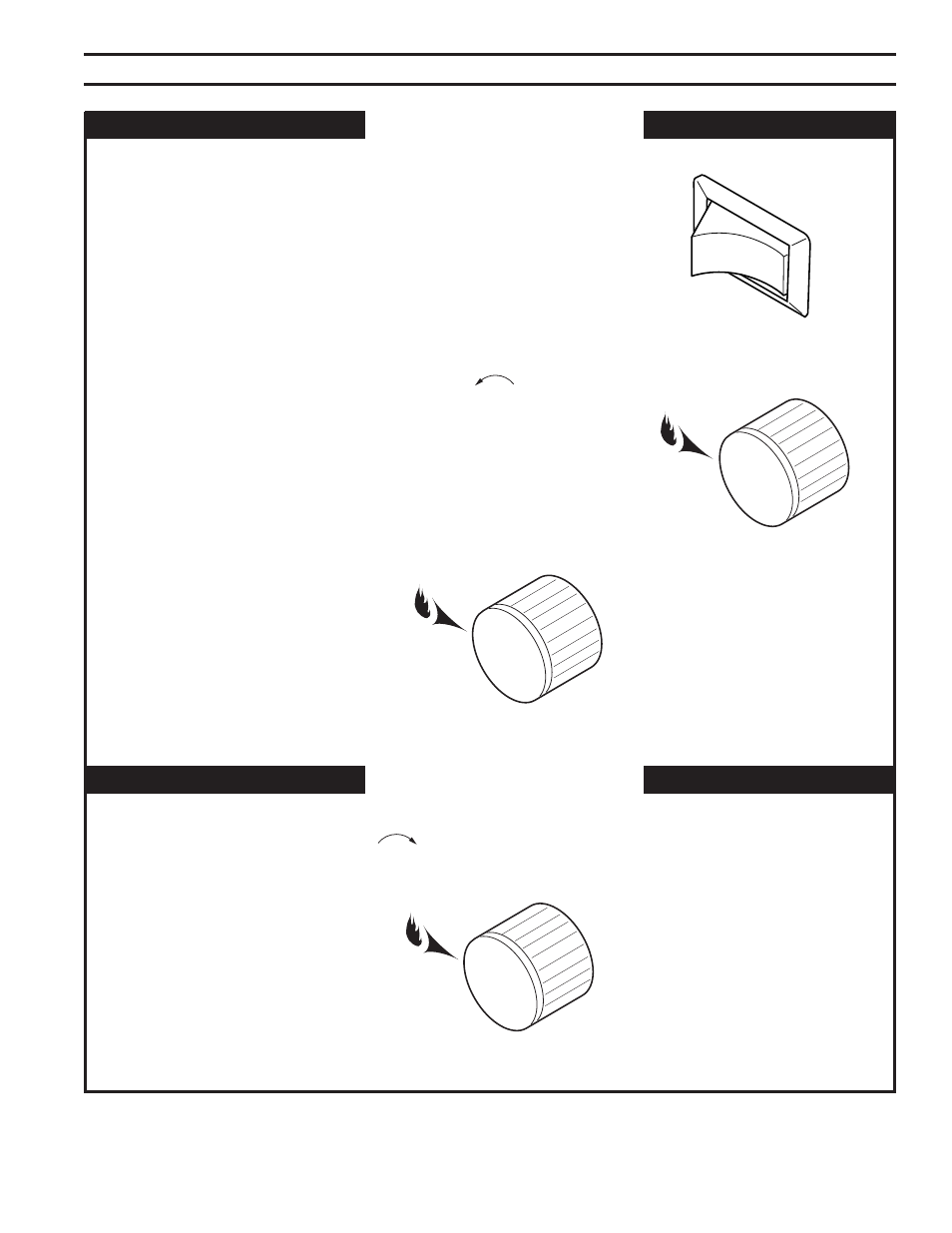

oPERaTING INSTRuCTIoNS
PILOT
OF
F
PILOT
O
N
OF
F
PILO
T
ON
PILOT
FP1937
control knob on
Figure 51 -
On Position
PILOT
OF
F
P
IL
O
T
ON
FP1935
control knob pilot
Figure 50 -
On/Off/RS Switch
OFF
ON
RS
LIGhTING BuRNER
MaIN BuRNER SwITCh
The “ON/OFF/RS” switch for the main burner can be found
behind door of the fireplace. This switch allows you to turn on
and to turn off the main burner without using the gas valve knob.
Make sure the button is in the “ON” position to light the main
burner.
Figure 50
LIGhTING ThE BuRNER
Depress and turn the knob counterclockwise
to the “ON”
position. Figure 51. It will take less than four (4) seconds for the
burner to ignite.
PILoT PoSITIoN
Depress and turn knob to pilot position to keep burner off while
maintaining the pilot light. Figure 52
Depress and turn knob clockwise to “OFF” position. Figure 53
To TuRN oFF GaS
Figure 53 -
Off Position
Figure 52 -
Pilot Position
