42D0200
Designer Series Gas Fireplaces
29
ELECTRICaL INSTaLLaTIoN
ELECTRoNIC PILoT IGNITIoN wIRING
REMoTE waLL SwITCh
Position the wall switch. Do not extend beyond the 15 feet of wire.
oPTIoNaL dC REMoTE SySTEMS
These instructions replace the section entitled Hearth Mount in the Millivolt hand held remote instruc-
tions supplied with the remote.
1. Plug in remote connector wire to remote receiver.
2. Connect the wire terminal from the remote receiver. This replaces the 15' wall switch connection
to the switch. Figure 39.
3. Mount remote control receiver at junction box (for your wall switch).
w
a
RNING
do not connect 110-120v aC to the
Remote wall Switch. The appliance will
malfunction.

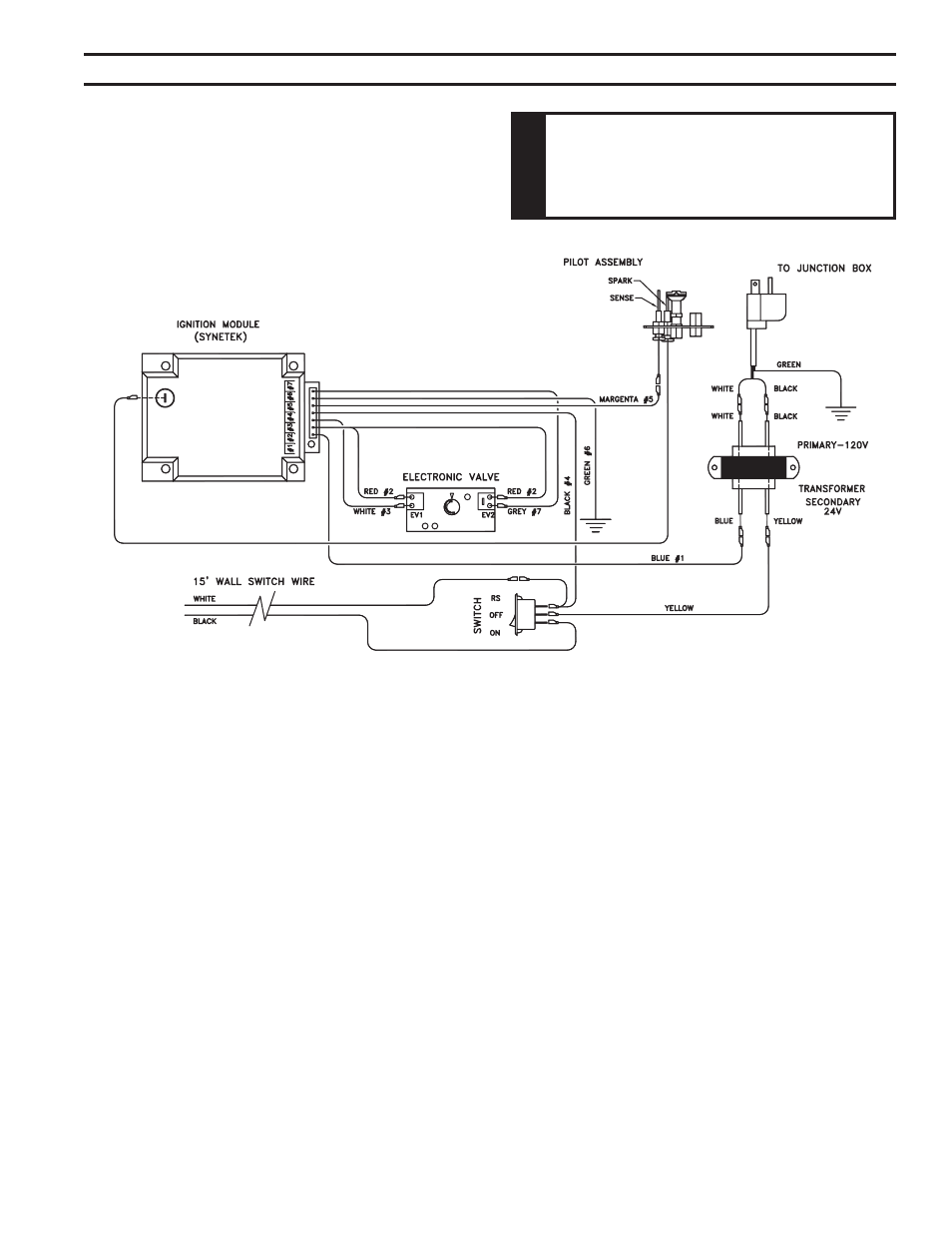

Figure 39 -
Remote Wall Switch Wiring Diagram
FP2551
remote switch wiring
