32 42D0200
Designer Series Gas Fireplaces
LG640
DV6000 bot ctr back log

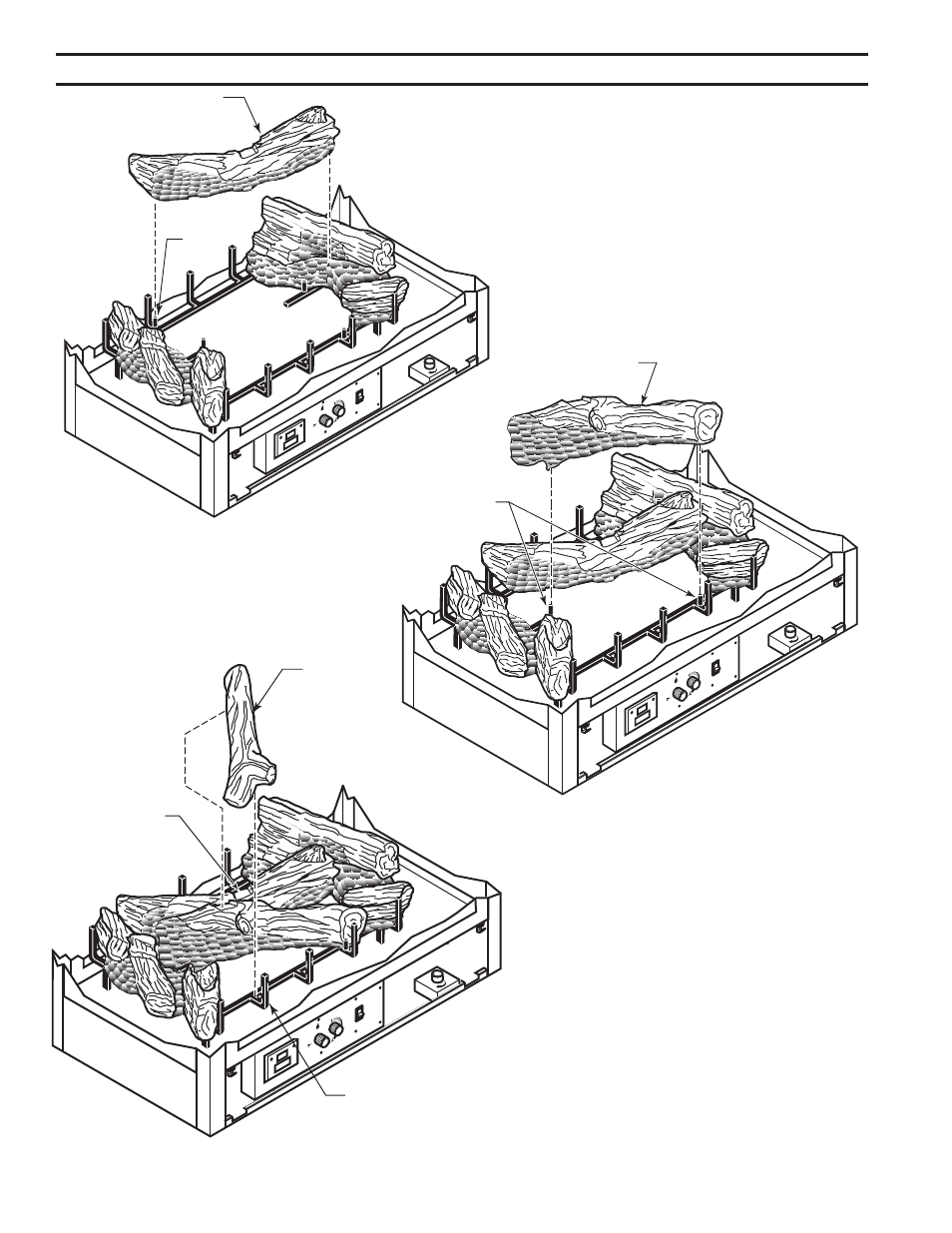

Figure 43 -
Install Bottom Center Log (#3)
Bottom Center Back
Log (#3)
Pin
LG640
LG642
DV6000 left top log
5. Position left end of bottom center back log
(#3) beside rear end of left log (#1). Line up
pin on grate with pin hole in bottom of center
back log (#3) Snug right end of bottom center
back log (#3) to the middle of right log (#2).
Figure 43
6. Line up pin holes on bottom front log (#4) with
pins on grate. Figure 44
LG641
bottom front log
Bottom Front
Log (#4)
Pins
LG641
Figure 44 -
Install Bottom Front Log (#4)
Figure 45 -
Install Left Top Log (#5)
Left Top Log
(#5)
Grate Prong
Two
Cutout of Bottom
Front Log
LoG PLaCEMENT
7. Place back end of left top log (#5)
on cutout of bottom front log (#4).
Position front of left top log (#5) on
grate prong two. Figure 45
LG642
