42D0200
Designer Series Gas Fireplaces
41

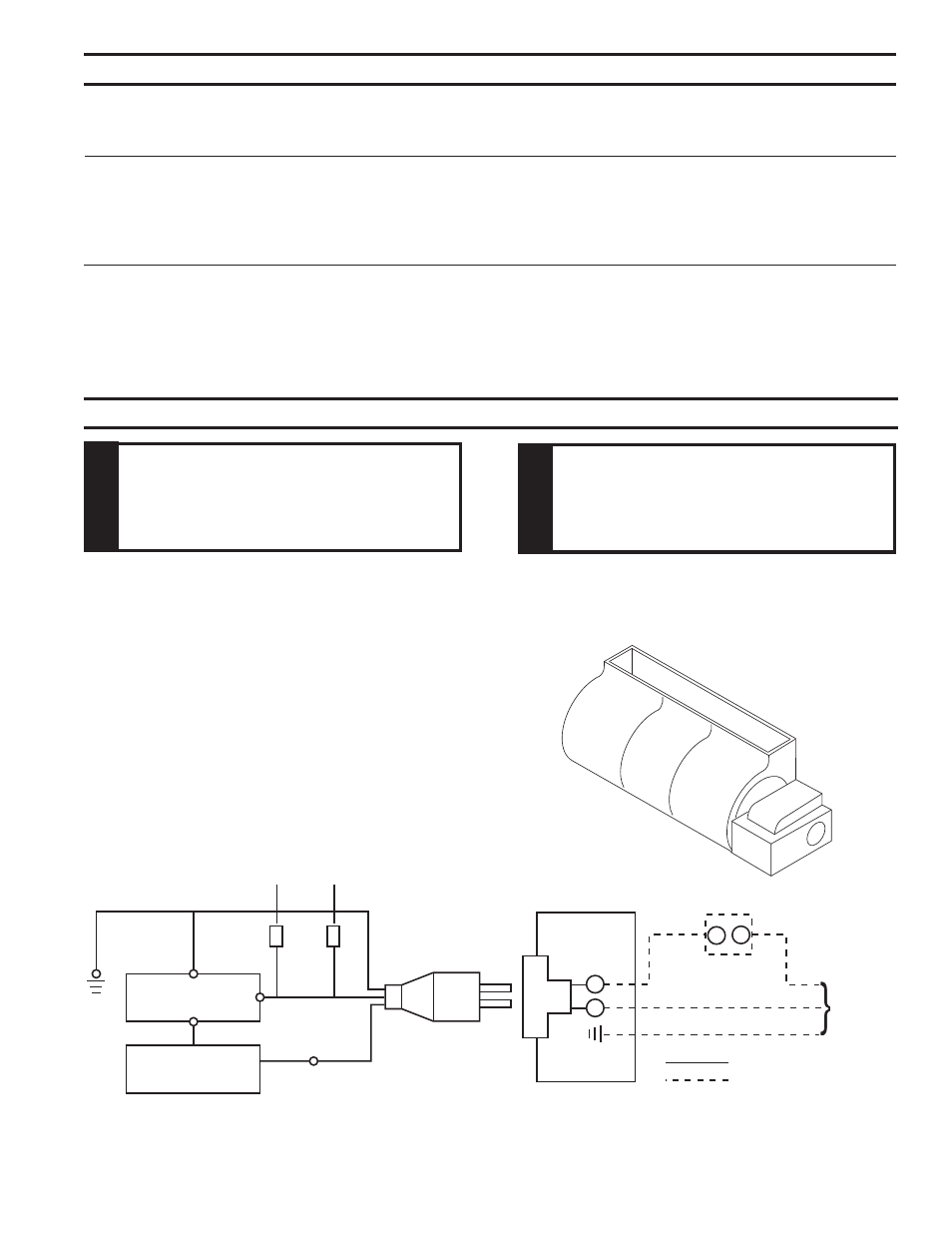

TRouBLEShooTING
GENERaL TRouBLEShooTING
GLaSS REPLaCEMENT
and
BLowER
• Never operate fireplace if glass is broken.
• Replace any glass that is chipped, cracked, or broken. Replacement glass assemblies MUST
be supplied by fireplace manufacturer — No substitute materials may be used.
oPTIoNaL BLowER aCCESSoRy - BLoT
wIRING dIaGRaM FoR BLowER
SyMPToM PoSSIBLE CauSE aCTIoN
6. Glass Soots
7. Flame burn blue
and lifts off burner
(ghosting)
A. Flame impingement
on logs
A. Insufficient oxygen
being supplied
A. Install log set per the instructions
Inspect the injector and air intake area. Make sure
this area does not have any blockage from debris and
clean.
Check gas supply.
A. Ensure that the vent cap is installed properly and free
of debris. Ensure that the vent system joints are tight
and have no leaks. Ensure that no debris has been
blocking the inner air intake at the bottom back of the
combustion chamber. Ensure that the glass is properly
secure and latch.
w
a
RNING
Make sure the glass panel edges do not
touch any metal parts during thermal
expansion.
C
au
TI
o
N
always use gloves when handling broken
glass.
120 VAC
Blower
120 VAC
Speed Control
Green Green
Attach Blower to T-Stat
Black
Black
Black
White
Blower Plug
Junction Box
ON/OFF Wall Switch or
Optional Variable Speed Switch
120 VAC
60Hz
Factory Supplied
Not Supplied
FP2313
BLOT wiring
FP2314
BLOT blower
