Monessen Hearth 624DV(ST - Manual (Page 5)

42D0200
Designer Series Gas Fireplaces
5
PRoduCT FEaTuRES
PRoduCT SPECIFICaTIoNS
•
This appliance has been certified for use with
either natural or propane gas. See appropriate
data plates.
• This appliance is not for use with solid fuels.
• The appliance is approved for bedroom or bedsit-
ting room installations.
• The appliance must be installed in accordance
with local codes if any. If none exist use the cur-
rent installation code. ANSI Z223.1/NFPA 54 in
the USA, CSA B149 in Canada.
• This appliance is mobile home approved.
• This appliance is approved for bathroom instal-
lation.
• The appliance must be properly connected to a
venting system.
• The appliance is not approved for closet or
recessed installations.
The efficiency rating of this appliance is a product
thermal efficiency rating determined under con-
tinuous operating conditions and was determined
independently of any installed system.
FP2276
6000DV prod features
Optional
Remote
Receiver
Hi/Lo Knob
Off/Pilot/On
Knob
Control Panel Blower Control
FP2276

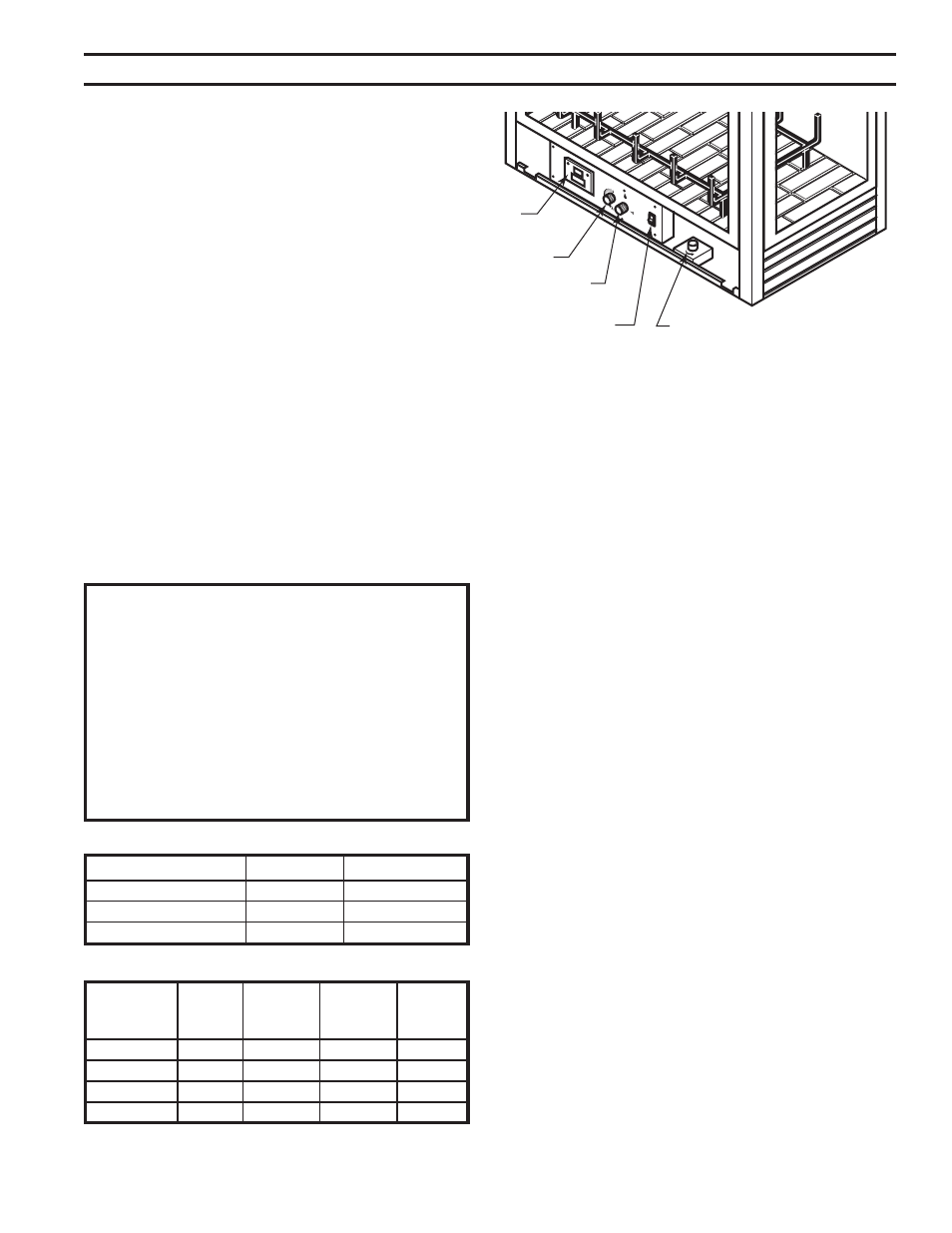

Figure 1 -
Designer Series Fireplace Controls
hIGh ELEvaTIoNS
Input ratings are shown in BTU per hour and are certi-
fied without deration for elevations up to 4,500 feet
(1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installation must be in accordance with the current
ANSI Z223.1/NFPA 54 and/or local codes having
jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installation at eleva-
tions above 4,500 feet (1,370 m).
GaS PRESSuRES
Natural Propane (LP)
Inlet Minimum 4.5” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
GaS SPECIFICaTIoNS & oRIFICE SIZE
Max. Min.
Input Input orifice
Model Fuel Btu/h Btu/h Size
624DVNVC Nat. 36,000 25,000 #44
624DVPVC LP 36,000 26,000 #54
624DVNEC Nat. 36,000 25,000 #44
624DVPEC LP 36,000 26,000 #54
BEFoRE you STaRT
Read this homeowner manual thoroughly and follow all
instructions carefully. Inspect all contents for shipping
damage and immediately inform your dealer if any damage
is found. Do not install any unit with damaged, incomplete,
or substitute parts. Check your packing list to verify that
all listed parts have been received. You should have the
following:
• Fireplace (Firebox and Burner System)
• Log Set • Lava Rock • Rock Wool
• Deflector Shield (to be used with Simpson DuraVent
Horizontal Termination – P/N 985)
ITEMS REquIREd FoR INSTaLLaTIoN
• Phillips Screwdriver • Framing Materials
• Hammer • Wall Finishing Materials
• Saw and/or saber saw • Level
• Measuring Tape • Electric Drill and Bits
• Tee Joint • Pliers
• Square • Pipe Wrench
• Caulking Material (Noncombustible)
• Fireplace Surround Material (Noncombustible)
• Piping Complying with Local Codes
• Pipe Sealant Approved for use with Propane/LPG
(Resistant to Sulfur Compounds)
