57D0016 29
T
PILO
T
O
FF
PILO
T
O
N
Figure 36 - Off Position
O
FF
PILO T
O
N
PILO
T
PILO
T
OF
F
P
IL
O
T
ON
ON
OFF

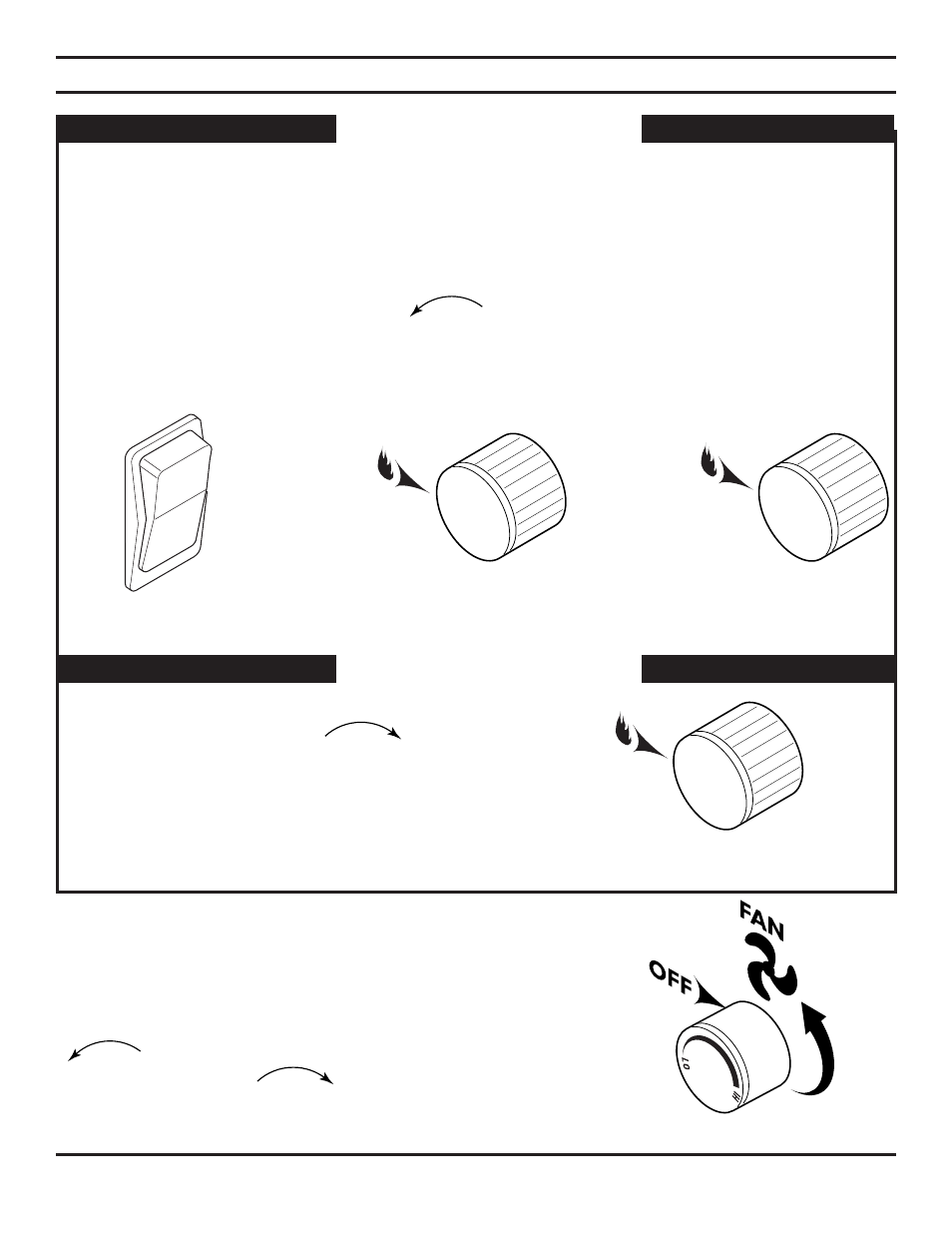

OPERATING INSTRUCTIONS
LIGHTING BURNER
MAIN BURNER SWITCH
The “ON/OFF” switch for the main burner can be found on the right side of insert surround. This switch allows
you to turn on and to turn off the main burner without using the gas valve knob. Make sure the button is in the
“ON” position to light the main burner. See Figure 33.
LIGHTING THE BURNER
Depress and turn the knob counterclockwise to the “ON” position. See Figure 34. It will take less
than four (4) seconds for the burner to ignite.
PILOT POSITION
Depress and turn knob to pilot position to keep burner off while maintaining the pilot light. See Figure 35.
Depress and turn knob clockwise to “OFF”
position. See Figure 36.
TO TURN OFF GAS
ADJUSTING BLOWER SPEED
The internal blower helps transfer heat from heater into room.
It will not turn on until heater is up to temperature (approxi-
mately 10 minutes after starting).
To turn blower off, turn knob all the way counter-clockwise
. One click clockwise turns blower to high speed.
Turning knob clockwise from high position
decreases speed of blower. See Figure 37.
Figure 37 - Blower Knob
Figure 34 - On Position Figure 35 - Pilot Position Figure 33 -
On/Off Switch
