82 CenturyStack 8100 Managed Hub
Repeater Group Control/Status
The Repeater Group Control/Status displays status information for groups
and allows enabling or disabling a group as well as naming and resetting
the group.

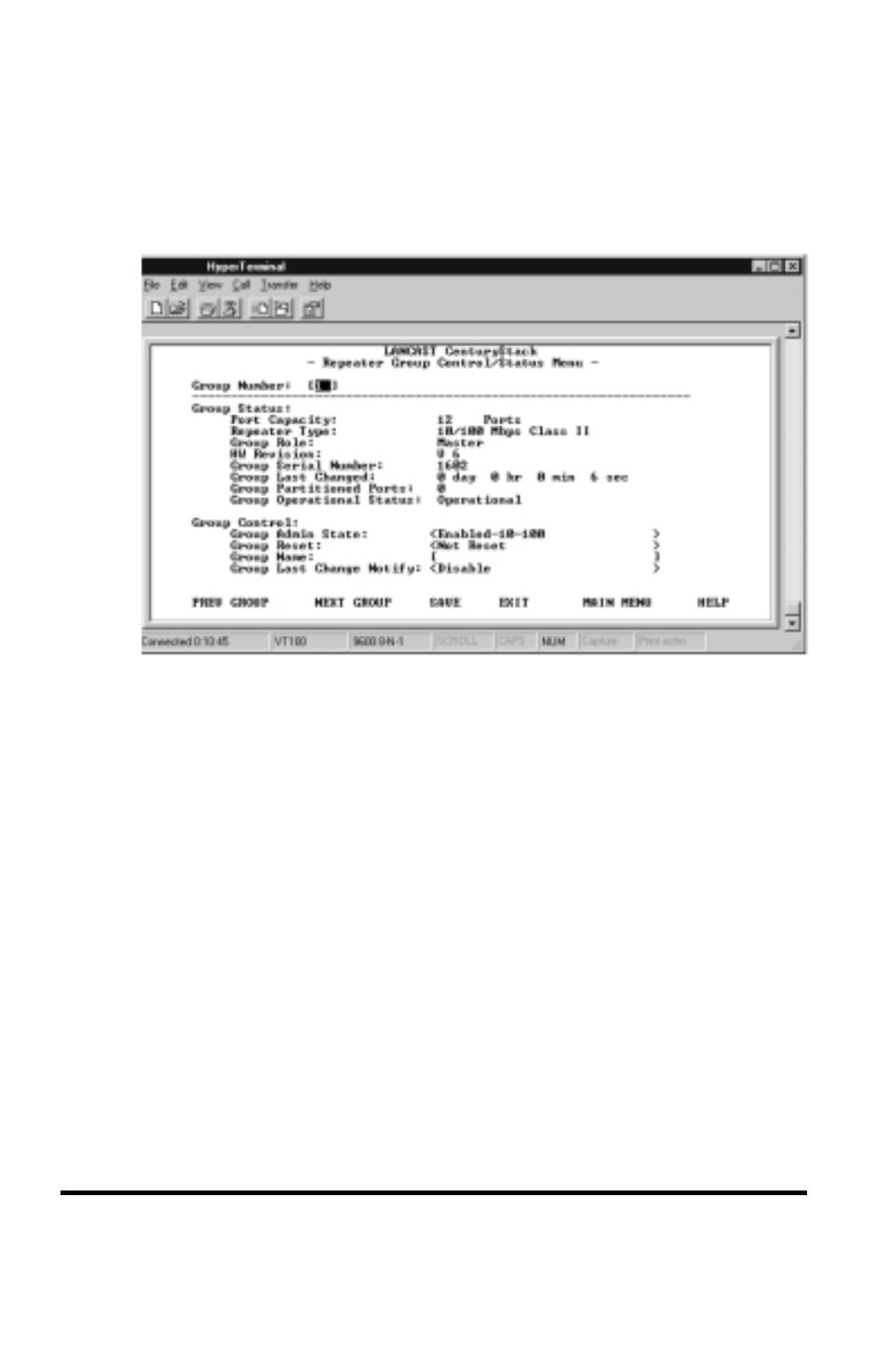

Repeater Group Control/Status
Group Number: The ID number of a hub in the stack;
the range is 1~6.
Group Status
Port Capacity: The maximum number of ports that can be
contained within the group (12/24).
Repeater T ype: The repeater type of the group.
(10/100 Mbps Class II)
Group Role: Describes the Hub’s role as either master or slave.
HW Revision: The hardware version of the CenturyStack Hubs.
Group Serial Number: The serial number of the hub, for
example, 21564.
