Master Hub Configuration & Console Management 73

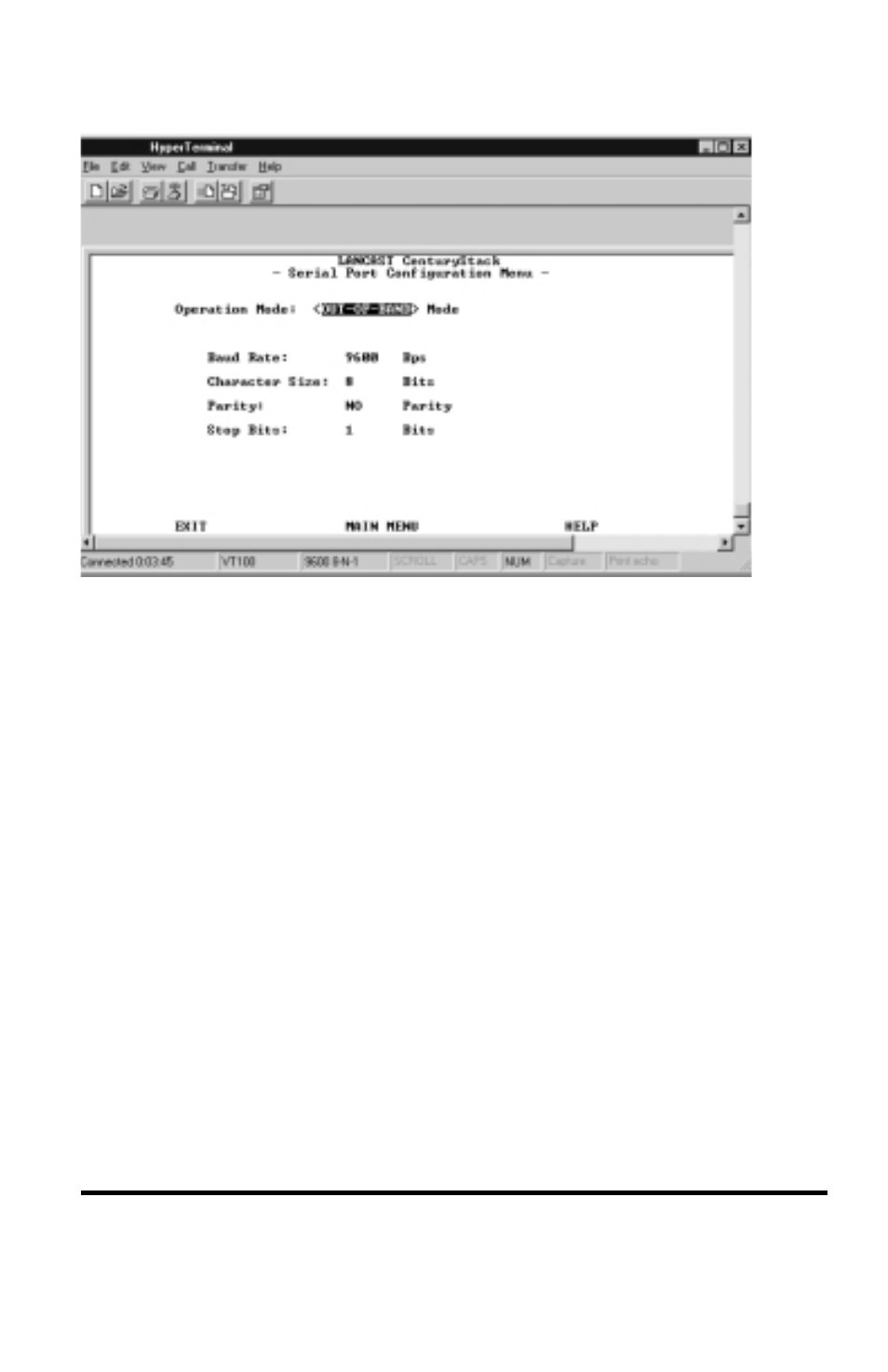

Out-of-Band Operation Mode
Baud Rate: The baud rate can be configured as one from
2400bps, 4800bps, 9600bps, 19200bps. The default is 9600.
Character Size: 8 bits character size
Parity: No parity.
Stop Bits: 1 stop bit
Select
takes effect if Out-of-Band management is enabled.
When SLIP is enabled, the EIA 232 port can be used for SLIP only. The
EIA 232 port cannot be used to gain access to a management session via
VT100 terminal emulation. If the SLIP connection is malfunctioning, you
can disable SLIP by rebooting and pressing
message appears. The message will appear for only 10 seconds. OOB also
appears on the lower right side of the Mini Console. You can also
establish a Telenet session and modify the serial port configuration.
