48 CenturyStack 8100 Managed Hub

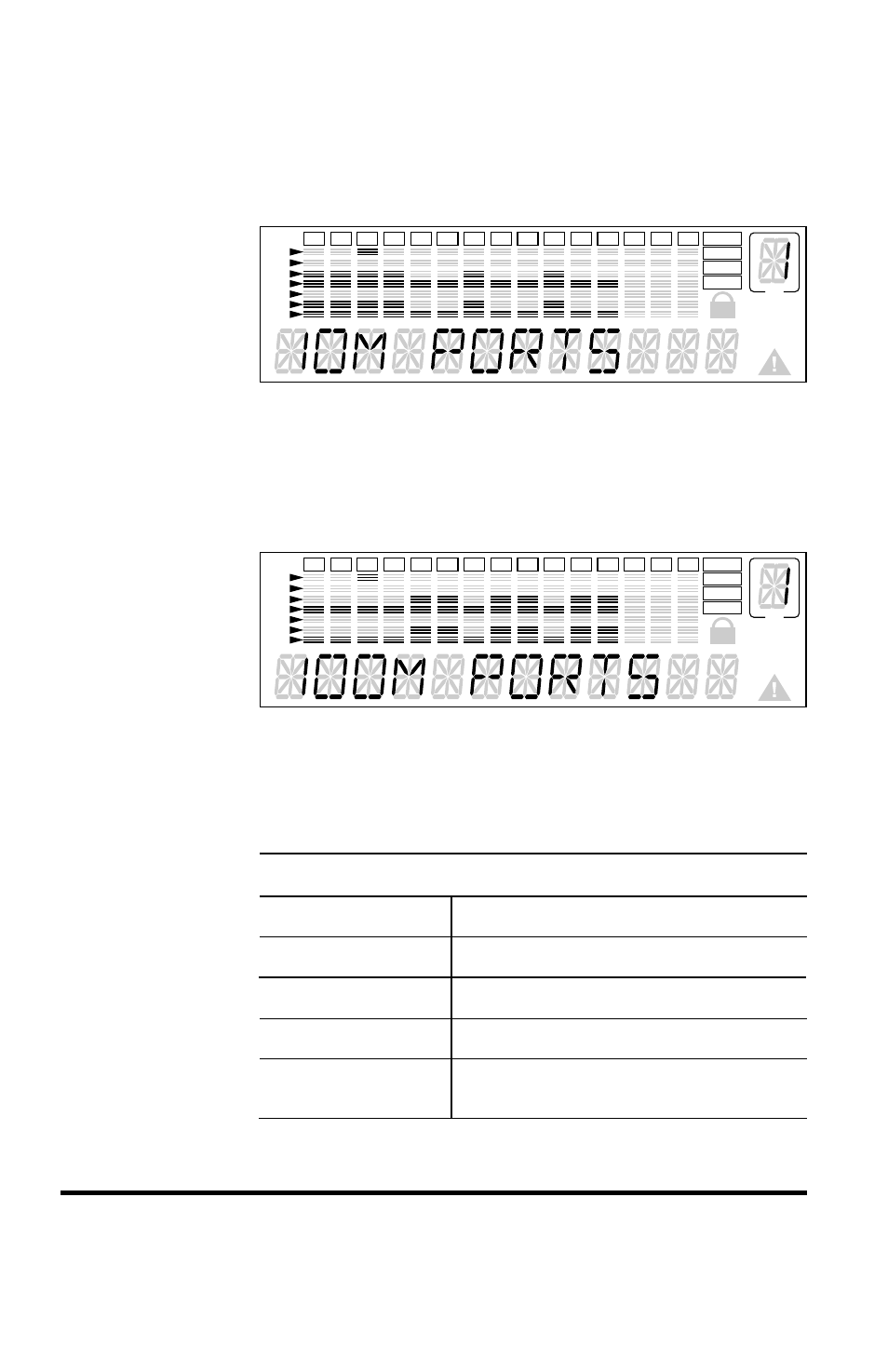

3. Press Enter to view all the ports’ status at once. The figure
below illustrates 10Mbps ports 1, 2, 3, 4, 7, 10, 13,
14, 15, 16, 19 & 22.
10Mbps Ports
4. Press to view the status of other ports. 100Mbps
ports status displays. In the figure below, ports 5, 6, 8, 9, 11,
12, 17, 18, 20, 21, 23, & 24 are indicated as 100M ports.
ID
Master
WWW
SNMP
O-O-B
10
20
40
1
3
5
80
K % 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 G-A
G-B
G-C
G-D
100Mbps Ports
5. Press to view other port status information. The
status information that is available is listed in the next table.
ALL PORTS Status Information
10M PORTS Indicates all 10M ports.
100M PORTS Indicates all 100M ports.
LINK UP Indicates all Link up ports.
LINK DOWN Indicates all Link down ports.
POLAR NORMAL The receive (Rx) polarity of the port
is normal.
ID
Master
WWW
SNMP
O-O-B
10
20
40
1
3
5
80
K % 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 G-A
G-B
G-C
G-D
