3. Press to move the “port cursor” to the desired port,
the port number displays in the Message Zone, as shown
below.

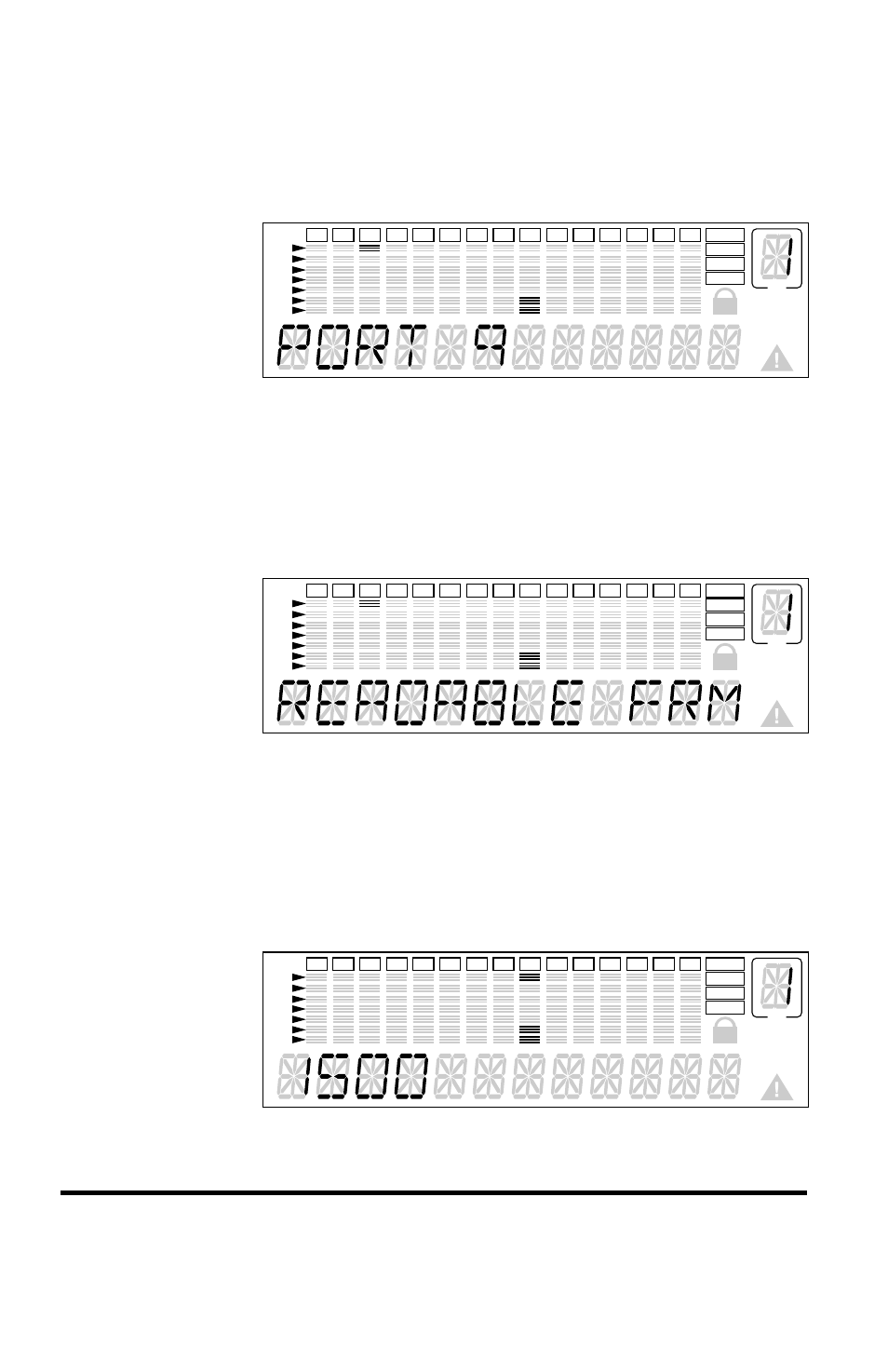

Scrolling to a Port
4. Press to confirm the selection of the port; and go to
the counter type selection menu. The name of the port
statistics counter “READABLE FRM” displays in the
Message Zone as shown below.
ID
Master
WWW
SNMP
O-O-B
10
20
40
1
3
5
80
K % 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 G-A
G-B
G-C
G-D
Readable Form
5. Press Next to scroll through each type of counter.
6. Press Enter to view the value of the current counter
(currently displayed in the Message Zone), the value of the
counter displays in the Message Zone.
ID
Master
WWW
SNMP
O-O-B
10
20
40
1
3
5
80
K % 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 G-A
G-B
G-C
G-D
Statistic Counter Value
