Managing Through the Mini Console 43
Selecting a Group
You can select a group to monitor and configure when there are managed
hubs cascaded to the master hub. “Group” refers to a hub in the stack, the
range is 1~6 when the maximum number of hubs exist in the stack. You
can manage each hub using the Mini Console. To select a group:
1. From the main menu press until
“GROUP SELECT” displays in the Message Zone.
2. Press . Several bars under the Port number indicate
the current group, as shown below.

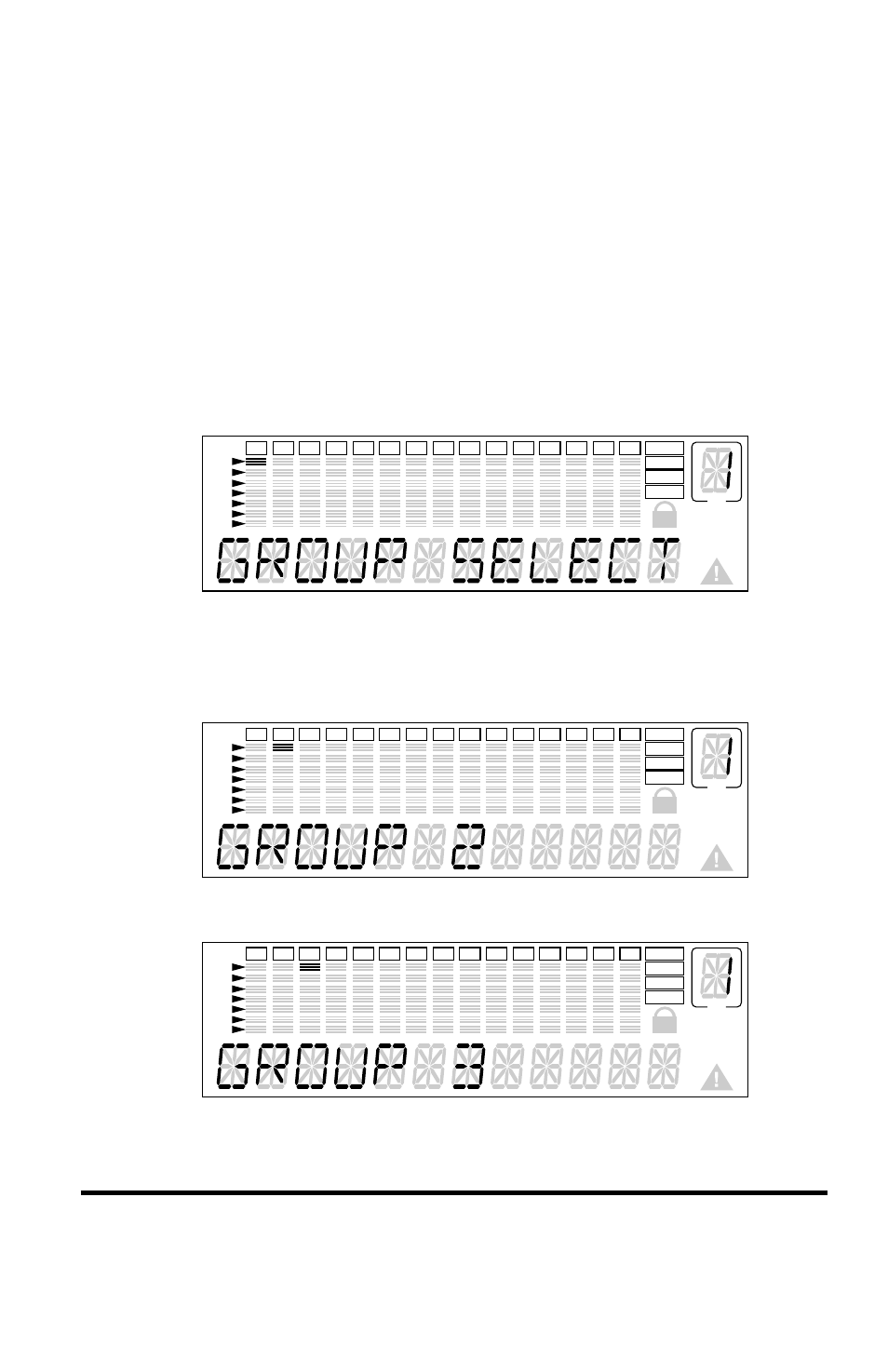

Group Select
3. Press until the group number you wish to monitor
displays in the Message Zone as shown below.
