Managing Through the Mini Console 49
POLAR REVERSE The receiver (Rx) polarity has been
automatically crossed by the hub.
NO AUTO PART Indicates all ports not auto partitioned.
AUTO PART Indicates all Auto Partitioned ports.
ENABLED Indicates all Enabled ports.
DISABLED Indicates all Disabled ports.
Monitoring Individual Port Status
To view the status of individual ports:
1. Press until “PORT STATUS” displays in the
Message Zone.
2. Press to go to the port selection menu.
“ALL PORTS” displays in the Message Zone.
3. Press to select an individual port. “PORT 1”
displays in the Message Zone. After a slight delay, the status
of Port 1 is automatically cycled through, displaying the
status of Port 1.

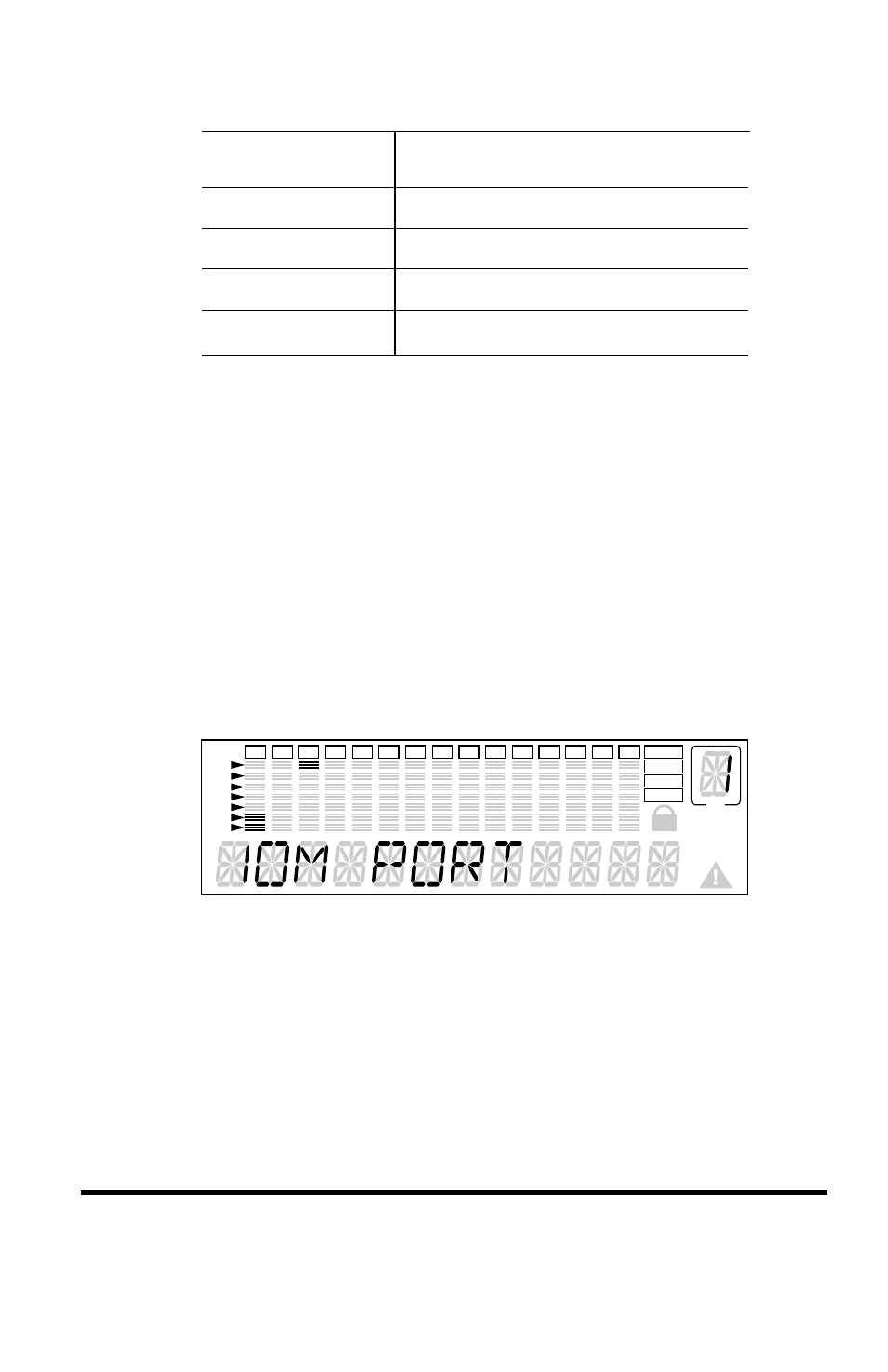

Port Status
4. Press to view port status of the next port. After a
slight delay the status of the selected port is automatically
cycled through, displaying the status of the selected port.
5. Press to view port status of other ports.
ID
Master
WWW
SNMP
O-O-B
10
20
40
1
3
5
80
