LOCATION OF CONTROLS
POWER SOURCE
Insert the AC plug (with the 2 blades) into a conveniently located AC outlet having 120V,
60Hz.
NOTE: The AC plug supplied with the unit is polarized to help minimize the possibility of
electric shock. If the AC plug does not fit into a nonpolarized AC outlet, do not file or cut
the wide blade. It is the user’s responsibility to have an electrician replace the obsolete
outlet.
AC Plug
AC Outlet

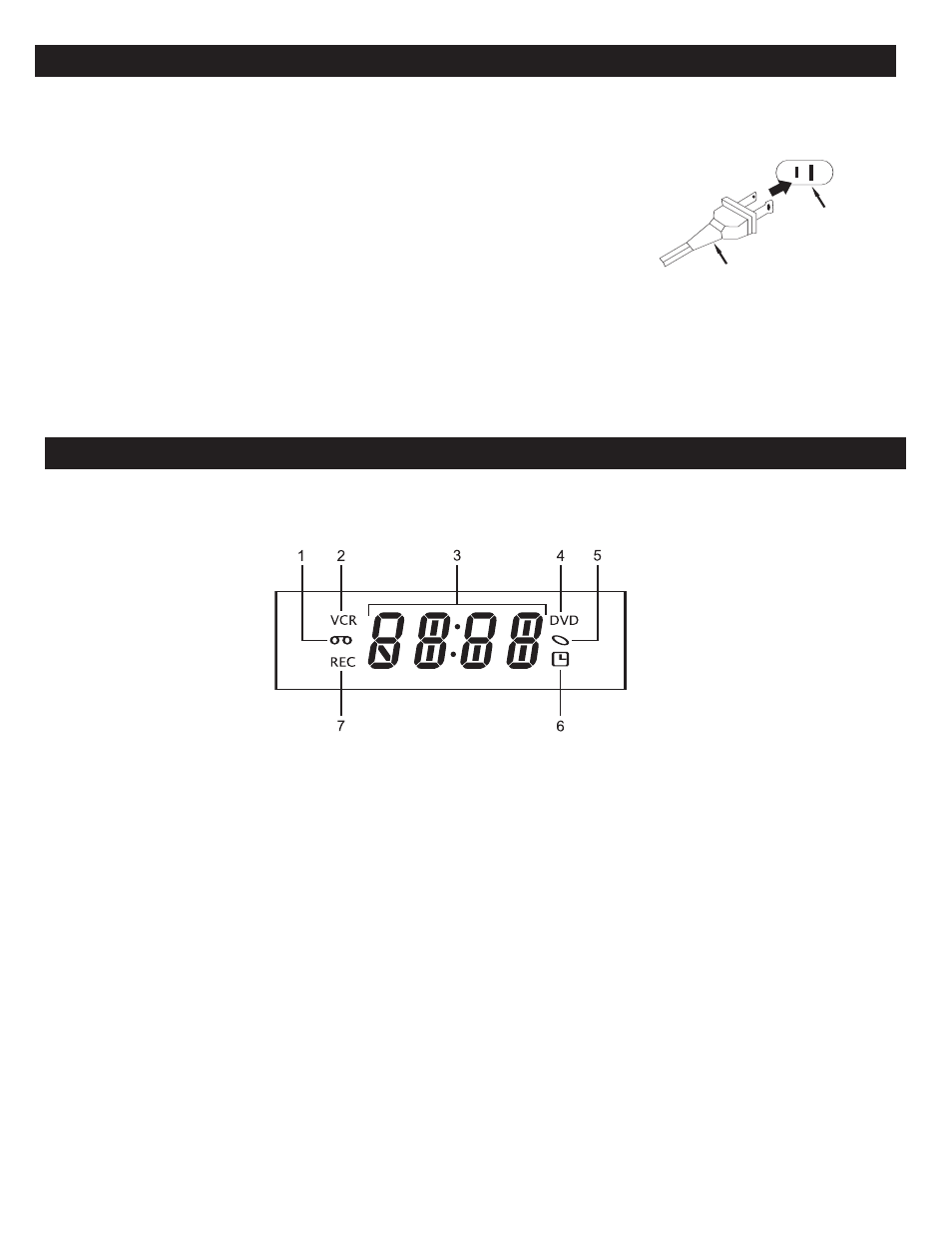

1. Video Cassette Tape Indicator–When a video cassette tape is inserted, the indicator will
light.
2. VCR Mode Indicator
3. Status/Time Display
4. DVD Mode Indicator
5. Disc Indicator–When a disc is inserted into the disc tray, after loading the disc, the indicator
will light.
6. Timer Indicator
7. REC Indicator
DISPLAY
