CONNECTIONS (CONTINUED)

OUTDOOR VHF/UHF ANTENNA CONNECTION

Follow the instructions for the type of antenna system you intend to use. If using Cable TV (CATV), see bottom of page.

CABLE (CATV)/SATELLITE CONNECTIONS

This unit has an extended tuning range and can tune most cable channels without using a Cable TV converter box. Some

Cable TV companies offer “premium pay channels” in which the signal is scrambled. Descrambling these signals for normal

viewing requires the use of a descrambler device which is generally provided by the cable company.

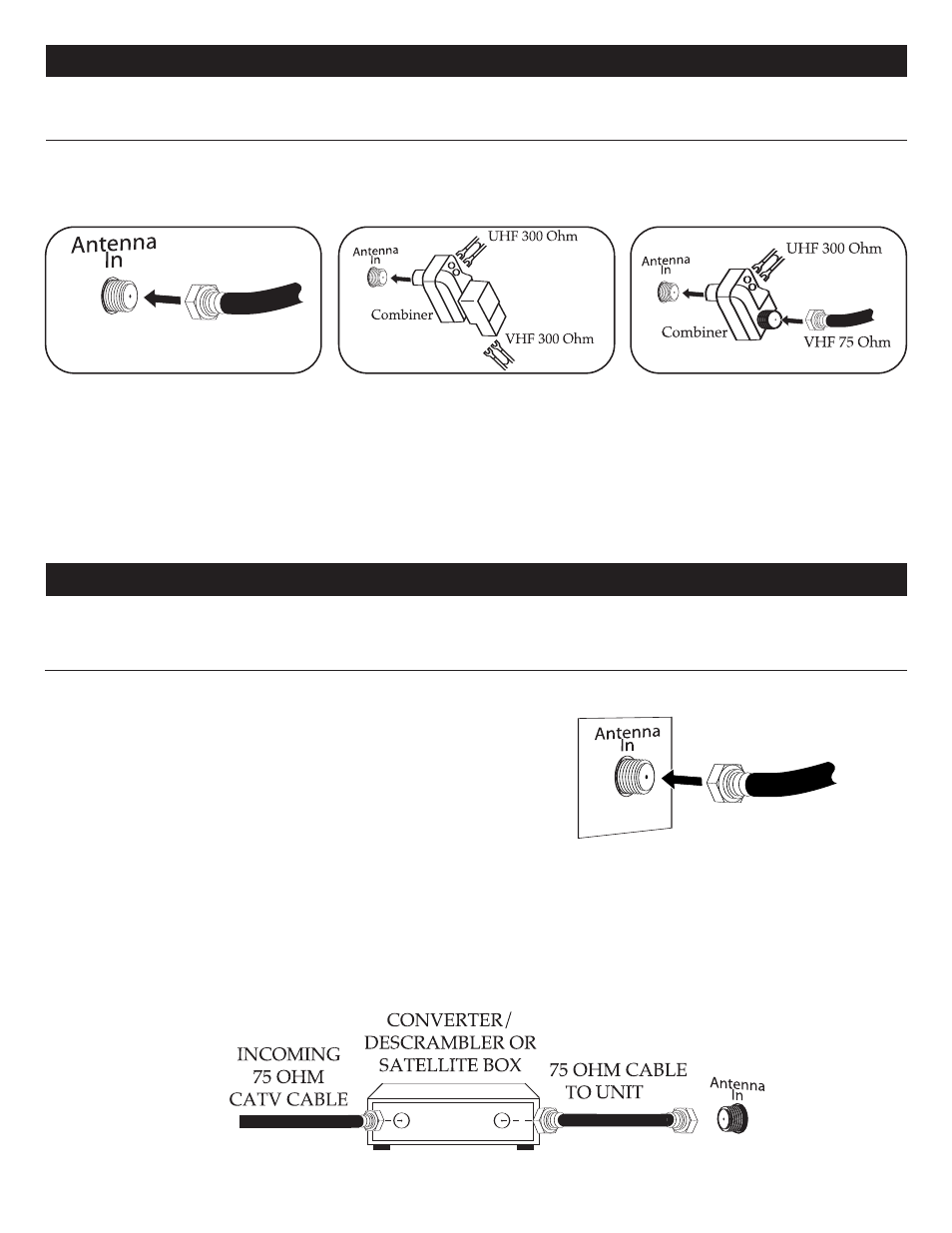

Combination VHF/UHF

Antenna (Single 75 ohm cable

or 300 ohm twin-lead wire)

Separate VHF/UHF Antennas

Combination VHF/UHF

Antenna (Separate VHF and

UHF 300 ohm twin-leads)

Connect the UHF twin-lead wire to a

combiner (NOT SUPPLIED). Connect

the VHF twin-lead to a 300-75 ohm

matching transformer (NOT SUPPLIED).

Attach the transformer to the combiner.

Attach the combiner to the antenna jack.

Connect the 75 ohm cable from the VHF

antenna and the UHF antenna twin-lead

wire to a combiner (NOT SUPPLIED).

Attach the combiner to the antenna jack.

NOTE: If your VHF antenna has a twin-

lead wire use a 300-75 ohm

matching transformer, then

connect the transformer to the

combiner.

VHF/UHF

75 Ohm

Connect the 75 ohm cable from

combination VHF/UHF antenna to the

antenna jack.

If your combination antenna has a 300

ohm twin-lead wire, use a 300-75 ohm

matching transformer (NOT

SUPPLIED).

FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE

For basic cable service not requiring a converter/descrambler box,

connect the CATV 75 ohm coaxial cable to the VHF/UHF jack on the

rear of the unit.

FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE OR SATELLITE

If you subscribe to a satellite service or a cable TV service which requires the use of a converter/descrambler box, connect

the incoming 75 ohm coaxial cable to the converter/descrambler box. Using another 75 ohm cable, connect the output of

the converter/descrambler or satellite box to the antenna jack on the unit. Follow the connections shown below. Set the unit

to the output channel of the converter/descrambler or satellite box (usually 3 or 4) and use the converter/descrambler or

satellite box to select channels.
