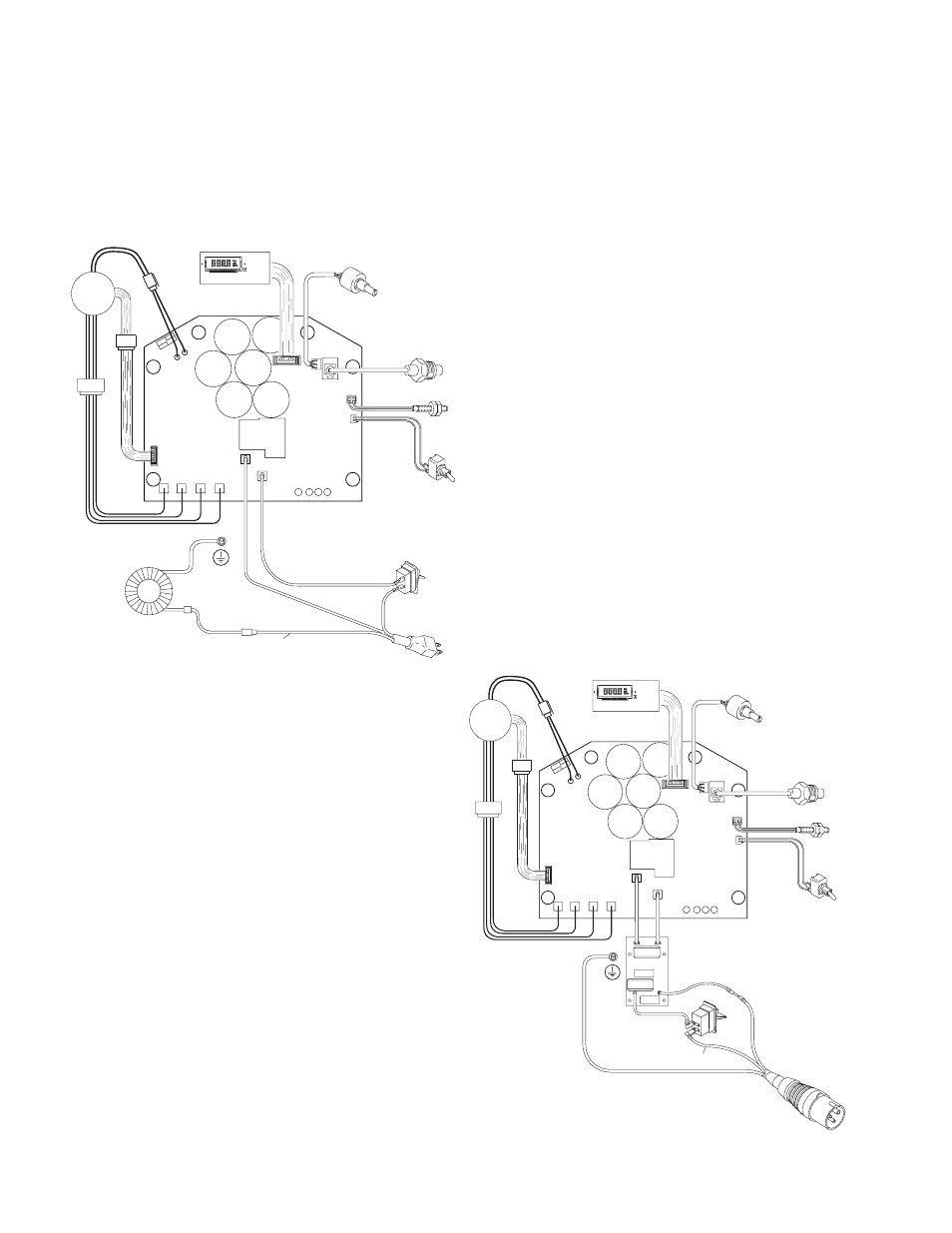

Wiring Diagram
42 311365G
Wiring Diagram
UltraMax II: 695/795 Lo-Boy Series B; 695 Hi-Boy Series D;
795 Hi-Boy Series C, 1095/Mark V Series B
(Models with SIX large capacitors on control board)
Black
Pressure
Transducer
Digital Display
ON/OFF
Switch
Power Plug
Black +
white
green/ground
Motor
green/ground
Potentiometer
AutoClean
Watchdog
Black
Motor
Leads
Motor
Sensor
Leads
Thermal
Switch
Black
Pressure
Transducer
Digital Display
ON/OFF
Switch
Power Plug
Motor
green/ground
Potentiometer
AutoClean
Watchdog
Motor
Leads
Motor
Sensor
Leads
Thermal
Switch
Black Blue
Blue
Brown
Brown +
Blue
Japan/Taiwan Models
UK Models
ti13484a
ti13485a
