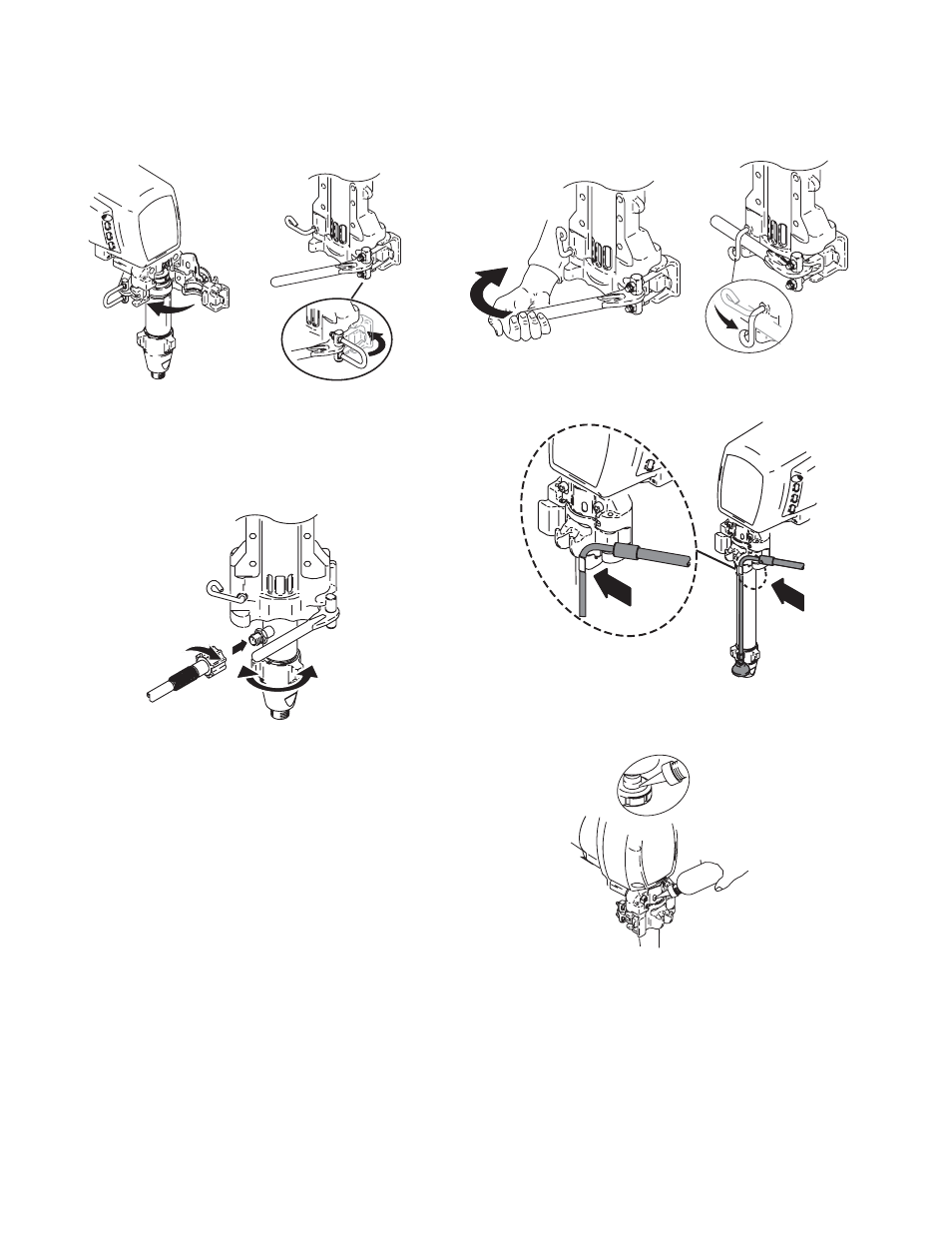

Displacement Pump Replacement 1095/1595/Mark V
38 311365G
4. Close pump door and rotate latch into
position. Do not tighten latch.
5. Rotate pump to align with paint hose.
Connect paint hose and hand tighten to 70
in-lb.
6. Tighten latch and rotate latch lock into
locked position.
7. Attach drain hose to sprayer.
8. Fill pump with Graco TSL until fluid flows
onto top of seal.
