Displacement Pump Replacement for 695/795
34 311365G
Displacement Pump Replacement for 695/795
See pump manual 310643 or 310894 for pump
repair instructions.
See manual 311362, 311363, or 311364 for
applicable sprayer part number references.

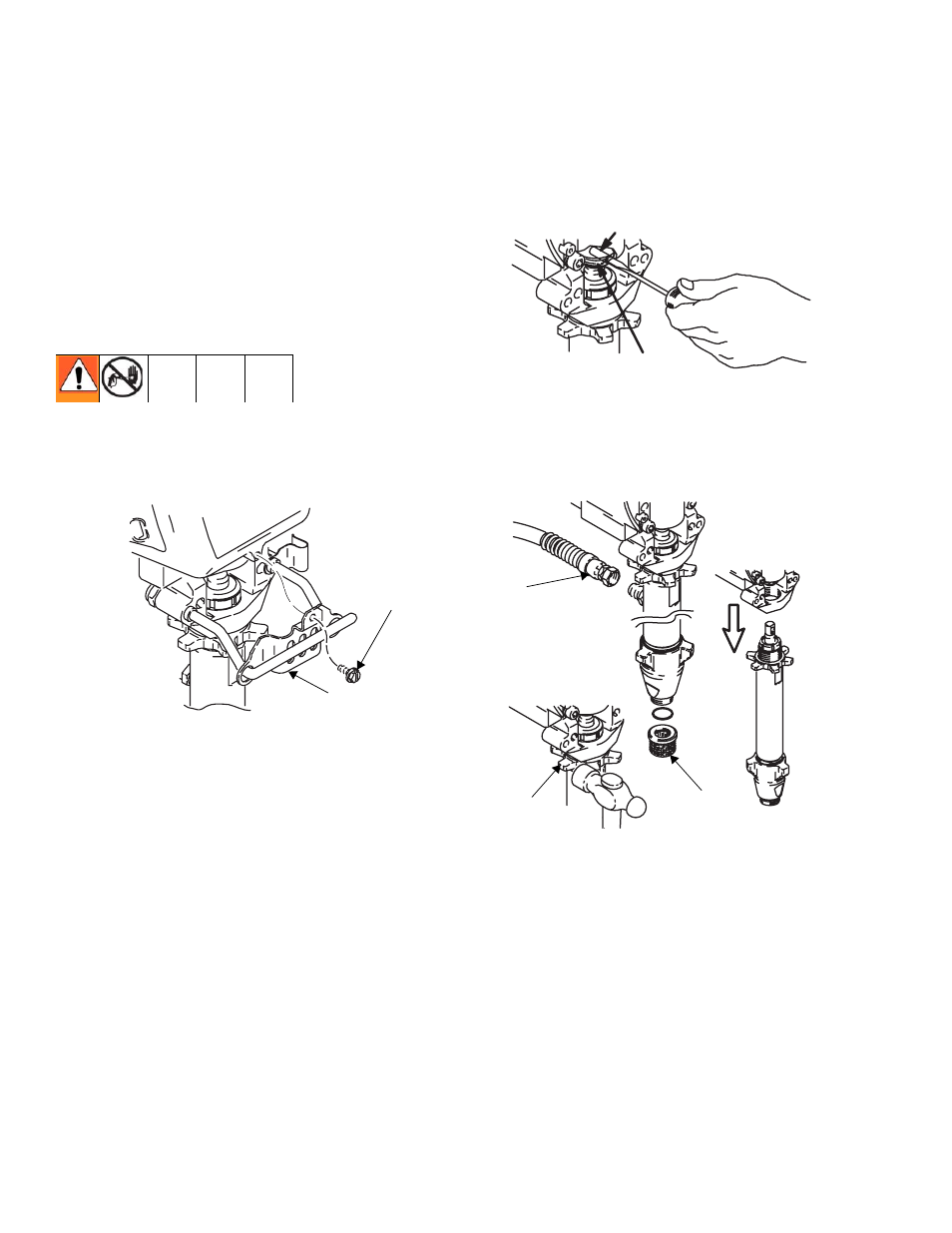

Removal
1. Flush pump
.
Relieve pressure; page 9.
2. Remove screw (31) and slide pump rod
shield (108) forward.
3. Cycle pump in JOG mode until pump pin
(44) is in position to be removed. Turn
power switch OFF and unplug power cord.
Push up retaining ring (43) and push pump
pin out.
4. Remove suction tube (76), hose (94) and
any washers and o-rings.
5. Loosen pump jam nut (56). Unscrew pump.
ti7170a
108
31
ti7168a
43
44
ti7167a
94
76
56
