The table below describes the connectors on the GXP-2000 phone:
EXT
Extension connection for extended keypad(will
implement in the future)
LAN/PoE
10/100 Switch LAN port for connecting to Ethernet,
support PoE (802.3af) draw power from both spare line
and signal line
PC 10/100 Switch port for connecting PC
POWER 5V power port
HEADSET 3.5mm Headset port

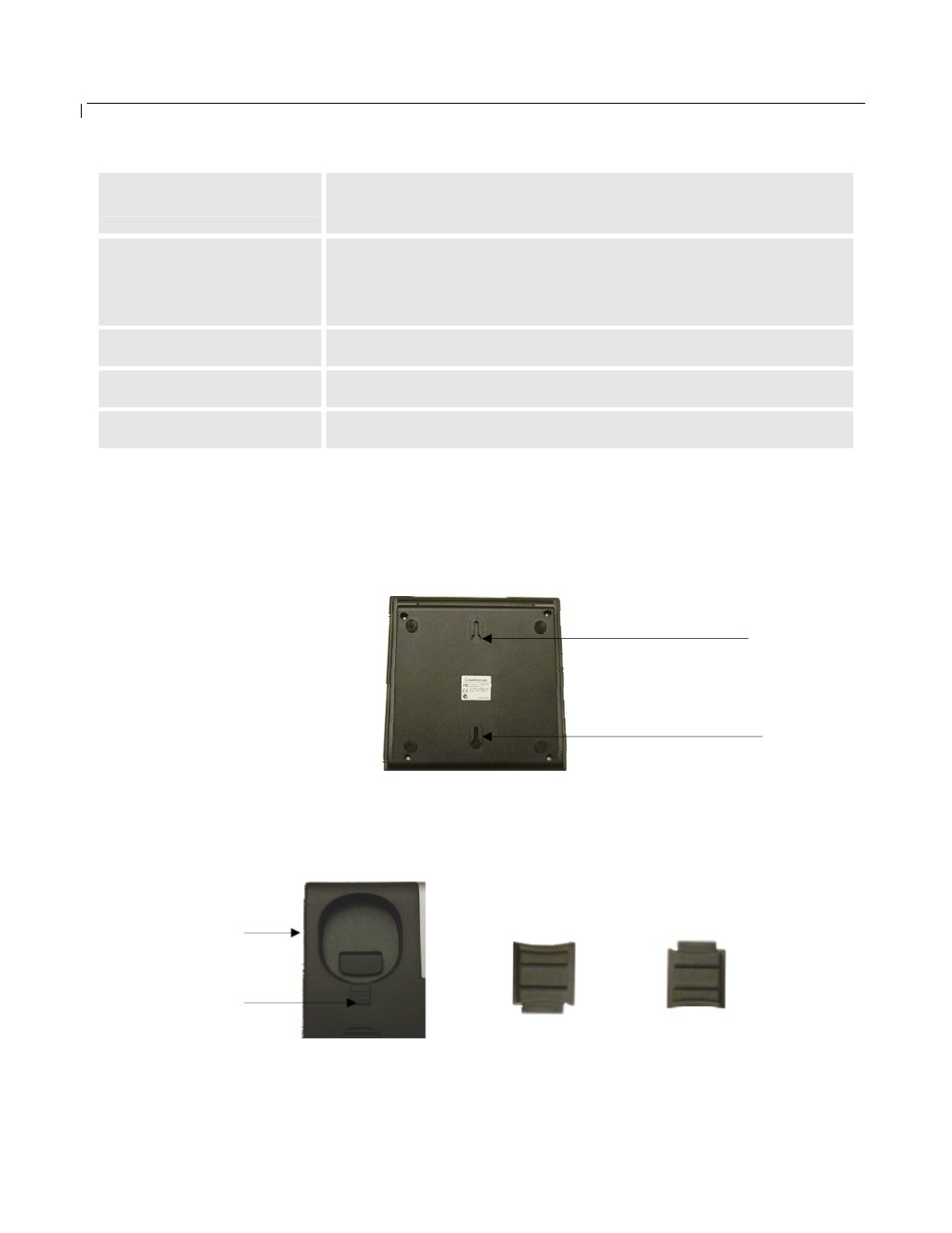

2.3 Wall Mount
GXP-2000 can be wall mounted. There are two wall mount holes on the bottom of the
GXP-2000 main body:
User can simply place the device against the wall with two holes placed to the fixed
hanger position on the wall.
Tab
Handset
Rest
Tab with
extension down
Tab with
extension up
Top Wall
Mount hole
Bottom Wall
Mount hole
