Using GXP-2000 IP Phone
4.1 Getting Familiar with LCD

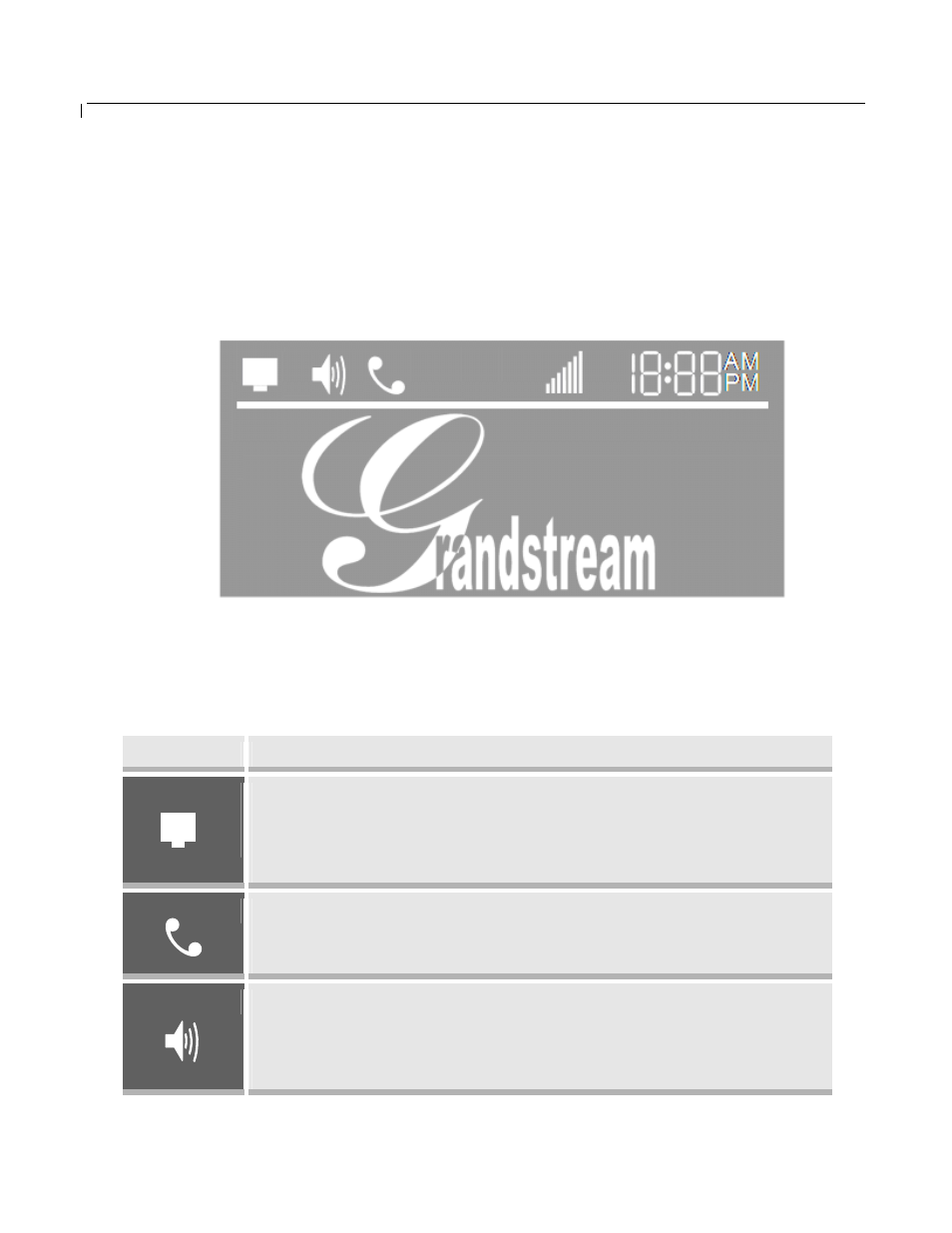

GXP-2000 phone has a numeric LCD of 64(rows) x 131 (columns) in pixels. Here is the
display when all segments illuminate:
The LCD is equipped with a backlight. When the phone is configured properly and in
the normal idle state, the backlight is off. Whenever an event occurs, the backlight turns
on automatically and brings the user’s attention.
Icon LCD Icon Definitions
Network Status Icon:
FLASH in the case of Ethernet link failure
OFF if IP address or SIP server is not found
ON if IP address and SIP server are located
Phone Status Icon:
OFF when the handset is on-hook
ON when the handset is off-hook
Speaker Phone Status Icon:
FLASH when phone rings or a call is pending
OFF when the speakerphone is off
ON when the speakerphone is on
