Gas-Fired Products PTS Series 100 - Manual (Page 53)

Form #43343530
–52– JJuly 08
ALL ILLUSTRATIONS ARE INTENDED TO GIVE THE GENERAL IMPRESSION OF UNITS ONLY. OTHER COMBINATIONS OF 5 FT. AND 10 FT. SECTIONS,
AND ONES WITH OR WITHOUT THE ELBOW PACKAGE ARE POSSIBLE. PLEASE CONSULT WITH YOUR Space-Ray SALES REPRESENTATIVE. WE
RESERVE THE RIGHT TO ALTER ANY SPECIFICATION WITHOUT NOTICE.

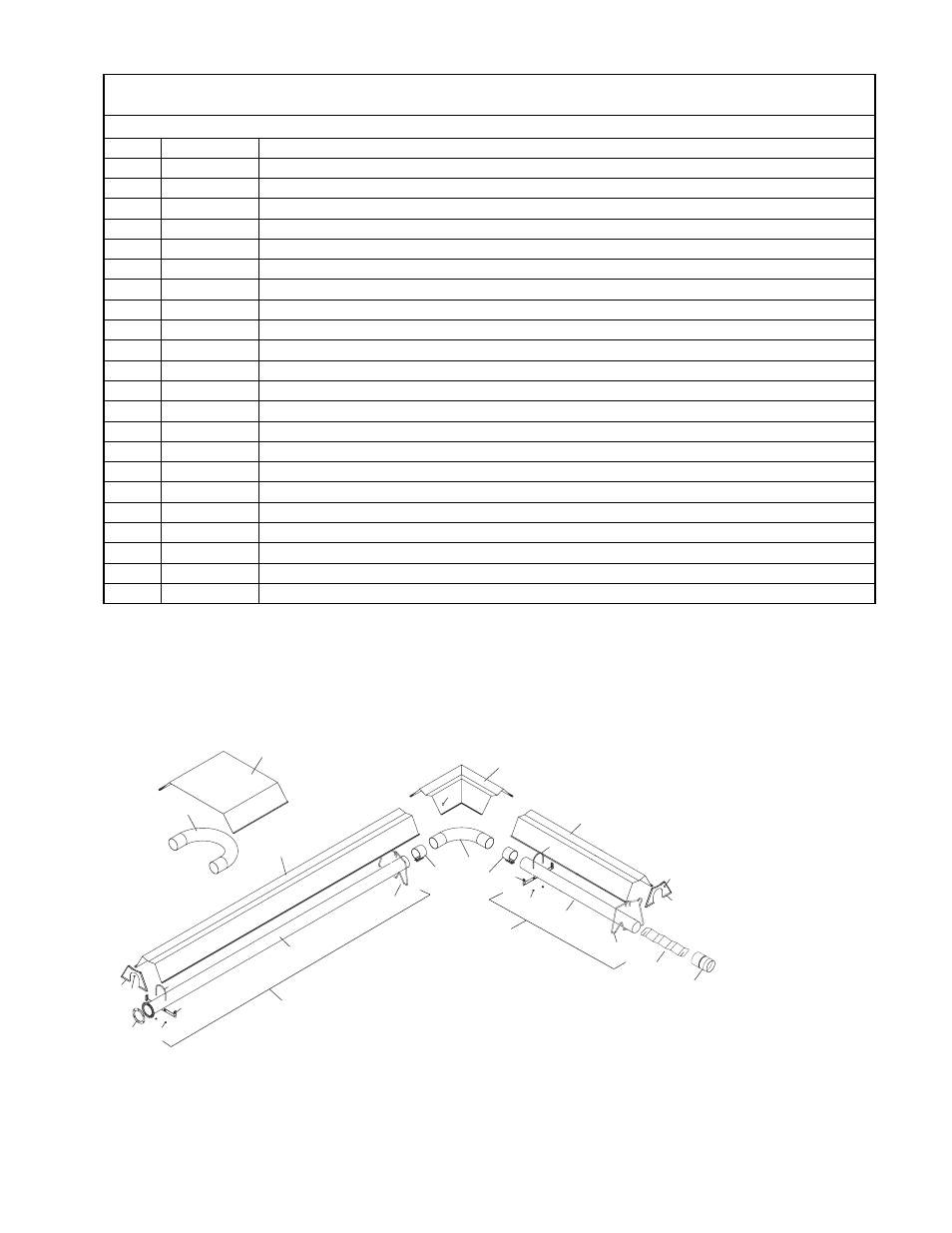

BODY COMPONENTS
ITEM PART NO. DESCRIPTION
1 02266010 Reflector Speed Clip
2 43980010 Wire Hanger
3 42873000 “U” Bolt Clamp, 4” OD Tube
3a 02127110 5/16-18 Hex Nut (2 per “U” Bolt)
4 43318000 Tube Support/Hanger Bracket, 13”
5 43319050 Reflector, 4’-11½” long (5’ section only; 1 per 5 ft. body section)
6 43319100 Reflector, 9’-11½” long (10’ section only; 1 per 10 ft. body section)
7 43320000 End Reflector (optional)
8 43342000 Corner Reflector Package (optional)
9 42921000 Tube Flange Gasket
10* 44028170 10’ Tube Assembly Kit, 4” OD, ATC steel with one 6-hole flange (start tube)
10a** 44028030 10’ Tube Assembly Kit, 4” OD, ALC steel with one 24-hole flange (start tube)
11 44028100 10’ Tube Assembly Kit, 4” OD, HRS steel without flanges (extension tube & exhaust tube)
11a 44028060 10’ Tube Assembly Kit, 4” OD, ALC steel without flanges (extension tube & exhaust tube)
12 44028120 5’ Tube Assembly Kit, 4” OD, HRS steel without flanges (extension tube & exhaust tube)
12a 44028010 5’ Tube Assembly Kit, 4” OD, ALC steel without flanges (extension tube & exhaust tube)
13 43208010 4” O.D. Elbow Package
14 02189020 #10 x ½” Self-Drilling Screw
15 30462980 4” OD Tube Compression Coupling w/bolts
16 43208020 4” OD U-Bend (Required for PTU Only)
17 43488000 U-Bend Reflector (PTU Option)
18 30504500 Flue Adapter Collar
19 44152240 Turbulator (see specifications section 5.0 for quantities)
* Required on 40ft, 50ft, 60ft and 70ft systems for mounting of control box.
** Required on 10ft, 20ft and 30ft systems for mounting of control box.
1
1
7
2
5
12,12a
14,15
8
14,15
13
6
10,10a,11,11a
7 1
9
2
4
3a
3
10 FT
BODY COMPONENTS
5 FT
BODY COMPONENTS
17
16
3
3a
4
14,18
19
