Gas-Fired Products PTS Series 100 - Manual (Page 10)

Form #43343530
July 08 –9–
Body Fastener Kit (included in body packages) 42907190 42907210 42907210 42907221
42873000 U-Bolt 2 4 4 6
02127110 Hex Nut, 5/16-18 5 8 8 13
02189020 HWHSM Screw, #10-16 x ½” TEKS 8 14 14 24
U-Bend Package 43208020 43208020 43208020 43208020
42873000 U-Bend 1 1 1 1
43318500 31” Tube Support/Hanger Bracket 1 1 1 1
30462980 Tube Coupling 1 1 1 1
02189020 HWHSM Screw, #10-16 x ½” TEKS 2 2 2 2
60Ft. System 70Ft. System
PTU Body Packages – Alumi-Therm/Aluminized
40 Ft. Pkg.
44137090
20 Ft. Pkg.
44135030
40 Ft. Pkg.
44137110
30 Ft. Pkg.
44136050
Part # Each Body Package Includes: Qty. Qty. Qty. Qty.
42912169 10 Ft. Tube with 6 Hole Flange (Alumi-Therm) 1 - 1 -
41932100 10 Ft. Tube less Flanges (Aluminized) 3 2 2 3
41932050 5 Ft. Tube less Flanges (Aluminized) - - 2 -
43319100 Reflector, 9’ 11½” 4 2 3 3
43319050 Reflector, 4’ 11 ½’ - - 2 -
30462980 Tube Coupling 3 2 4 3
43318000 Tube Hanger/Support Bracket, 13” 4 2 5 3
43980010 Wire Hanger 4 2 5 3
Body Fastener Kit (included in body packages) 42907210 42907219 42907220 42907200
42873000 U-Bolt 4 2 5 3
02127110 Hex Nut, 5/16-18 8 5 10 6
02189020 HWHSM Screw, #10-16 x ½” TEKS 14 8 18 10
U-Bend Package 43208020 43208020
42873000 U-Bend 1 1
43318500 31” Tube Support/Hanger Bracket 1 1
30462980 Tube Coupling 1 1
02189020 HWHSM Screw, #10-16 x ½” TEKS 2 2

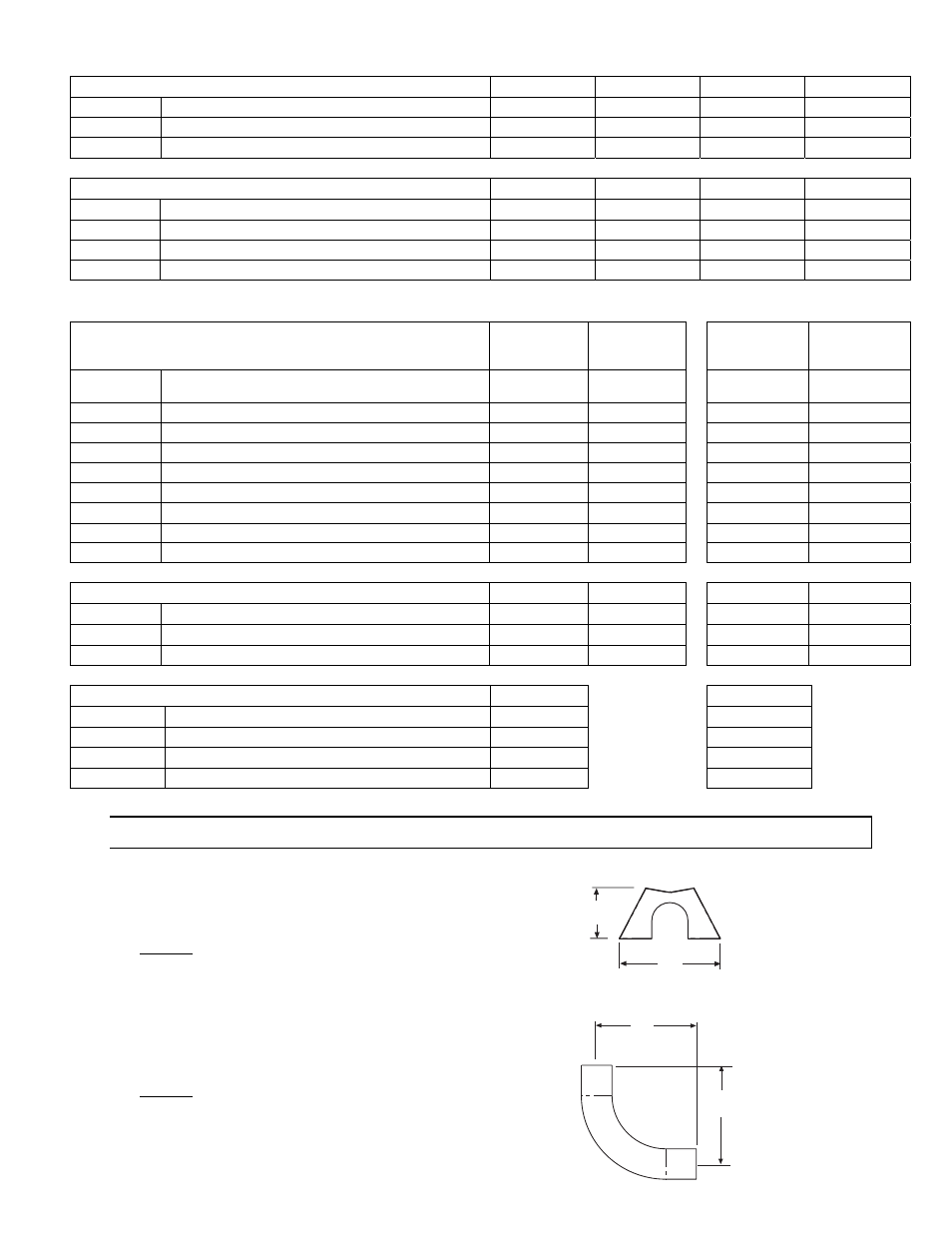

6.1) ACCESSORIES
A) End Reflector Accessory Package, Part #43341010
(1 pkg. per PTS Series or 2 pkgs. per PTU Series)
Contains:
End Reflector, #43320000……QTY–2
Speed Clips, #02266010……QTY–4
B) Elbow Accessory Package, Part #43208010
(Option for PTS Series Only)
Contains:
Elbow, #431750010……QTY–1
#10-16 x ½ Self-Drilling Screws, #02189020……QTY–2
Tube Coupling, #30462980……QTY–1
13”
(33cm)
13”
(33cm)
6”
(15cm)
12”
(30cm)
END REFLECTOR
