24 www.goodmanmfg.com SS-CPC90-150 SS-CPC90-150 www.goodmanmfg.com 25
P
roduct
S
PecificationS
P
roduct
S
PecificationS
U
nit
C
learanCes
e
leCtriCal
e
ntranCe
l
oCations
11⅝”
10 3 /
16
”
3”
Low-Voltage Entrance
High-Voltage Entrance
Dimples Mark Drill Locations
36” Min.
48”
75”
48”
48”

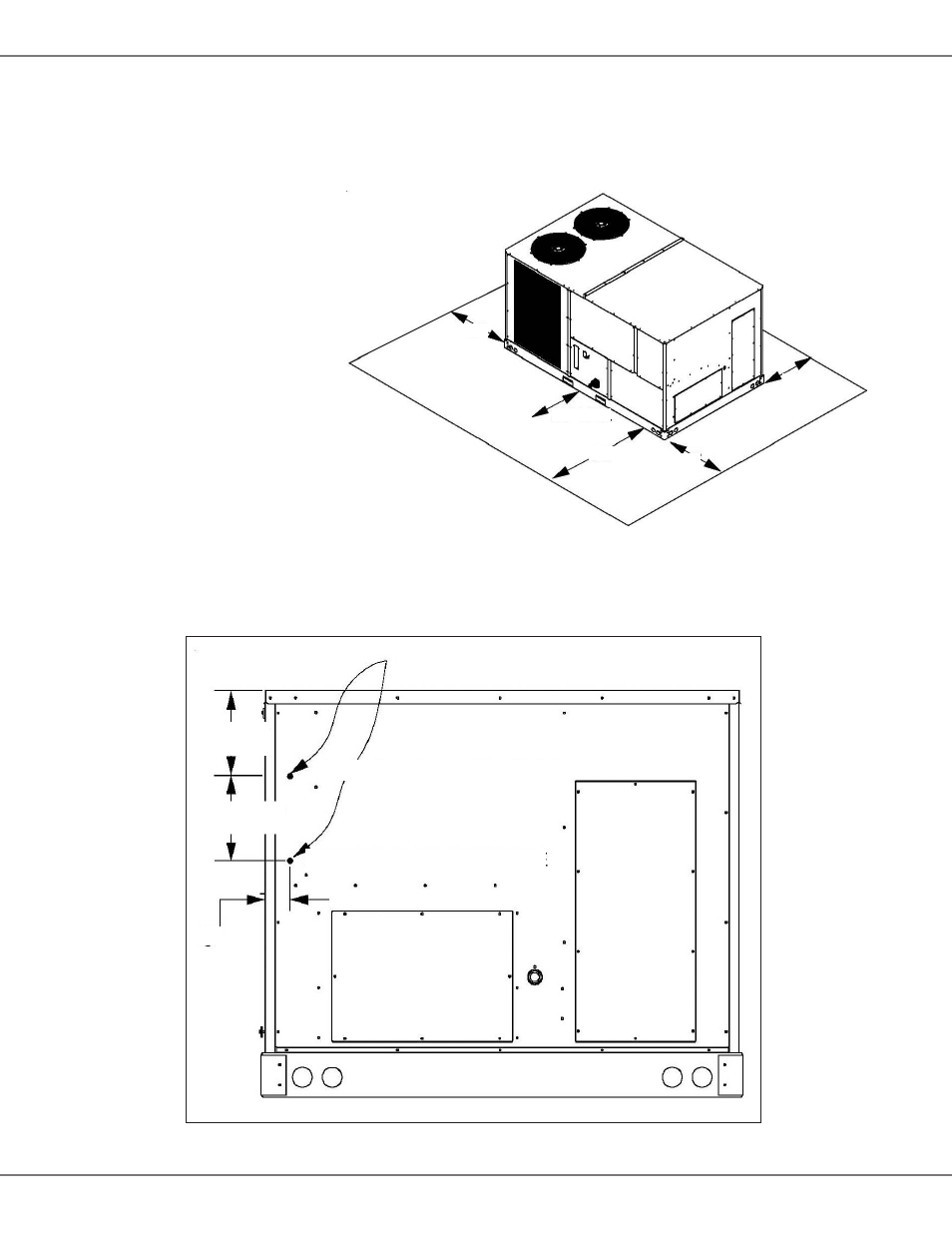

Maintain an adequate clearance around the unit for safety, service, maintenance,
and proper unit operation. Leave a total clearance of 75” on the main control panel
side of the unit for possible removal of fan shaft, coil, electric heat, and
gas furnace. Leave a clearance of 48” on all other sides of the unit for possible
compressor removal or service access, and to ensure proper ventilation
and condenser airflow. Do not install the unit beneath any obstruct-
ion. Install the unit away from all building exhausts to inhibit
ingestion of exhaust air into the unit’s fresh-air intake.
