Garland GAS PIZZA OVENS - Manual (Page 4)

Part # 1844063 (08/06) Page 4

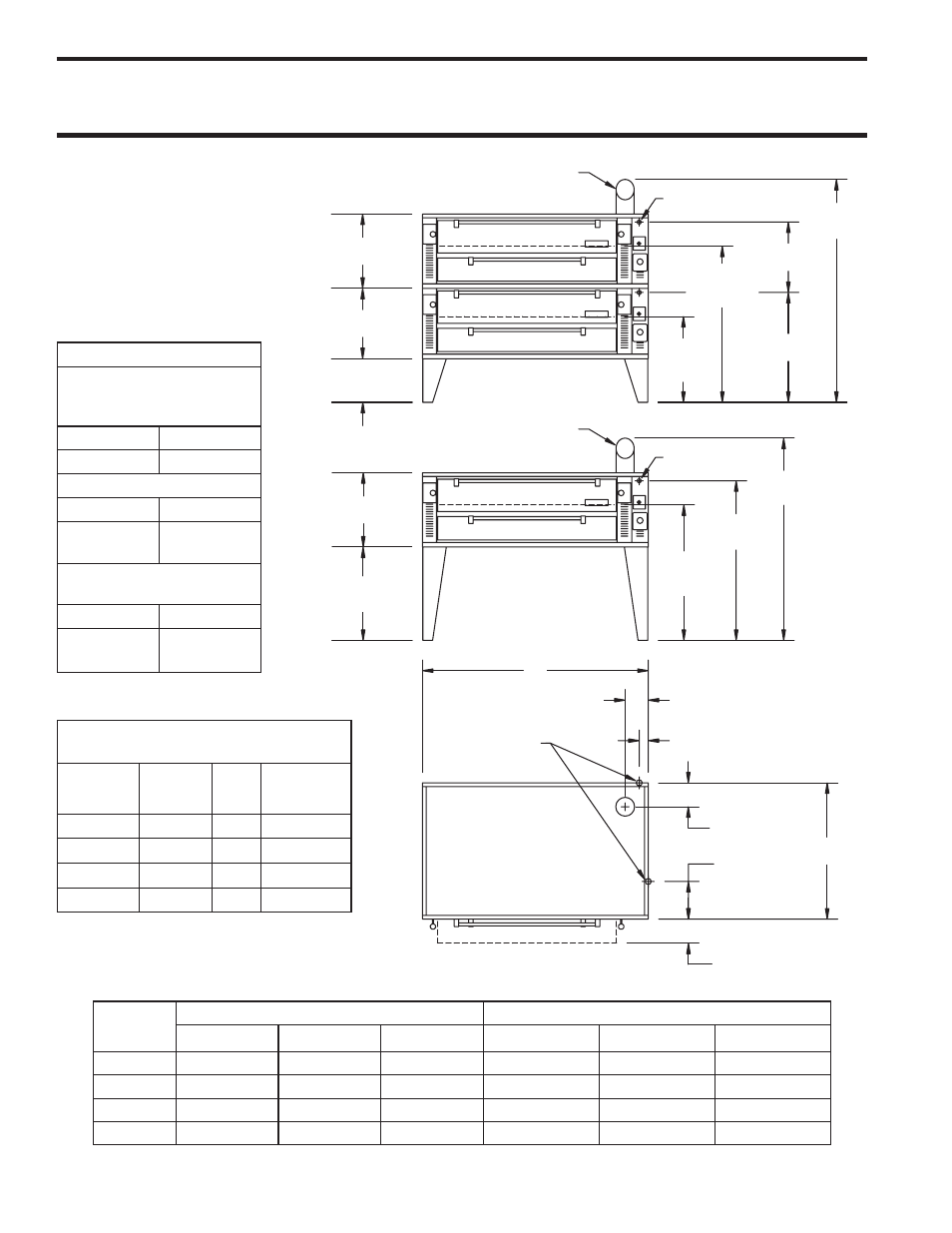

DIMENSIONS AND SPECIFICATIONS GPD SERIES
3"
[76mm]
7-15/16"
[201mm]
12-1/2"
[318mm]
45-1/4"
[1149mm]
8"
[203mm]
7-21/32"
[195mm]
3/4"N.P.T.
[19mm]
GASINLET
14-1/2"
[368mm]
23-3/8"
[594mm]
24-21/32"
[626mm]
28-1/2"
[724mm]
DECK
36-1/2"
[927mm]
REAR&SIDE
GASINLET
DIA6"
[152mm]
74-1/32"
[1880mm]
23-3/8"
[594mm]
51-7/8"
[1318mm]
DECK
31"
[787mm]
24-21/32"
[626mm]
45"
[1143mm]
DECK
53"
[1346mm]
67-5/32"
[1705mm]
DIA6"
[152mm]
Installation Notes:
Non-Combustible &
Combustible Wall
Clearances
Sides Back
1” (25mm) 6” (152mm)
Entry Clearance:
Crated Uncrated
35”
(889mm)
26”
(660mm)
Manifold
Operating Pressure:
Natural Propane
6” WC
(15mbar)
10” WC
(25mbar)
INPUT SPECIFICATIONS
Natural Or Propane
MODEL BTU/HR KW
GAS
INLET
GPD48 96,000 28.1 3/4" N.P.T.
GPD60 122,000 35.7 3/4" N.P.T.
GPD48-2 192,000 56.2 1" N.P.T.
GPD60-2 244,000 71.4 1" N.P.T.
Ratings shown are for natural gas
installations up to 2000 feet (610m)
above sea level. BTU input ratings must
be de-rated for high altitude installations.
Specify altitude of product if over 2000
feet (610m)
This product is not approved for residential
use
MODEL
NUMBER
Interior Dimensions: In (mm) Exterior Dimensions In (mm)
W H D W H (w/NSF legs) D
GPD48 48 (1220) 8 (203) 36 (914) 63 (1600) 52-3/4 (1340) 45-1/4 (1149)
GPD60 60 (1524) 8 (203) 36 (914) 75 (1905) 52-3/4 (1340) 45-1/4 (1149)
GPD48-2 48 (1220) 8 (203) 36 (914) 63 (1600) 62-1/2 (1588) 45-1/4 (1149)
GPD60-2 60 (1524) 8 (203) 36 (914) 75 (1905) 62-1/2 (1588) 45-1/4 (1149)
