Grizzly G0444 User Manual
Page 59
G0444/G0444Z 10" Table Saw
-57-
1
2
3
4
3
4
1
2
MOTOR WIRES
GREEN (GROUND)
TO 110 VOLT
POWER SUPPLY
MOTOR WIRES
220 VOLT
GREEN (GROUND)
TO 220 VOLT
POWER SUPPLY
NOTE: THE WIRES FROM THE
POWER SUPPLY, EXCEPT THE
GREEN GROUND WIRE, ARE
INTERCHANGABLE, THEREFORE
COLORS ARE NOT SPECIFIED.
Disconnect power from machine
before performing any electrical
service. Failure to do this will
result in a shock hazard, leading
to injury or death.
110 VOLT

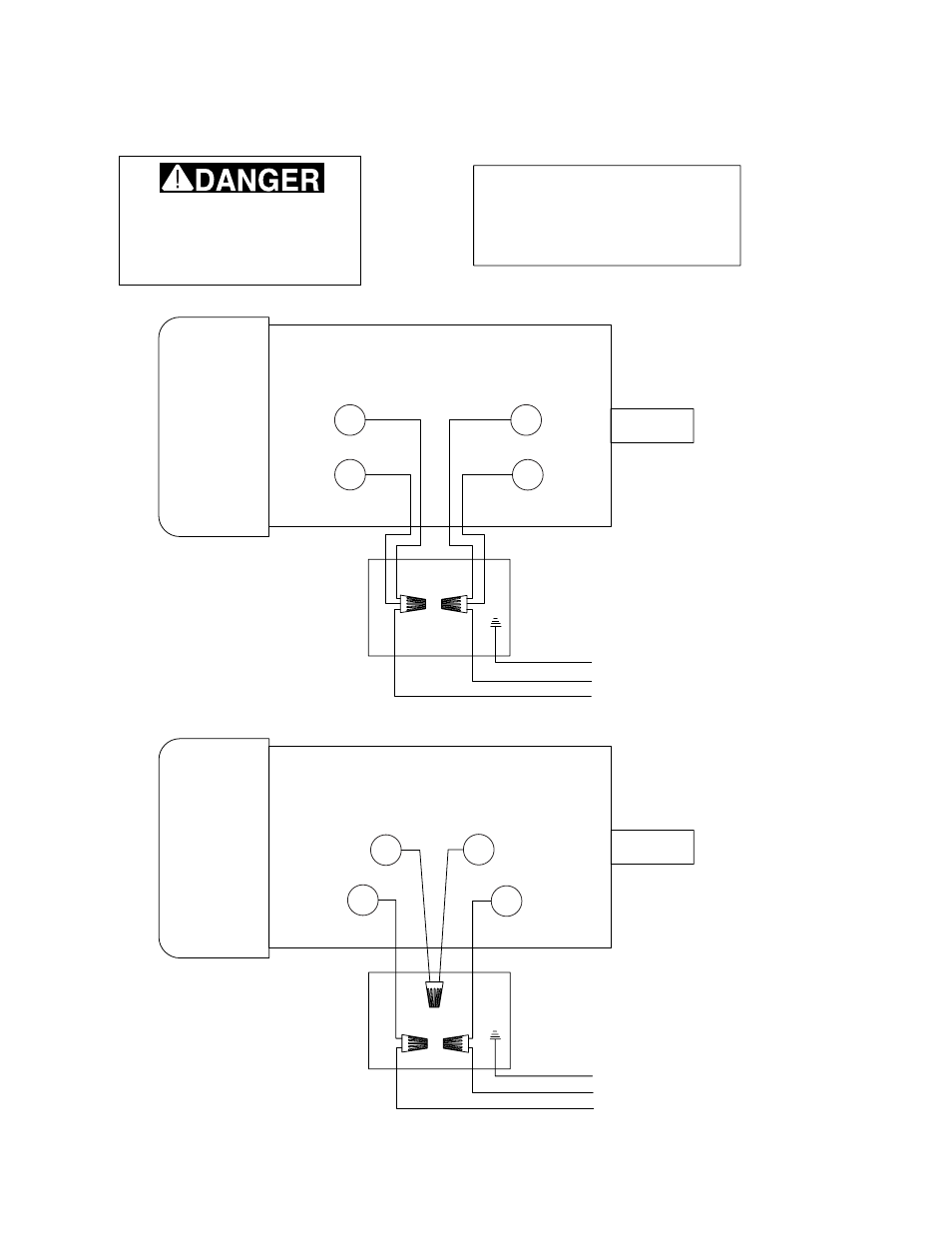

G0444 & G0444Z Wiring Diagrams
