-22- G0444/G0444Z 10" Table Saw
6. Tighten the hex nut on the motor bracket to
secure the motor bracket shaft into place.
7. Slide the motor assembly onto the two shafts
protruding from the back of the saw (
Figure
21 ).

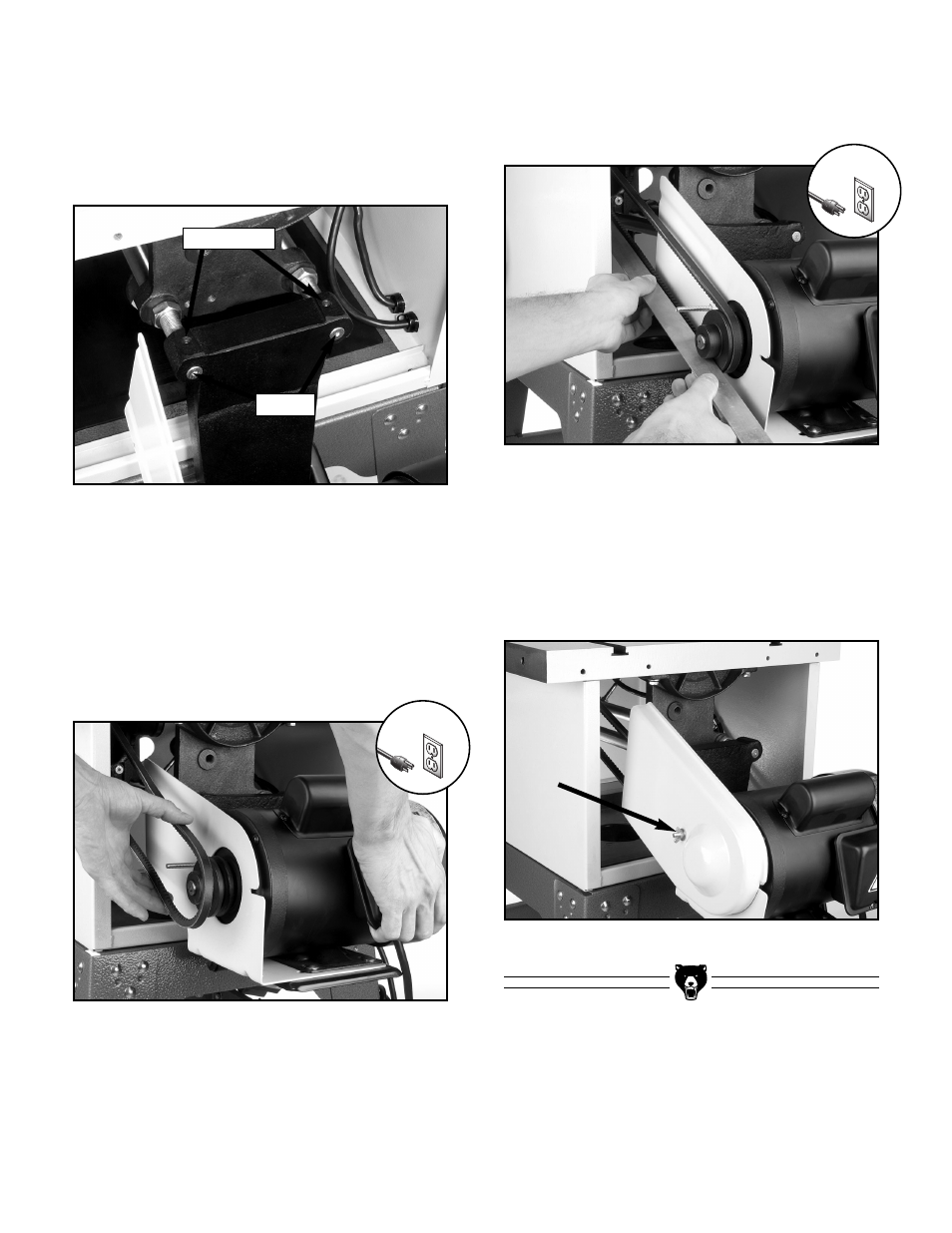

Figure 21. Installed motor assembly.
Figure 22. V-belt installation.
8. Using a 4mm Allen wrench, tighten the two
setscrews (
Figure 21 ) in the motor bracket to
secure the motor assembly to the shafts.
9. Raise the motor assembly and slip the V-belt
over the motor and arbor pulleys (
Figure 22 ).
Lower the motor assembly to tension the V-
belt.
!
Figure 23. V-belt alignment.
10. Place a straightedge across the arbor pulley
and the motor pulley. The straightedge
should align across the face of both pulleys
(
Figure 23 ).
— If the pulleys are not aligned, loosen the
bolts tightened in step 4 and reposition
the motor.
Figure 24. Installed pulley cover.
11. Secure the V-belt guard to the V-belt plate
with the brass wing nut (
Figure 24 ).
!
Setscrews
Shafts
