-24- G0444/G0444Z 10" Table Saw
Install the Shop Fox ® fence and rails according to
the fence manual.

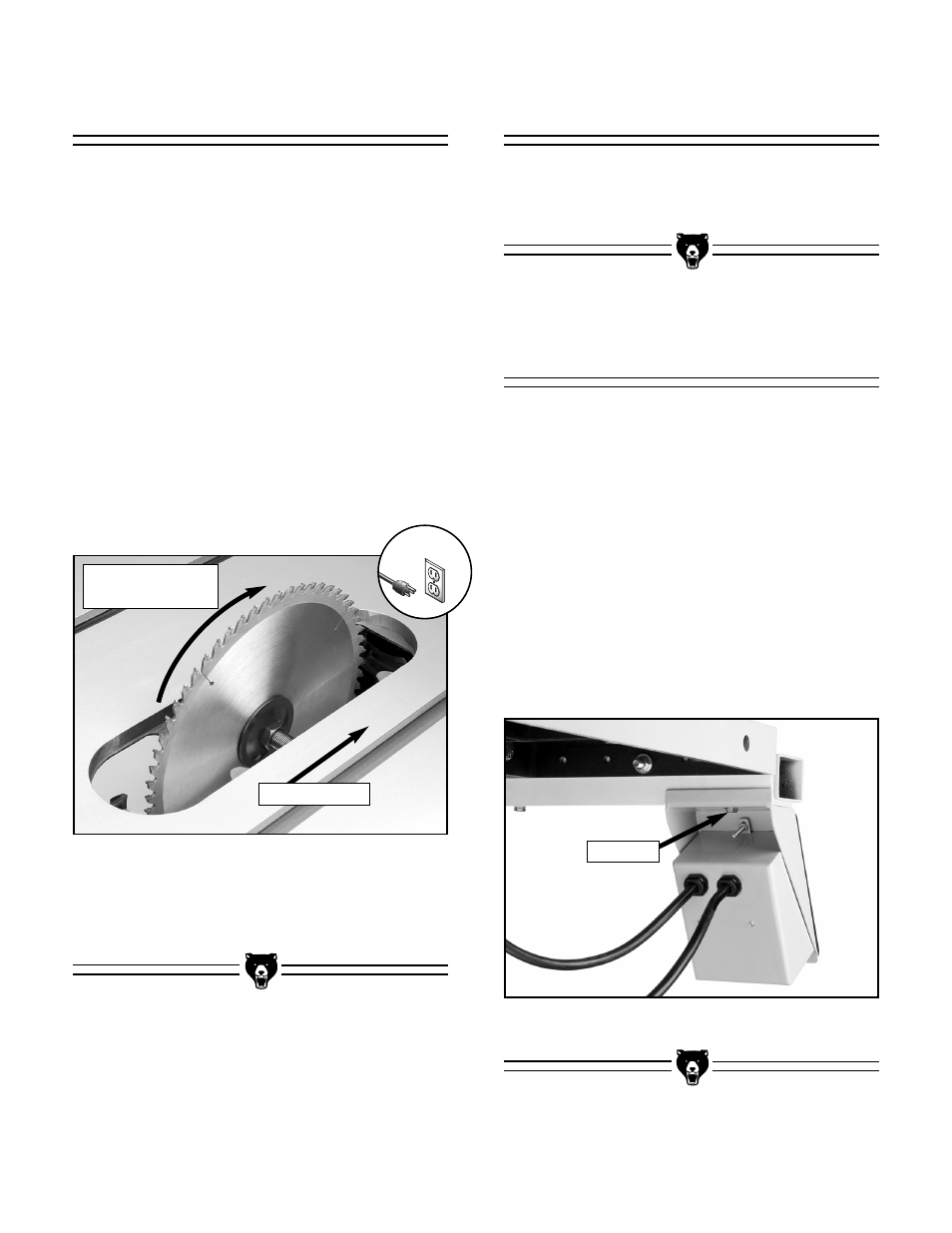

Figure 28. Installed switch.
Components and Hardware Needed: Qty
Switch ................................................................1
Tools Needed:
10mm Wrench or Socket ....................................1
To install the switch:
1. Remove the far left hex bolt that secure the
front fence rail to the fence bracket.
2. Using a 10mm wrench, secure the switch to
the fence rail with the hex bolt (
Figure 28 )
removed in step 1 .
Components and Hardware Needed: Qty
Blade (Not Included) ..........................................1
Arbor Nut (Left Hand Threads) ..........................1
Arbor Flange ......................................................1
Tools Needed:
23mm Wrench ....................................................1
To install the blade guard:
1. Using a 23mm wrench, loosen the arbor nut.
Note—
The arbor nut has left hand threads.
2. Remove the arbor nut and the arbor flange.
3. Slide the blade over the arbor . Note— Make
sure the teeth are pointing in the correct
direction (Figure 27).
4. Re-install the arbor flange and the arbor nut
and tighten them against the blade.
Figure 27. Correct blade direction.
Front Of Saw
Hex Bolt
Teeth Direction
& Blade Rotation
Switch
Fence Blade
!
