G0444/G0444Z 10" Table Saw
3.
Using a 12mm wrench, secure the blade
guard mounting bracket to the blade guard
mounting shaft by tightening the hex bolts on
the bracket. Note—
Do not worry about pre-
cise placement at this time.
4.

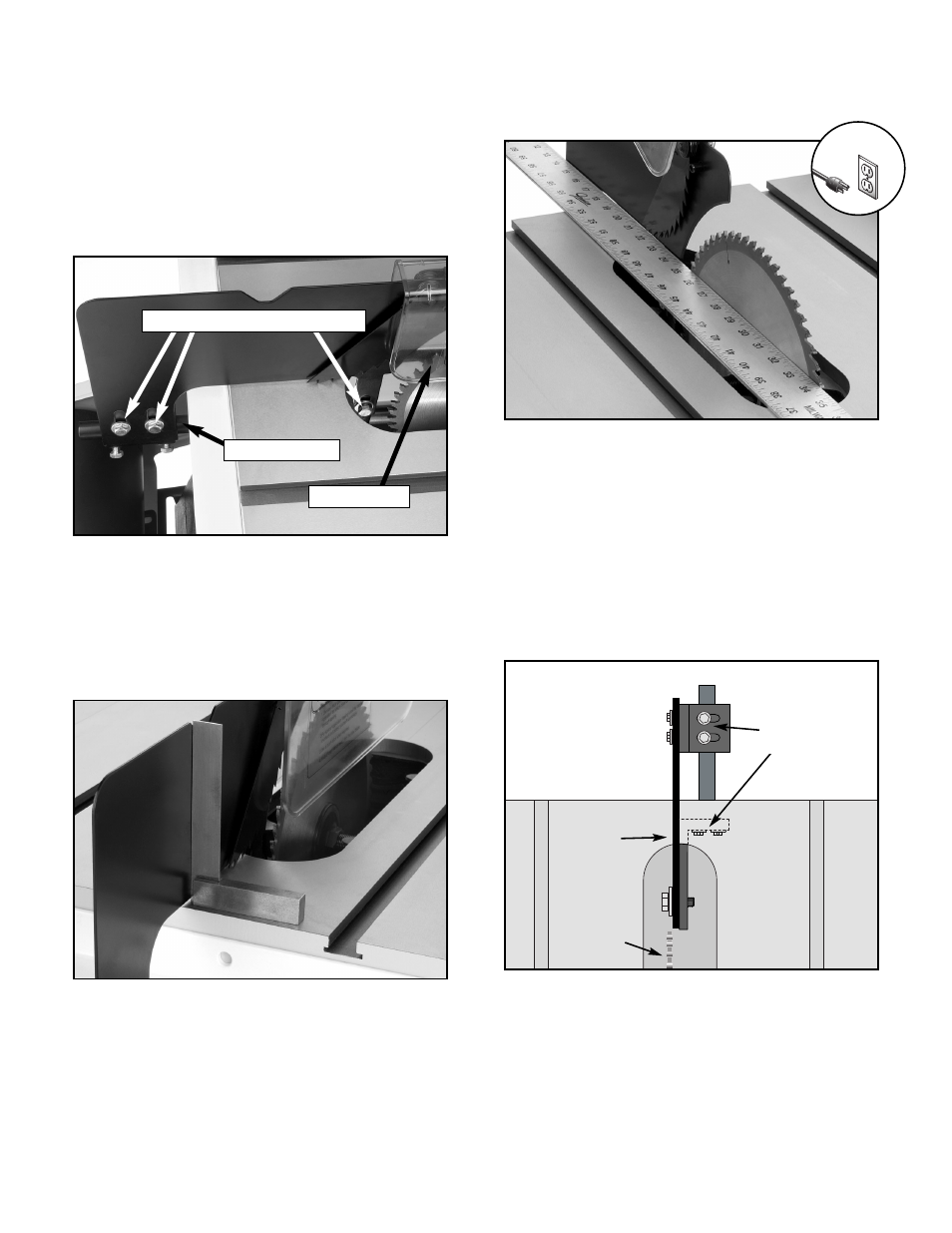

Slide the blade guard fingers onto the blade
guard mounting bolts (
Figure 31
).
Figure 31.
Blade guard components.
Blade Guard Mounting Bolts
Blade Guard
Support Shaft
5.
Tighten the bolts to secure the blade guard.
6.
Using a machinist's or a combination square,
align the face of the blade guard perpendicu-
lar to the table surface (
Figure 32
).
Figure 32.
Blade guard perpendicular
to the table.
Figure 34.
Incorrect blade guard alignment.
Figure 33.
Checking alignment of blade guard.
7.
Place a straightedge against the face of the
saw blade and the blade guard (
Figure 33
).
— If the saw blade and the blade guard are
aligned, then skip ahead to the next sub-
section.
— If the blade guard is not aligned correctly
behind the blade (
Figure 34
), then adjust
the blade guard mounting bracket and the
front blade guard support so they align
correctly (
Figure 35
).
Splitter
Adjust Blade
Guard Here
Blade
!
