-10- G0444/G0444Z 10" Table Saw
The following list outlines the voltage required to
operate the saws, as well as the amperage draw
of their motors:
G0444
110V (prewired) .................................... 18 Amps
220V ...................................................... 9 Amps
G0444Z
110V ......................................................24 Amps
220V (prewired) ....................................12 Amps
Use the following guidelines when choosing a cir-
cuit breaker (circuit breakers rated any higher are
not adequate to protect the circuit):
G0444
110V (prewired) ..........................20 Amp, 1 Pole
220V ..........................................10 Amp, 2 Pole
G0444Z
110V ............................................25 Amp, 1 Pole
220V (prewired) ..........................15 Amp, 2 Pole
The following list and figures outline the correct
plug and receptacle to use:
G0444
110V (prewired)................................ NEMA 5-15
220V................................................ NEMA 6-15*
*
Not Included

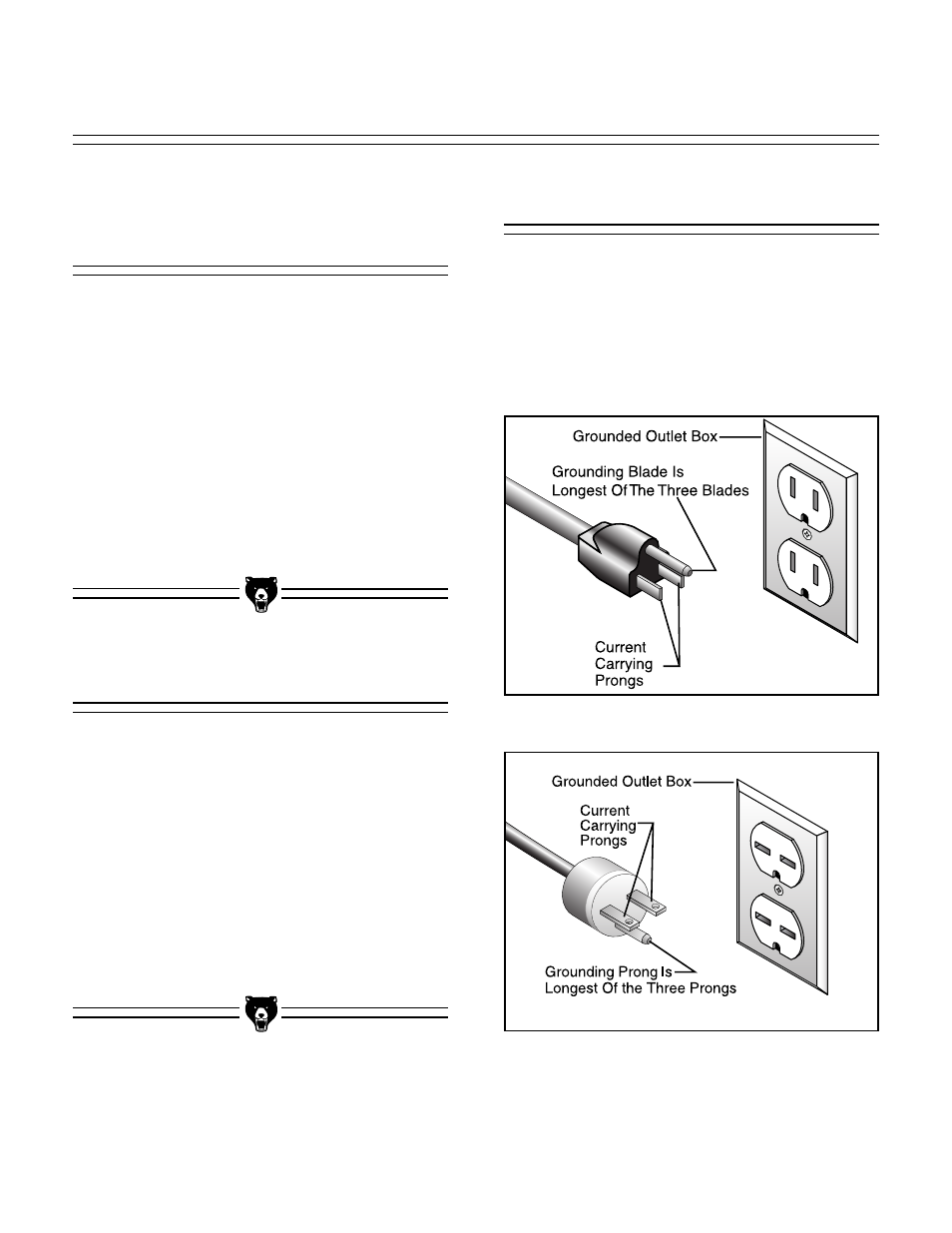

Figure 4. NEMA 5-15 plug and receptacle.
Figure 5. NEMA 6-15 plug and receptacle.
Plug & Receptacle
Circuit Breaker
Voltage & Amperage
Draw
SECTION 3: CIRCUIT REQUIREMENTS
