-14- G0444/G0444Z 10" Table Saw
DESCRIPTION QTY
A. Table Saw Unit (Not Shown) ..................1
B. V-Belt Guard............................................1
C. Motor ......................................................1
D. Stand Accessory Hanger Package..........1
E. Motor Plate ..............................................1
F. Motor Bracket ..........................................1
G. Motor Pivot Shaft (Not Shown)................1
H. Blade Guard Mounting Bracket*..............1
I. Blade Guard Mounting Shaft*..................1
J. V-Belt ......................................................1
K. Dust Hood................................................1
L. Blade Guard* ..........................................1
M. Miter Gauge Bar ......................................1
N. Miter Gauge Body ..................................1
O. Miter Gauge Handle ................................1
P. V-Belt Plate..............................................1
*Located in the Blade Guard Hardware Bag
B
C
D
E F
I H
J
K
L
M
N
O
P

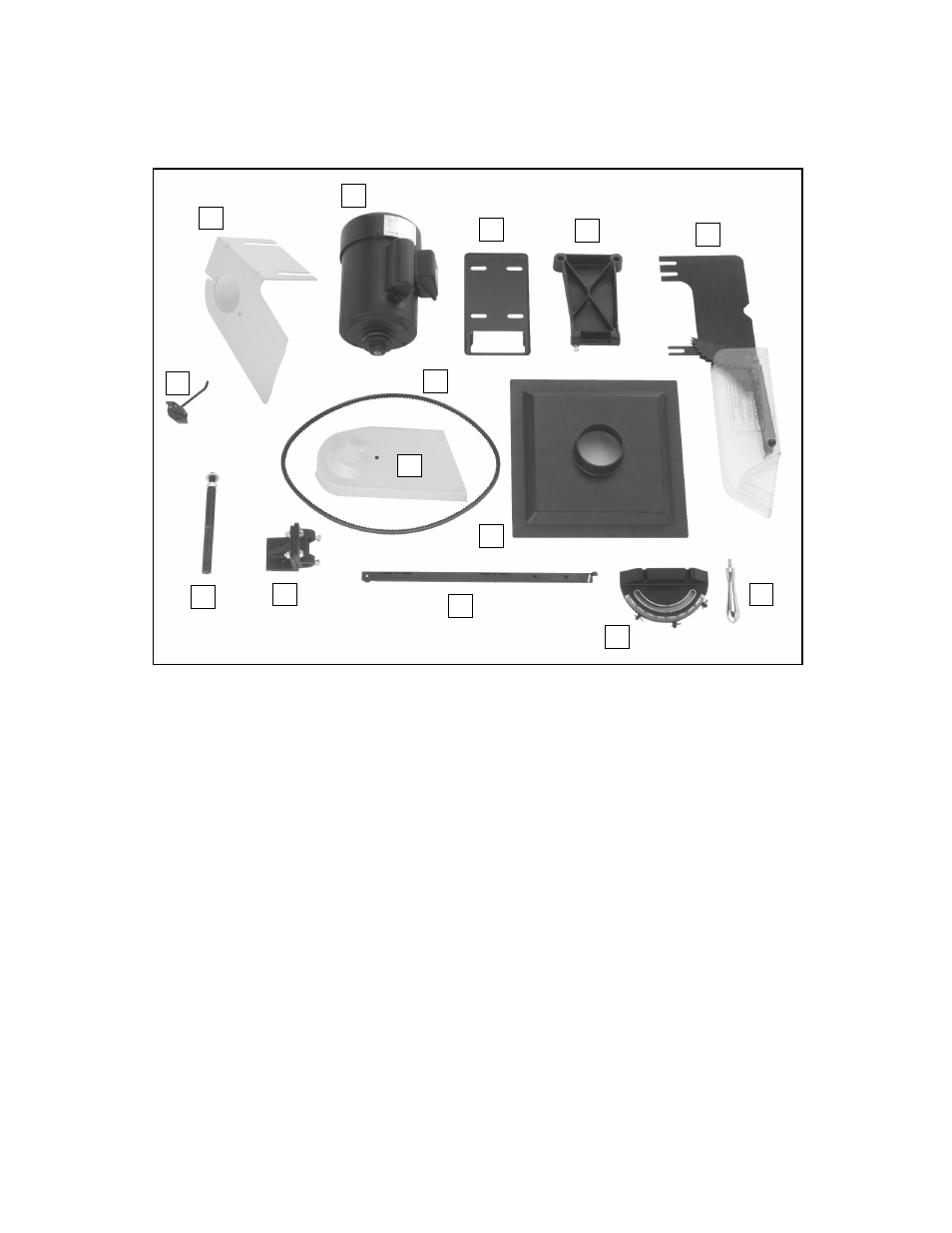

Figure 9. Parts layout.
