36 308-548
Technical Data
Power Requirements 120 VAC,60Hz, . . . . . . . . . . . . . . . . . . . .
1 phase, 15 amp minimum
Generator 3000 Watt minimum . . . . . . . . . . . . . . . . . . . . . . . . . .
Working Pressure Range 0–2750 psi (0 – 195 bar) . . . . . . . . .
Motor 1/2 hp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cycles/Gallon (liter) 620 (164) . . . . . . . . . . . . . . . . . . . . . . . . . . .
Delivery 0.33 gpm (1.25 lpm) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tip Size one gun to 0.019 new tip . . . . . . . . . . . . . . . . . . . . . . . .
with latex at 2000 psi (138 bar)
Power Cord No. 14 AWG, 3 wire, 6’ (1.8 m) . . . . . . . . . . . . . . .
Inlet Paint Strainer 12 mesh (1525 micron) . . . . . . . . . . . . . . . .
Stainless Steel Screen, reusable
Pump Inlet Size 1/2 npt(f) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid Outlet Size 1/4 npsm . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wetted Parts:
Displacement Pump Stainless steel, Carbon steel, . . . . . . .
PTFE,R Aluminum, Polyethylene, DelrinR, Leather
NOTE: and Delrin are trademarks of the DuPont Company.
Dimensions
Weight (dry w/o packaging) 35 lb (16 kg) . . . . . . . . . . . . . . . . .
Height 18 in. (457 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Length 15 in. (381 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Width 12.5 in. (318 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
French 185–956
Spanish 185–961
German 186–041
Greek 186–045
Korean 186–049
English 185–953
DANGER LABELS
The English language DANGER label shown on
page 1 is also on your sprayer. If you have paint-
ers who do not read English, order one of the fol-

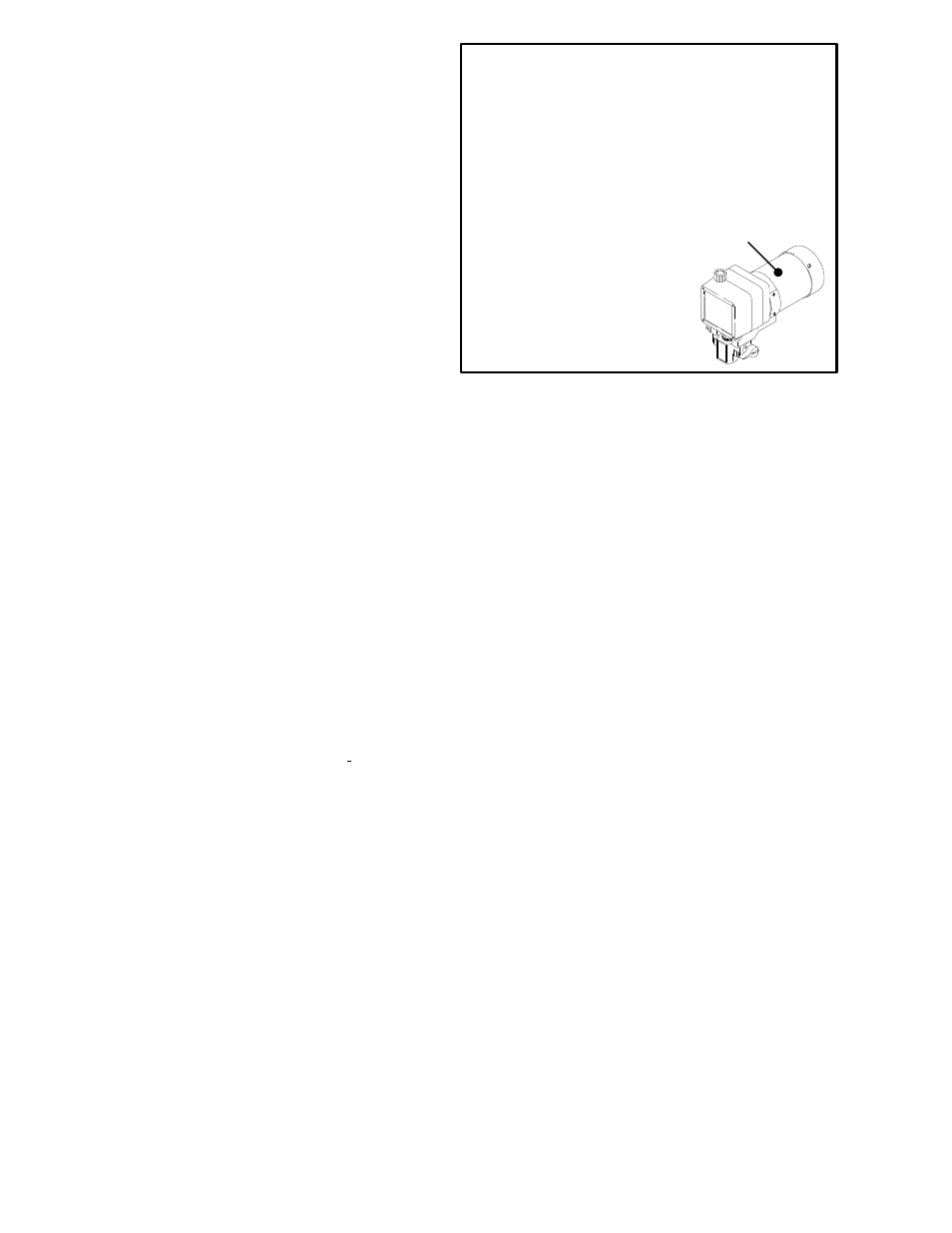

lowing labels to apply to your sprayer. The draw-
ing below shows the best placement of these la-
bels for good visibility.
Order the labels directly from Graco, free of
charge: 1–800–328–0211
Apply other
language here
04653
Graco Phone
Numbers
TO PLACE AN ORDER, contact your Graco distrib-
utor, or call this number to identify the distributor
closest to you: 1–800–367–4023 Toll Free
FOR TECHNICAL ASSIST ANCE, service repair
information or assistance regarding the application of
Graco equipment: 1–800–543–0339 Toll Free
The Graco Warranty and Disclaimers
WARRANTY
Graco warrants all equipment manufactured by it and bearing its name to be free from defects in material and workmanship on the date of sale by
an authorized Graco distributor to the original purchaser for use. As purchaser’s sole remedy for breach of this warranty, Graco will, for a period of
twelve months from the date of sale, repair or replace any part of the equipment proven defective, with the exception of defects in parts on the drive
train/gear box on EM and GM sprayers or power train on EH and GH sprayers, which will be repaired or replaced for twenty-four months from the
date of sale for Gas–Hydraulic (GH) and Gas-Mechanical (GM) sprayers and for thirty-six months from the date of sale for Electric-Mechanical
(EM), Electric-Hydraulic (EH), 390st and 490st sprayers . This warranty applies only when the equipment is installed, operated and maintained in
accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for, any malfunction, damage or wear caused by faulty installation, misapplication, abra-
sion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non–Graco component parts. Nor shall
Graco be liable for malfunction, damage or wear caused by the incompatibility with Graco equipment of structures, accessories, equipment or mate-
rials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or
materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claim. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the origi-
nal purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made at
a reasonable charge, which charges may include the costs of parts, labor and transportation.
DISCLAIMERS AND LIMITATIONS
The terms of this warranty constitute purchaser’s sole and exclusive remedy and are in lieu of any other warranties (express or implied), including
warranty of merchantability or warranty of fitness for a particular purpose, and of any non–contractual liabilities, including product liabilities,
based on negligence or strict liability. Every form of liability for direct, special or consequential damages or loss is expressly excluded and denied. In
no case shall Graco’s liability exceed the amount of the purchase price. Any action for breach of warranty must be brought within two (2) years of
the date of sale.
EQUIPMENT NOT COVERED BY GRACO WARRANTY
Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose, with respect to accesso-
ries, equipment, materials, or components sold but not manufactured by Graco. These items sold, but not manufactured by Graco (such as electric
motor, switches, hose, etc.) are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in
making any claim for breach of these warranties.
Sales Offices: Atlanta, Chicago, Dallas, Detroit, Los Angeles, Mt. Arlington (N.J.)
Foreign Offices: Canada; England; Korea; Switzerland; France; Germany; Hong Kong; Japan
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
PRINTED IN U.S.A. 308–548 1/95, Revised September 1996
