Rear panel, 1 subwoofer output, 2 video out – GoVideo DHT7000 User Manual
Page 12: 3 optical output, 4 s-video output, 5 am antenna input, 6 video 1 input, 7 video 2 input, 8 video 2 output, 9 speaker outputs (rs, r, c, sub, l, ls)
6
DHT7000 Home Theater System

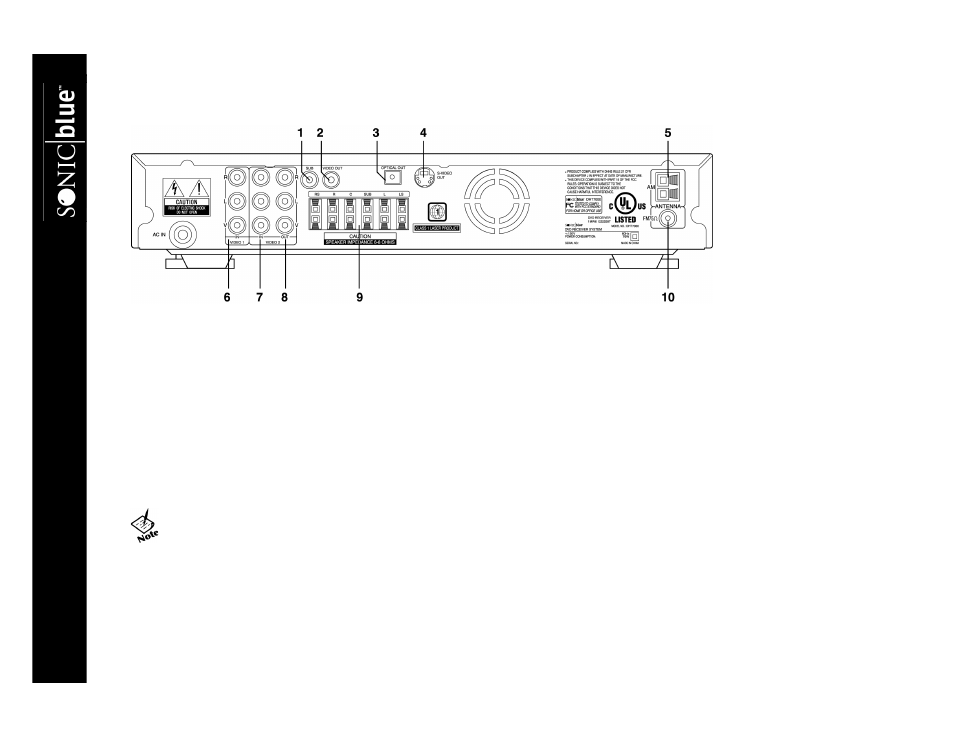

Rear Panel
1 Subwoofer Output
Analog Low Frequency Effect (LFE) Output
2 Video Out
Composite Video Output
3 Optical Output
Optical Digital Audio Output
4 S-Video Output
S-Video Output
5 AM Antenna Input
AM Antenna Block Terminals
6 Video 1 Input
Composite Video/Stereo Audio Input
7 Video 2 Input
Composite Video/Stereo Audio Input
8 Video 2 Output
Composite Video/Stereo Audio Output
9 Speaker Outputs (RS, R, C, SUB, L, LS)
5.1 Channel Speaker Outputs (Right Surround, Right, Center, Subwoofer,
Left, Left Surround)
10 FM75
Ω
Antenna Input
FM Antenna Coaxial Socket
• Please continue with Chapter 2 to connect your DVD system.
