Introduction
8 309298J

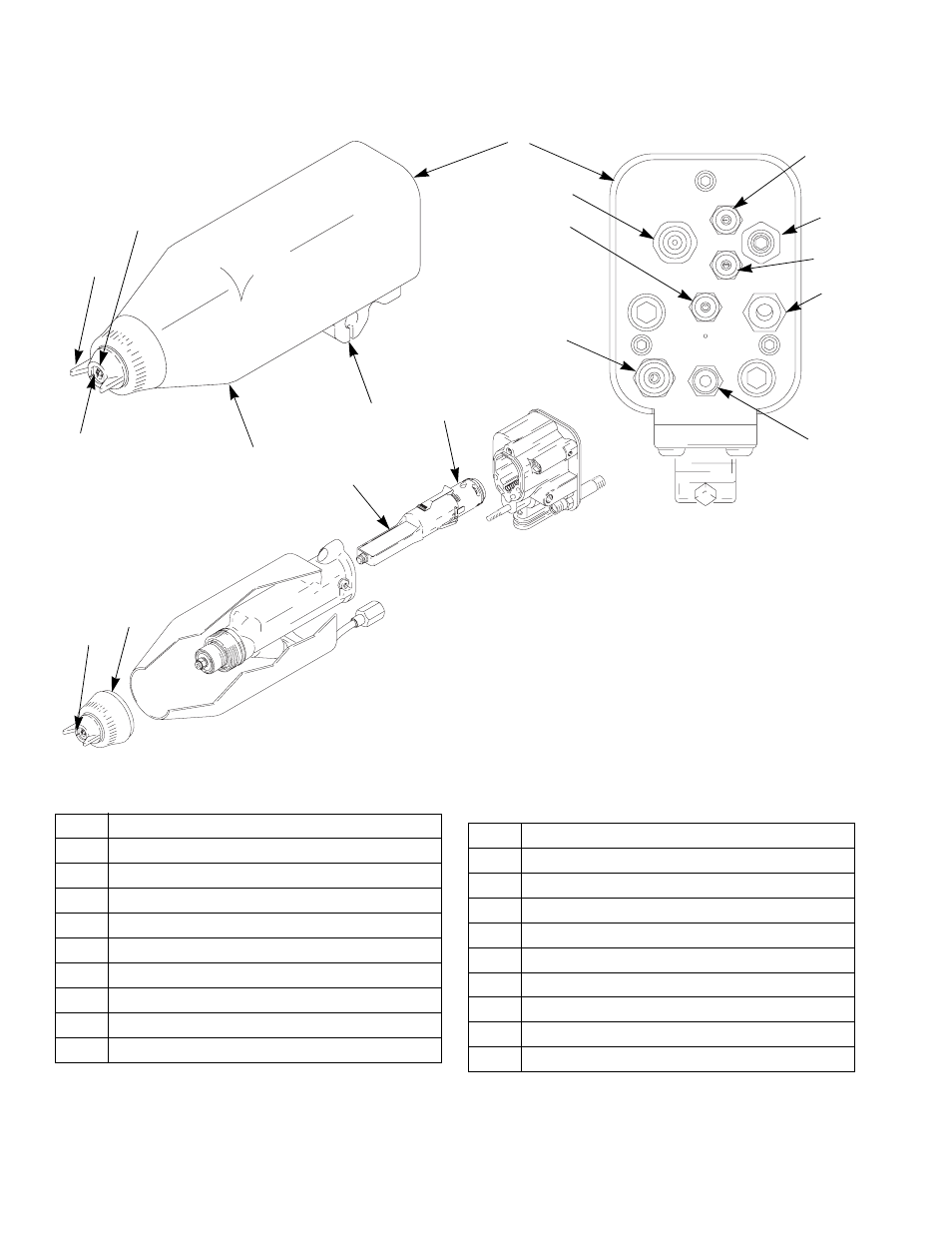

Fig. 1. Gun Overview
Key
TI1739A
TI1714A
TI1713A
Manifold Back View
C
B
D
E
F
G
H
J
K
A2
CYL
EXH
FO
KV2
P1
TA
KV1
A
A Air Cap
B Spray Tip
C Tip Guard
D Retaining Ring
E Shroud
F Mounting Bracket
G Manifold
H Turbine
J Power Supply
K Electrode
Manifold Markings
A1 not used
A2 Atomization Air Inlet Fitting
CYL Cylinder Air Inlet Fitting
EXH Shroud Exhaust Outlet Fitting
FO Fiber Optic Fitting
KV1 kV Switch 1 Air Inlet
KV2 kV Switch 2 Air Inlet
P1 Fluid Supply Inlet Fitting
P2 not used
TA Turbine Air Inlet Fitting
