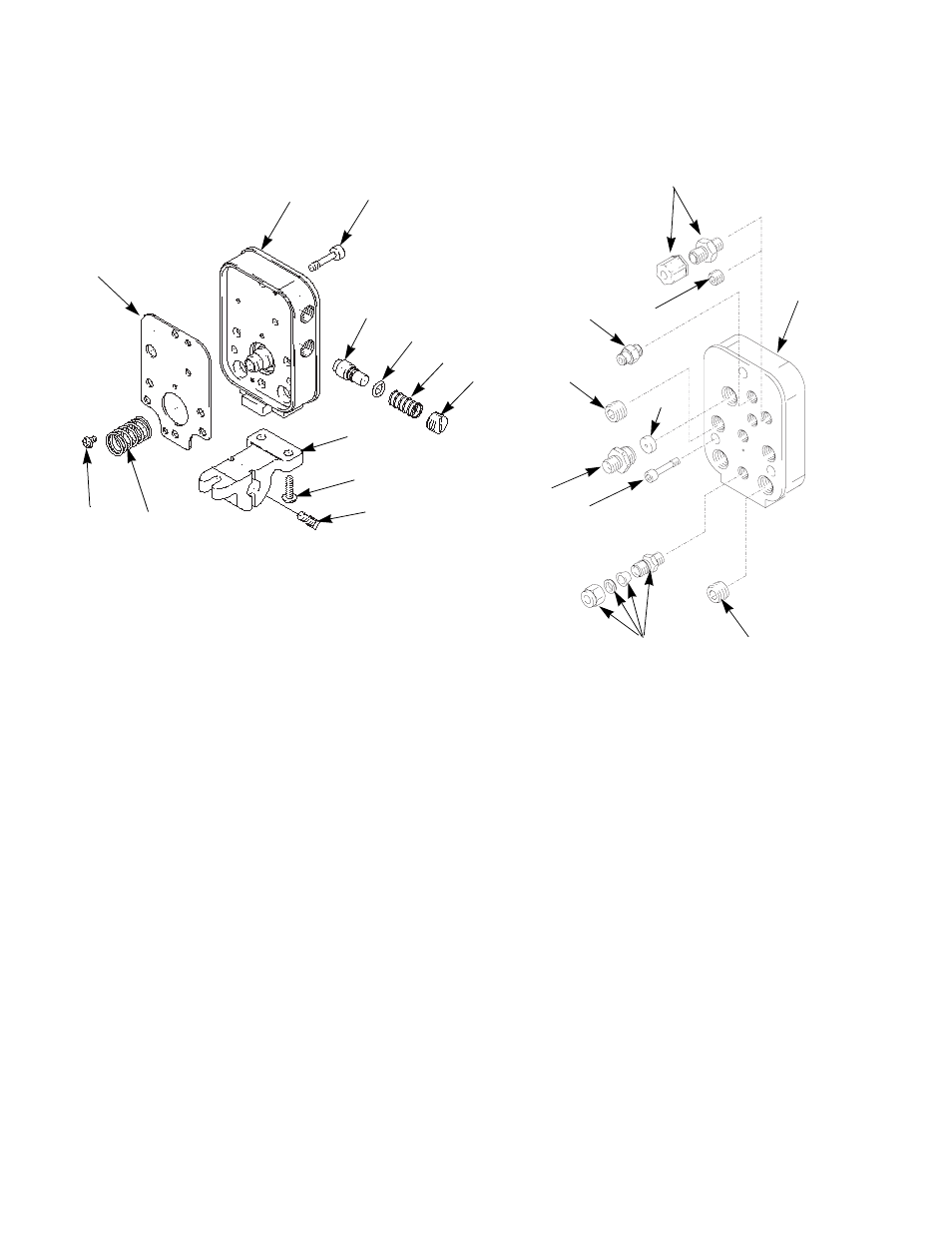

Part No. 244843 Manifold, Series A, for standard and high conductivity coatings
† Included in repair kit 15D592.
TI1582A
TI1740A
101
101 (Ref)
102
103
104
105
106 (Ref)
107
106
110
119
114
112
117
113
116
116a
120
108
115
5 (see page 49)
110
Ref.
No.
Part No. Description Qty
101 198220 MANIFOLD 1
102 189581 BRACKET, reciprocator 1
103 110465 SCREW, set 2
104 112689 SCREW, button-hd 2
105 112640 SPRING, compression 1
106 197518 SCREW; socket-hd; 10-24 x 3/4
in. (19 mm) 3
107 111157 FITTING, tube 1
108 186845 FITTING, turbine 1
109 110078 FITTING, tube 2
110 112646 PLUG 1
112† 197925 GASKET, manifold 1
113 108290 SCREW, machine 2
114 189365 CAP, kV, HI/LO 2
115 198764 RESTRICTOR 1
116 244772 PISTON; includes 116a 2
116a† 112085 . O-RING 1
117 114263 FITTING, connector 3
119 116621 SPRING, compression 2
120 112645 PLUG 1
Ref.
No.
Part No. Description Qty
